Diesel Power 400m Crawler mounted Air DTH Drilling Machine

I'm Online Chat Now

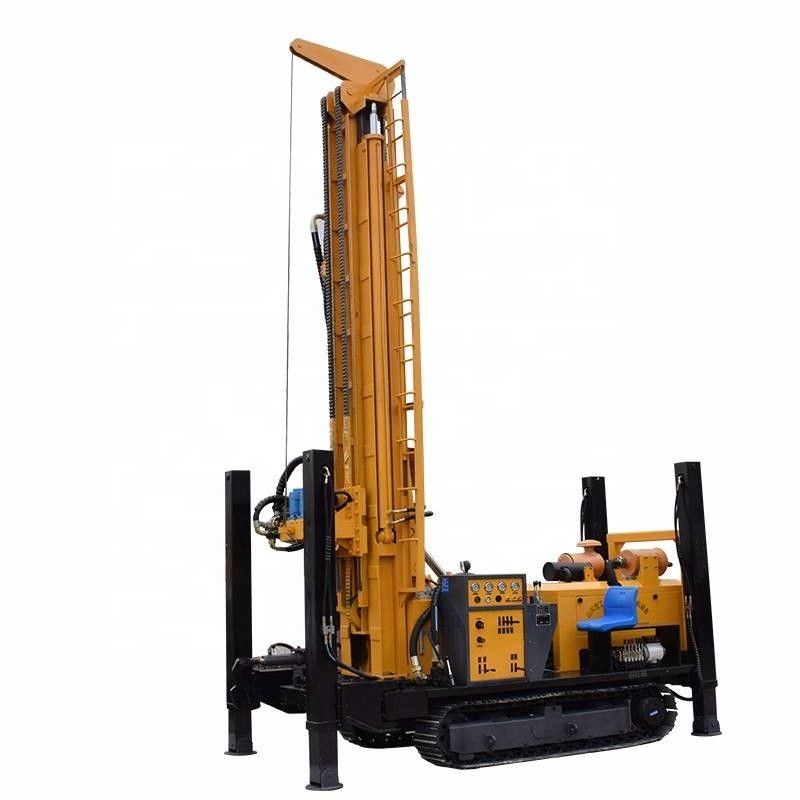

Diesel Power 400m Crawler mounted Air DTH Drilling Machine

Diesel Power 400m Crawler mounted Air DTH Drilling Machine
Diesel Power 400m Crawler mounted Air DTH Drilling Machine Diesel Power 400m Crawler mounted Air DTH Drilling Machine

Large Image :  Diesel Power 400m Crawler mounted Air DTH Drilling Machine

Product Details:

Place of Origin: CHINA
Brand Name: OEM
Certification: ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden cases standard export package
Delivery Time: 10-20 days working days
Payment Terms: T/T, L/C, T/T, Western Union
Supply Ability: Based on the detailed quotation
Detailed Product Description
Type: Down The Hole Drilling Machine Power Type: Diesel
Usage: Water Well Voltage: 380V
Dimension(L*W*H): 5900x2100x2850mm Weight: 10T
Core Components: Engine Key Selling Points: Energy Saving
Model No: FY400 Drilling Diameter: 140-350mm
Working Pressure: 1.7-3.5MPa Drilling Depth: 400m
Size: 5900X2100X2850 Mm Applicable Industries: Building Material Shops, Farms, Construction Works , Energy & Mining
Swing Speed: 45-115rpm Rotation Torque: 6500-9000N.m
Lifting Power: 25T Drill Rod Length: 1.5 2.0 3.0 6.0
Monitor Rate: 92Kw
High Light:

400m Down The Hole Drill Rig

,

Crawler DTH Drilling Equipment

,

Water Well DTH Drilling Rig

Diesel Power 400m Crawler Mounted Air DTH Drilling Machine





Product Description



FY400 multifunctional crawler mounted well drill is a new,highly-effective ,energy-saving and multifunctional hydraulic drill and it is specialized in drilling well ,monitoring well, geothermal air-conditioning hole,grouting hole of the hydropower cofferdam,grouting hole for dyke seepage control and grouting hole for base enforcement ,surface mining ,anchorage .national defense project and other drilling operations;The drill rig is equipped with hydraulic motor rotation with a high power,propulsion and lifting of cylinder and down-hole impacter with high blast pressure,to realize high effectiveness of drilling footage and lowenergy consumption.



Main Features



1) Simple structure in linear type , easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization, no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .



Size Information



Model

FY350

FY400

FY500

FY600

FY800

Total Weight (kg)

9000

10000

11500

12000

13000

Dimension (mm)

5900*2000*2850

5900*2100*2850

6200*2200*2950

6000*2200*2850

6100*2100*2900

Hole diameter (mm)

140-325

140-350

140-350

140-350

140-500

Hole depth (m)

350

400

500

600

700

Disposable drilling depth (mm)

6600

6600

6600

6600

6600

Walking speed (km / h)

2.5

2.5

2.5

2.5

2.5

Climbing ability (Max.)

30

30

30

30

30

Working pressure (Mpa)

1.7-3.3

1.7-3.5

1.7-3.5

1.7-3.5

1.7-3.5

Air consumption (m3 / min)

17-35

17-35

17-42

17-42

17-35

Matching power (kw)

84

92

118

132

140

Rotational speed (rpm)

55-115

45-115

40-100

45-115

55-115

Lifting force (Ton)

24

25

26

28

30

Rotational torque (N.M)

6200-8500

6500-9000

7500-10000

8500-11000

08660-1115

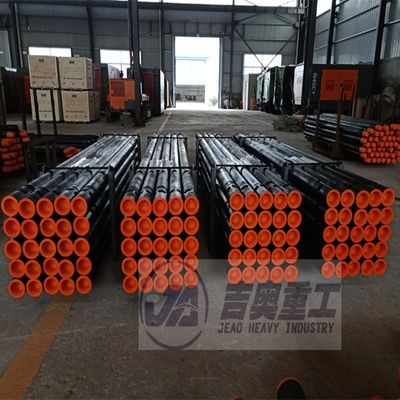

Drill Rod Size(mm)

Φ76 Φ89 Φ102

Φ89 Φ102

Φ102 Φ108 ,Φ114

Drill Length(M)

1.5 2.0, 3.0, 6.0
