300m Borehole Mining Water Well DTH Drilling Machine

Brand Name:	OEM
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	Based on the detailed quotation

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,CE

Product Name:

DTH Drilling Rig

Applicable Industries:

Energy & Mining, Water Well Drilling

Condition:

New

Power Type:

Diesel

Usage:

Water Well

Voltage:

1.7-3.3Mpa

Dimension(L*W*H):

5900*2000*2850mm

Weight:

9000KG

Warranty:

2 Year

After-sales Service Provided:

Engineers Available To Service Machinery Overseas, Video Technical Support, Free Spare Parts, Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service

Packaging Details:

Wooden cases standard export package

Supply Ability:

Based on the detailed quotation

Highlight:

30m DTH Drilling Machine

Water Well DTH Drilling Machine

Water Well

Product Description

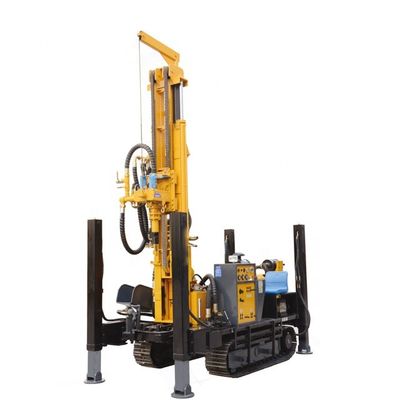

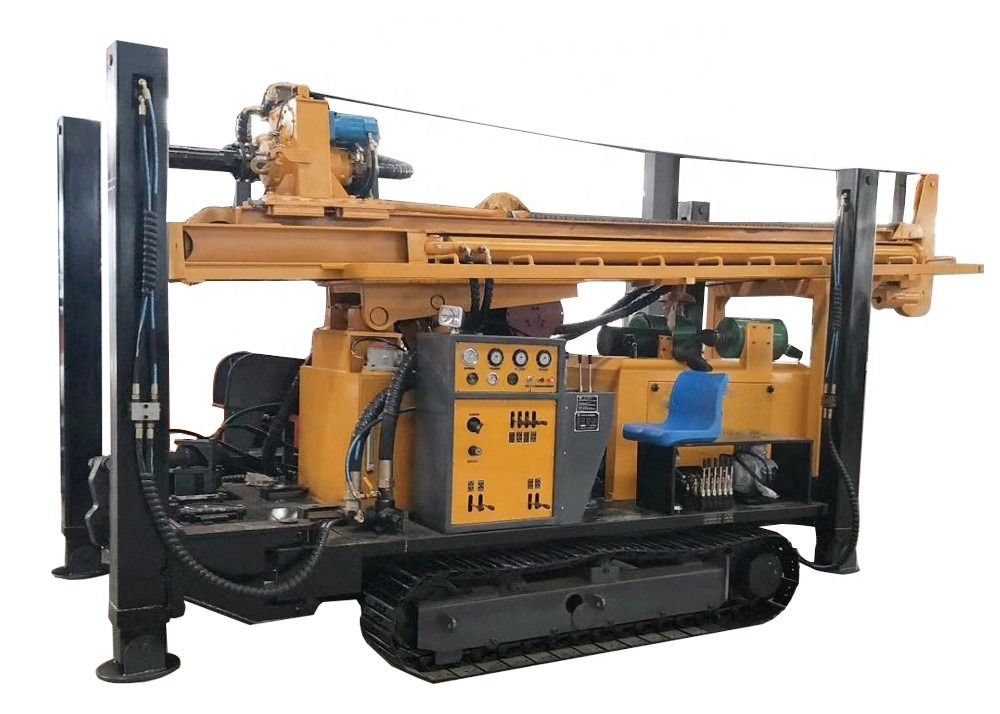

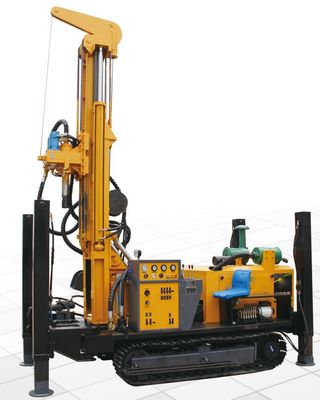

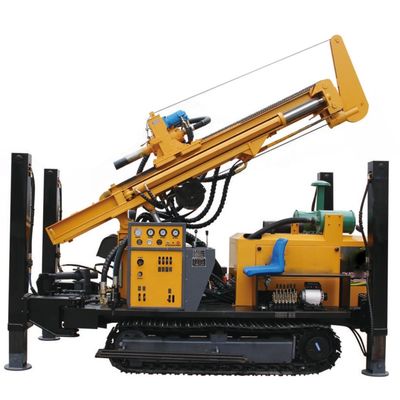

300m Borehole Mining Water Well DTH Drilling Machine

Product Description

Drill rig specification
Drilling depth	300m
Drilling Diameter	140-325mm
Drilling rod diameter	89mm/102mm
Drilling rod length	1.5m, 2m, 3m, 6m
One-time propulsion length	6600mm
Dimensions(L×W×H)	590020002850mm
Weight	9000KG
Walking speed	2.5KM/h
Standalone climbing ability	30 Max.
Working Pressure	1.7-3.3Mpa
Rig lifting force	20T
Host Power	84KW
Air consumption	17-35m³/min
Rotary Torque	6200-8500 N.M
Rotational speed	55-155rpm
