Hudraulic 300m DTH Drilling Rig Machine For Water Well

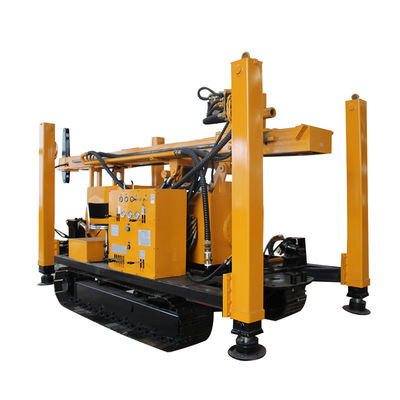

Large Image : Hudraulic 300m DTH Drilling Rig Machine For Water Well

Product Details:

Place of Origin:	CHINA
Brand Name:	OEM
Certification:	ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Wooden cases standard export package
Delivery Time:	10-20 days working days
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	Based on the detailed quotation

Contact Now

Detailed Product Description

Type:	Down The Hole Drill Rig	Power Type:	Diesel
Usage:	Water Well	Voltage:	380V
Dimension(LWH):	6.1m2.16m2.65m	Weight:	7800kg
Applicable Industries:	Hotels, Manufacturing Plant, Farms, Home Use, Retail	Core Components:	Motor, Pressure Vessel, Pump, Gear, Bearing, Engine, Gearbox
Key Selling Points:	Easy To Operate	Name:	Dth Driling Rig Drilling Machine For Water Well
Application:	Water Well Drilling/ Core Drilling	Drilling Depth:	200m-300m
Drill Bit:	115-254mm	DTH Hammer:	DHD360
Air Consumption:	16-30 M3/min	Pushing Capacity:	35KN
Lifting Capacity:	75KN	Rotation Speed:	17-22rmp
Rotation Torque:	5500N.m
Highlight:	300m DTH Drilling Rig , DTH Drilling Rig Machine , Down The Hole Drilling Machine

Hudraulic 300m DTH Drilling Rig Machine For Water Well

Main Features

1. Drills up to 200-300m deep, 250-350mm diameter, crawler mounted.

2. Can work with Air compressor OR Mud pump.

3. Fully hudraulic system, work with air compressor.

3. Drill fast in soft earth and in hard rock earth..

4. Mainly used for water well drilling,earth sample taking, mining exploration, rock falling fence, etc,

Product Application

water well DRILLING for farm irrigation, fresh water drinking, and any where need fresh water.

SPECIFICATIONS FOR air rotary drilling rig
Model	YT100	YT200
Drill depth	120m	200m
Drill diameter	115-254mm	1.05-2.45Mpa
Drill rod length	1.5m	3m
Diesel engine	37KW/2400RMP	76KW/2400RMP
Air consumption	16-30M3/Min	16-30M3/Min
DTH Hammer	DHD360	16-30M3/Min
Air pressure	1.05-2.45Mpa	1.05-2.45Mpa
Pushing capacity	27KN	35KN
Lifting capacity	40KN	75KN
Rotation speed	22-177RMP	22-177RMP
Rotation torque	3500N.M	5500N.M
distance from ground	250mm	22-177RMP
Climbing angle	20degree	20degree
Machine Size	3m1.2m2m	5.3m2.1m2.5m
Weight	1800kg	6000kg
Walking speed	2KM/Hour	20degree
