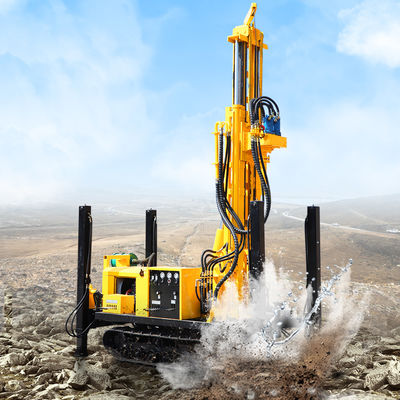

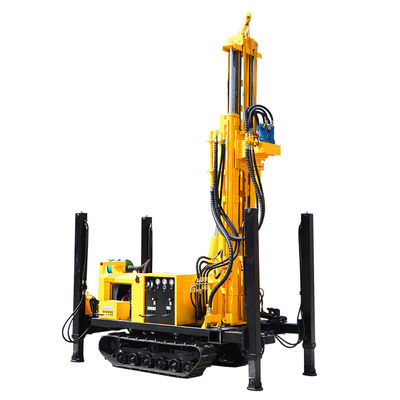

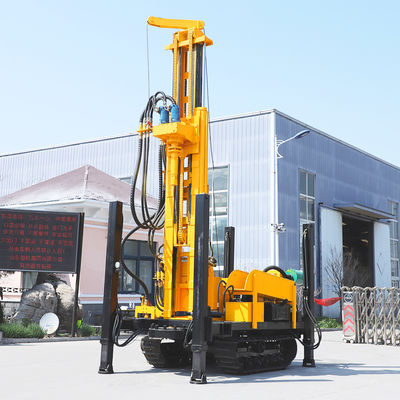

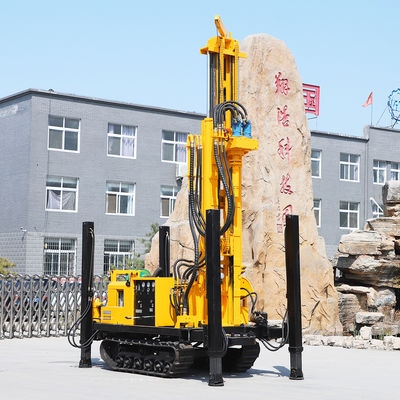

200m HWZ Hydraulic Crawler DTH Drilling Rig Machine

Large Image : 200m HWZ Hydraulic Crawler DTH Drilling Rig Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	OEM
Certification:	ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Wooden cases standard export package
Delivery Time:	10-20 days working days
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	Based on the detailed quotation

Contact Now

Detailed Product Description

Key Selling Points:	Competitive Price	Applicable Industries:	Energy & Mining
Type:	Rotary Drilling Rig	Power Type:	Diesel
Usage:	Water Well	Voltage:	380V
Dimension(LWH):	340015002400	Weight:	3500kg
Core Components:	Pressure Vessel	Product Name:	DTH Drilling Machine
Drilling Depth:	150m	Drilling Diameter:	130-219mm
Engine:	Disel Engine	Drill Rod Length:	1.5m
Feature:	High Drilling Efficiency	Air Consumption:	18m3
Walk Speed:	0-2.5kw/h	Motor Power:	42kw
Highlight:	200m Down The Hole Drilling Equipment , DTH Drilling Rig Machine , Hydraulic Crawler DTH Drilling Equipment

200m HWZ Hydraulic Crawler DTH Drilling Rig Machine

Main Features

1: These DTH drilling rig three major components, host, pump station, console.

2: These DTH drilling rig are small size, light weight, easy to install.

3: rig layout flexible, mechanized twist drill pipe, reduce labor intensity, improve work efficiency.

4: In the original transport, prospecting roadway can be put into production, the overall structure of the mine play a protective role. These DTH drilling rig can also be used for surface 0-90 degree drilling.

5: with a linkage function, through the console centralized control, simple and safe, stepless speed.

6: the use of box-type to the rack, the holder to tighten, power head rotary drilling, cylinder pull drilling tools, Save the bulky rig.

7: hollow shaft design, drill pipe length is not limited by drilling rig. Can be drilled at any angle of 360 °.

8: disintegration is good, easy to move and transport. Φ33-Φ43 drill pipe can be used with the machine, the replacement only 15 minutes. .

Product Description

HWZ hydraulic down-hole drilling rig is a multi-functional drill rig driven by internal combustion engine, the drilling power was provided by hydraulic system except for impacting and the hole cleaning wind. It is convenient and efficient to operate. This drill is the best replacement for traditional pneumatic drills in most operation. The drill is compact in structure, simple in operation, light in total weight. HWQ hydraulic crawler drilling rig is widely used for blast-hole drilling in the mines and quarries. It is also used for anchor in road, railway, power station, civil engineering and building etc.

Model	HWZ150L	HWZ260L	HWZ300L	HWZ400L	HWZ500L
Overall weight (T)	3.5	6.4	8	8.7	9.5

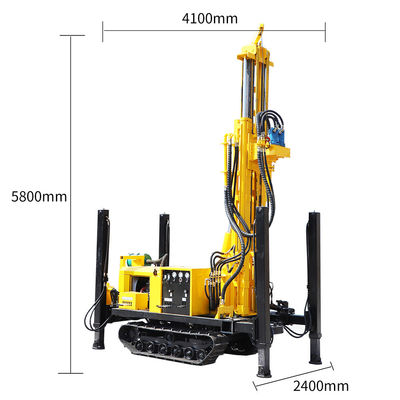

Dimension (mm )	340015002400	410019002600	550019502780	530020502700	535021002700
Drilling diameter(mm )	130-219	140-300	140-325	130-400	140-400
Drilling depth(m)	150	260	300	400	500
One-time advance length of the drill(mm)	3000	3000	3000/6000	3000/6000	3000/6000
Traveling speed(km/h )	2.5	2.5	2.5	6	6
Climbing ability(max )	25	30	30	25	25
Minimum Ground Clearance(mm)	250	250	230	300	350
Working Air Pressure(mpa )	1.45 - 2.5	1.7-3.0	1.7-3.3	1.7-3.5	1.7-3.5
Air consumption	15 - 27	17-35	23	17-35	17-35
Main machine power(kw)	42 /Yunnei	85/Yuchai	92/Yuchai	100/6 cylinder	114/6 cylinder
Rotary Speed (rpm)	38 - 80	40-70	55-115	45-75	45 - 75
Rotary torque(Nm )	4000-5000	7000-9000	8500-10000	9000-10000	9500-10000
