Rotary 30m Hydraulic DTH Drilling Machine For Mining

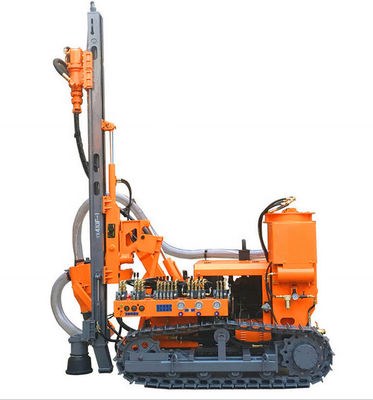

Large Image : Rotary 30m Hydraulic DTH Drilling Machine For Mining

Product Details:

Place of Origin:	CHINA
Brand Name:	OEM
Certification:	ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Wooden cases standard export package
Delivery Time:	10-20 days working days
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	Based on the detailed quotation

Contact Now

Detailed Product Description

Power Type:	Diesel	Usage:	Mining
Voltage:	380V	Dimension(LWH):	490020002200mm
Weight:	4000	Color:	Yellow Red
Drilling Diameter:	90-110mm	Applicable Industries:	Construction Works , Energy & Mining
Engine:	60kw	Drilling Bit:	90-110mm
Drillingh Deep:	30	DrillIng Pipe:	2m
Highlight:	Construction Hydraulic Rotary Rig , 30m DTH Rig Machine , DTH Hydraulic Rotary Drilling Rig

Rotary 30m Hydraulic DTH Drilling Machine For Mining

Product Description

BTYX410F drilling rig operation platform, tramming components, hydraulic system , feed beam & rotary head are upgraded from the original 410C to optimize the functional capability of the drilling rig. Piston tramming motor greatly increases the work life of tramming mechanism, Upgraded operation platform can be controlled by one operator instead of two, to increase the work efficiency while lowering drilling cost.

BTYX410F Separate Down The Hole Drilling Rig
Hole Range
F.A.D	m3/min	7-13
Pipe type	m	stardard 60x2m
Hole Range	mm	90-110
Rotary Head
Rotation torque	N.m	1650
Rotation speed	r/min	0-120
Feed
Feed force	KN	15
Pull up force	Kn	25
Feed type		Chain/cylinder
Tramming
Tramming speed (Max.)	km/h	2.5
Gradient		25
Weight	Kg	3800
Dimension	mm	4900x2000x2200
