Water Well Rotary Drilling Rig Machine

Brand Name:	OEM
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	Based on the detailed quotation

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,CE

Type:

Rotary Drilling Rig

Power Type:

Diesel

Usage:

Ore

Voltage:

220/380V Or Customized

Power:

30-58 KW

Dimension(L*W*H):

2700*1550*2350 Mm

Weight:

4500KGS

Diameter Of Hole:

110-202 Mm

Optium Drilling Depth:

180 M

Rotation Speed:

33-67r/min

Rotation Torque:

4200N

Lifting Power:

50000N

Feed Distance:

25000mm

Sliding Carriage Pitch Angle:

Engine Model:

YC4D08

Working Air Pressure:

1.05-2.46 MPa

Air Consumption:

16-30m3/min

Packaging Details:

Wooden cases standard export package

Supply Ability:

Based on the detailed quotation

Highlight:

Water Well Rotary Drilling Rig

Rotary Drilling Rig Machine

180m Rotary Drilling Machine

Product Description

Excellent Quality KW180 New Diesel Underground Water Well Rotary Drilling Rig/Machine For Sale

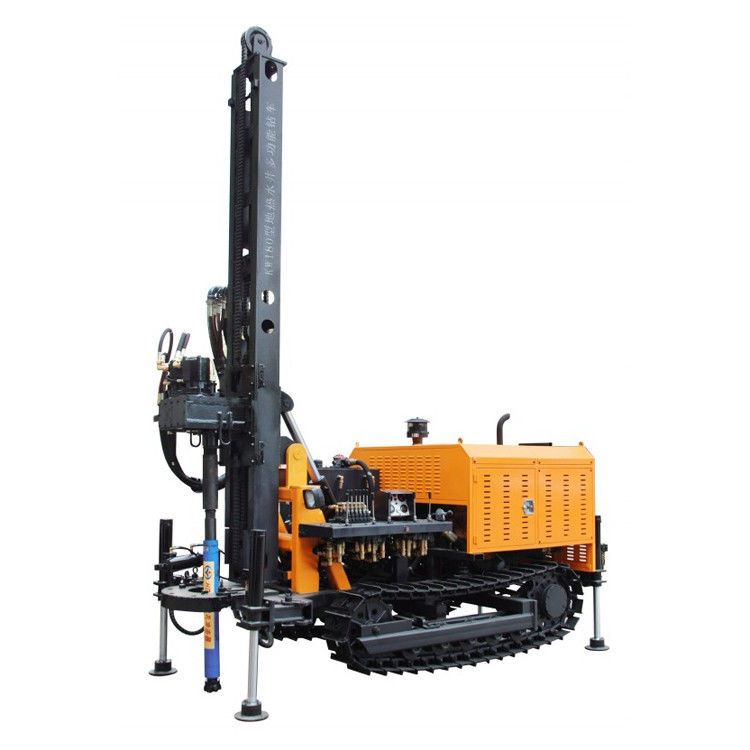

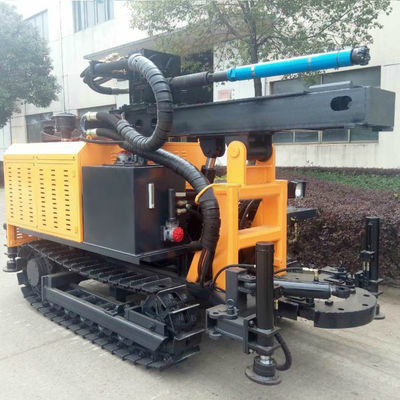

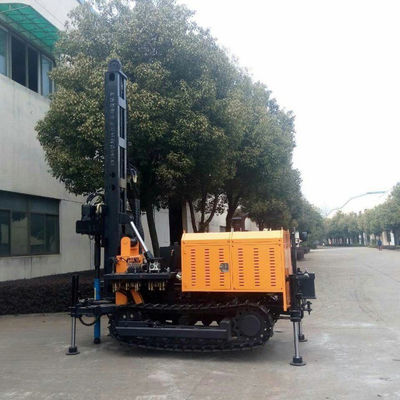

Product Display

Drilling rig KW180 type geothermal well drilling car is a lightweight, high efficiency, multifunctional drilling hole equipment, Has the advanced structure, easy to use, high efficiency, reliable, durable and other characteristics, widely used in drilling Wells, agricultural irrigation and air hole and other USES of geothermal well hole Especially in the mountains and rock formation water engineering.

Product Features

1. Dual motor rotating mechanism

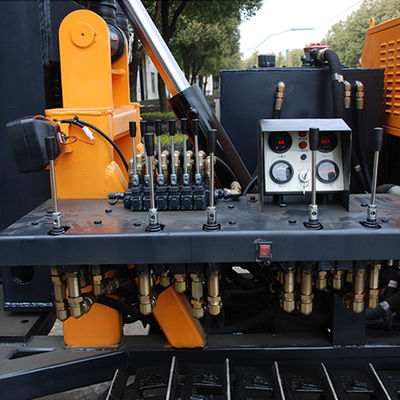

2. Centralized operating system

3. Double cylinder propulsion system

4. Latest hydraulic technology, assorting with the high torque rotary hydraulic motor and the large diameter hydraulic cylinder propulsion, greatly reduce the labor intensity, shorten the auxiliary time, improve the efficiency of construction and engineering quality

5. stable traveling system

6. Triple pump assemble

Technical Parameters

KW180 water well drilling rig
Model		KW180
Weight(Kg)		4500
Dimensions(mm)		2700×1550×2350
Traveling speed(Km/h)		0~2.5
Engine model		YC4D08
Power		58Kw/2400rpm
Climb capacity(°)		20
Drilling depth(m)		180
Working pressure(MPa)		1.05-2.46
Air consumption(m3/min)		16-30
Length of rod(mm)		2000
Drill bit diameter(mm)		φ110-202
Feed cylinder stroke(mm)		400
Feed power(N)		25000
Lift power(N)		50000
Speed of rotator(rpm)	Min.speed	33
	Max.speed	67
Lifting speed(m/min)	Min.speed	8
	Max.speed	26
Forcing speed(m/min)	Min.speed	0-15
	Max.speed	51
Rotation torque(N·m)		4200

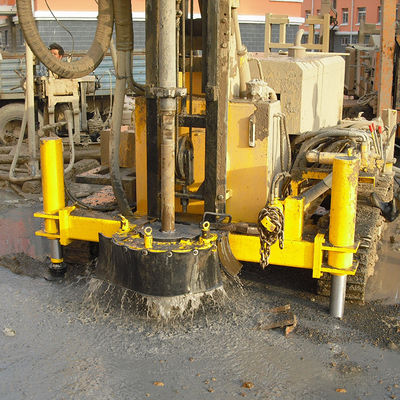

Actual Application

Water Well Rotary Drilling Rig Machine 0
