| Condition: | New | Type: | Rotary Drilling Rig |
|---|---|---|---|
| Power Type: | Diesel | Usage: | Water Well |
| Voltage: | 220V/380V | Dimension(L*W*H): | 8500*2250*3000mm |
| Weight: | 11500kg | Color: | Yellow |
| Max. Drilling Depth: | 500m | Max. Diameter Of Work Floor: | 400mm |
| Speed: | 0~63r/m | Internal Diameter: | 55mm |
| Max Lifting Speed: | 30m/min | Max Feeding Speed: | 60m/min |
| High Light: | Hydraulic Water Well Drilling Rig,Crawler Mounted Drill Rig,Hydraulic Rotary Drilling Rig |
||

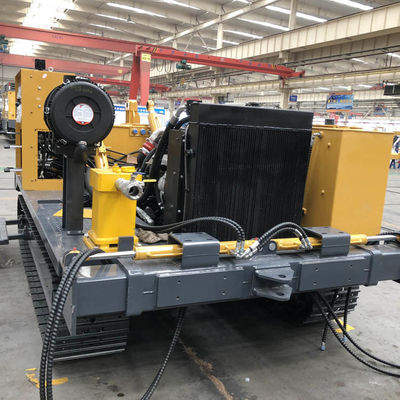

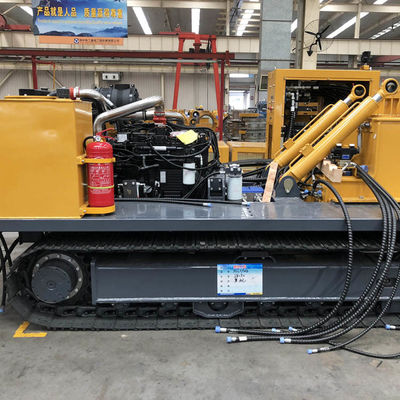

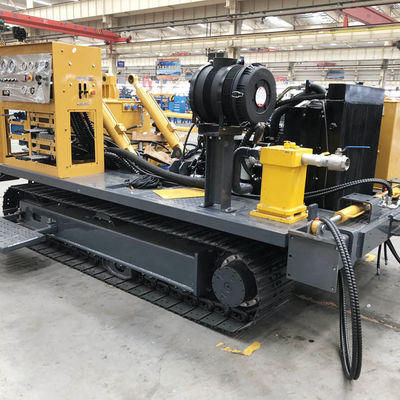

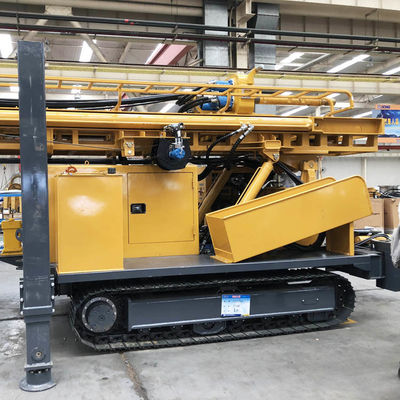

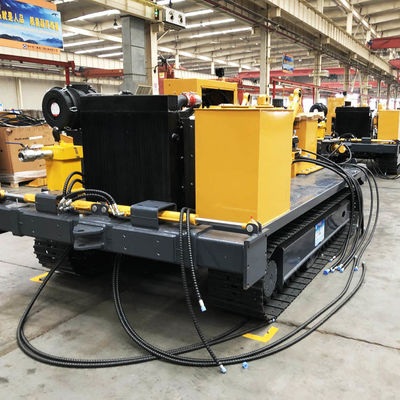

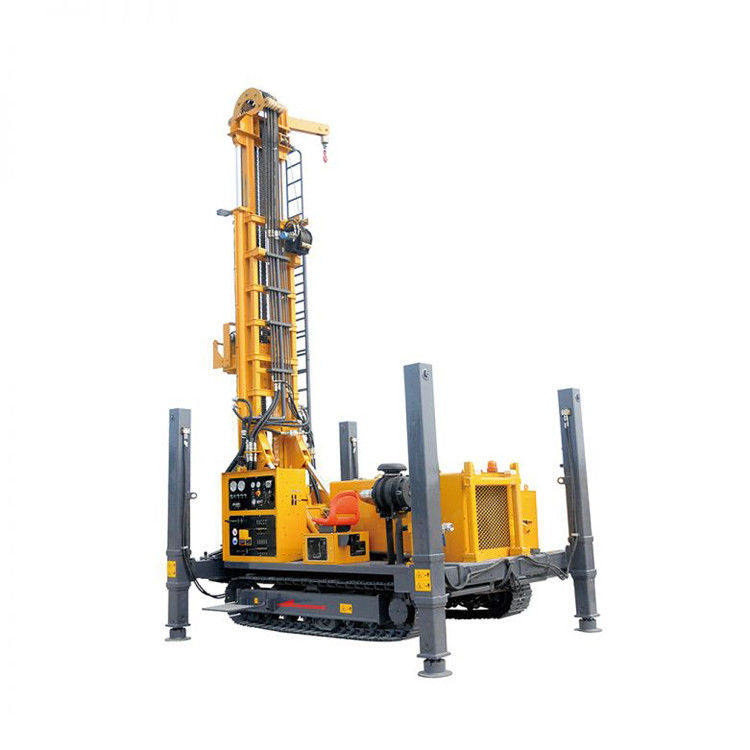

Crawler Mounted Hydraulic Rotary Water Well Drilling Rigs
XSC(L) series deep(water) well drilling rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.
Reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with good maneuverability.
Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitationor salvage work.
| Parameter | XSL5/260 | ||
| Drilling capability | Drilling depth | m | 500( Ø89) |
| Max. diameter of work floor | mm | 400 | |
| Feeding system | Max. lifting capacity | kN | 260 |
| Max. feeding capacity | kN | 100 | |
| Max. lifting speed | m/m in | 25 | |
| Max. feeding speed | m/m in | 36 | |
| Stroke | mm | 5000 | |
| Top drive | Max.torque | N • m | 9200 |
| Speed | r/min | 0-130 | |
| I.D | mm | 55 | |
| Floating distance | mm | 70 | |
| Max. tilting angle | o | / | |
| Deck engine | Type | CUMINS 6BTAA5.9-C150 | |
| Rated power | kW | 112 | |
| Tool winch | Hoisting capacity | kN | 15 |
| Max. speed | m/m in | 30 | |
| Breakout device | Max. breakout torque | N • m | 25000 |
| Vise clamping range | mm | Customized | |
| Mud pump | Max. flow | L/min | / |
| Max. pressure | Mpa | / | |
| Foam pump | Rate of flow | L/min | / |
| Rated pressure | Mpa | / | |
| Mud pipe | Internal diameter | mm | 55 |
| Pressure | Mpa | 15 | |
| Chassis | Drive mode | Crawler chassis | |
| Engine type | / | ||
| Rated power | kW | / | |
| Highest speed | km/h | 2.5 | |
| Max. climbing gradient | % | 45 | |
| Working dimension | mm | 4500x2250x8500 | |
| Transportation dimension | mm | 8500x2250x3000 | |
| Weight | t | 11.5 | |
