Diesel Power 30m Water Well Rotary Drilling Machine

Diesel Power 30m Water Well Rotary Drilling Machine

Diesel Power 30m Water Well Rotary Drilling Machine

Brand Name:	OEM
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	Based on the detailed quotation

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,CE

Type:

Rotary Drilling Rig Machine

Power Type:

Diesel

Usage:

Ore

Voltage:

Diesel Engine Driven

Dimension(L*W*H):

4250*1980*2260mm

Weight:

3000 Kg

Core Components:

Motor, Pressure Vessel, Pump, PLC, Gear, Bearing

Drilling Rigs Depth:

30m

Applicable Industries:

Hotels, Garment Shops

Drill Rig Diameter:

90-165mm

Drill Rigs Working Air Pressur:

1.0-2.4Mpa

Drill Rig Rotation Speed:

0-120r/min

Packaging Details:

Wooden cases standard export package

Supply Ability:

Based on the detailed quotation

Highlight:

30m Hydraulic Rotary Rig

,

Rotary Well Drilling Rig

,

Rotary Drilling Rig Equipment

Product Description

Diesel Power 30m Water Well Rotary Drilling Machine

Parameters

Model (DTH drilling rigs )	HC725B0	HC725B1	HC725B2
Rock hardness	6~20	6~20	6~20
Hole diameter (mm)	83~105	83~105	83~115
Drill depth(m)	25	25	30
Climb ability	25°	25°	30°
Feeding mode	cylinder	cylinder	cylinder
Feeding stroke (m)	2	2	2
Max. Lifting force (kN)	12	12	15
Rotating torque (N·m)	1900	1900	2000
Rotating speed (r/min)	0~100	0~120	0~100
Working pressure(Mpa)	0.6~1.6	0.5~1.4	0.7~1.6
Air consumption(m3/min)	7~12	7~12	7~14
Power of engine(KW)	40	40	40
Drill boom-oscillation angle	Left32° Right17°	Left92°- Right12°	Left92° Right12°
Walking speed(km/h)	2	2	2
Distance off ground(mm)	300	300	300
Overall dimension(mm)	4250×1980×2260	4530×2100×2260	5400×2100×2250
Whole weight(kg)	3000	3200	4100
EXW Price(US $)	$9990	$10900	$12700

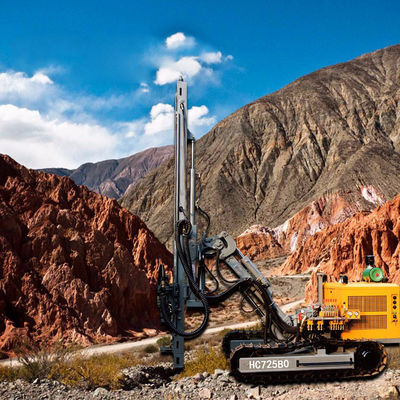

Diesel Power 30m Water Well Rotary Drilling Machine 1

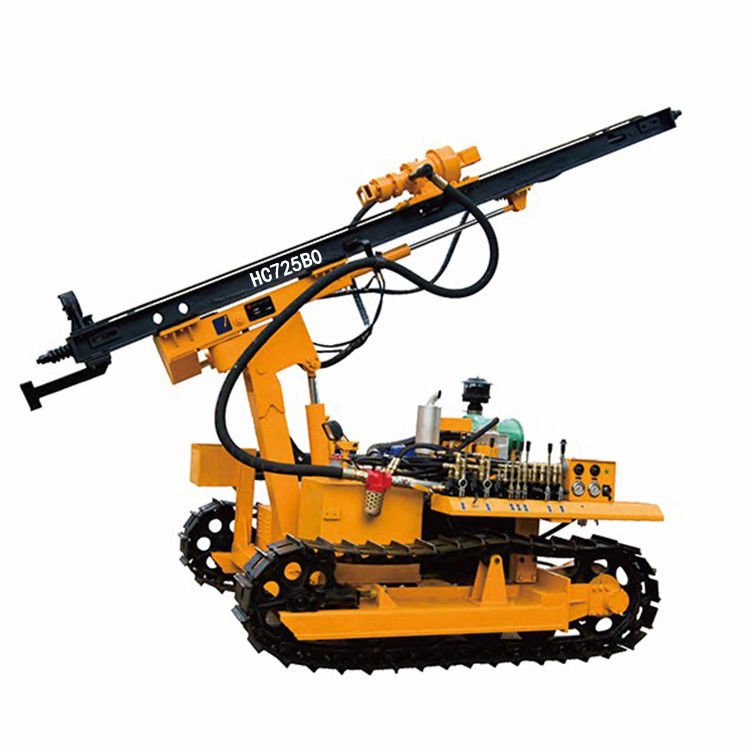

Diesel Power 30m Water Well Rotary Drilling Machine 2

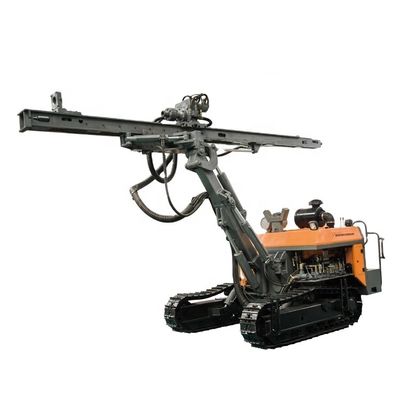

Diesel Power 30m Water Well Rotary Drilling Machine 3
