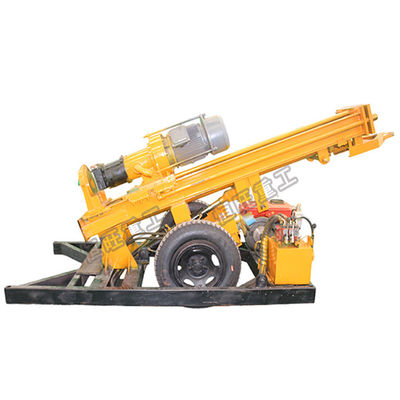

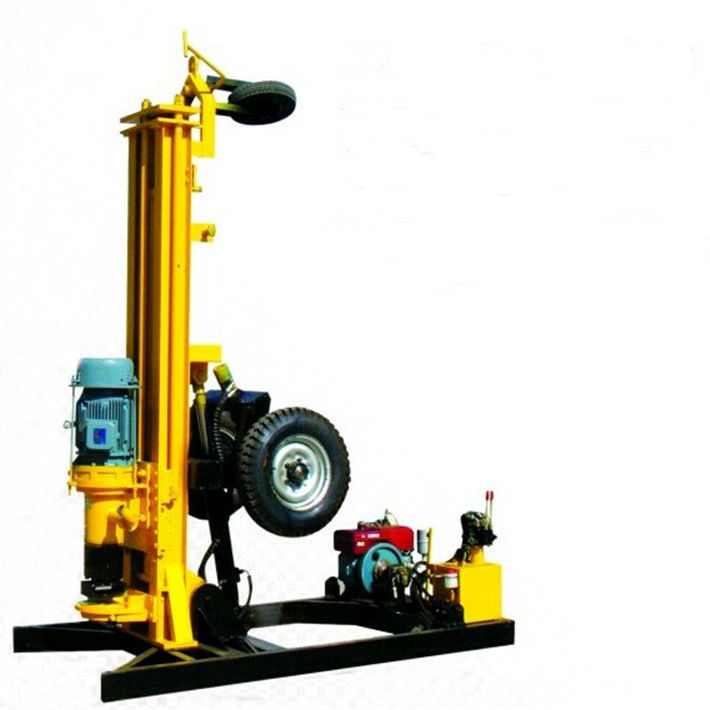

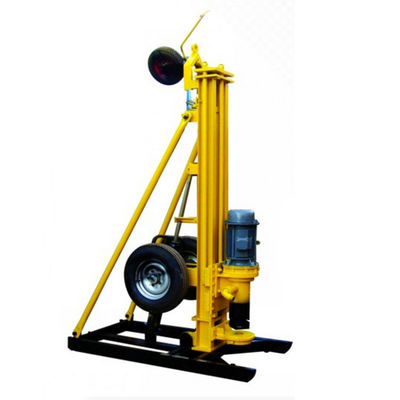

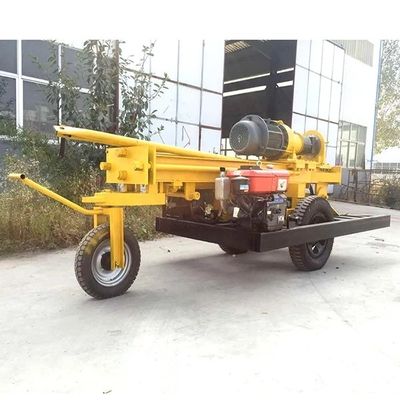

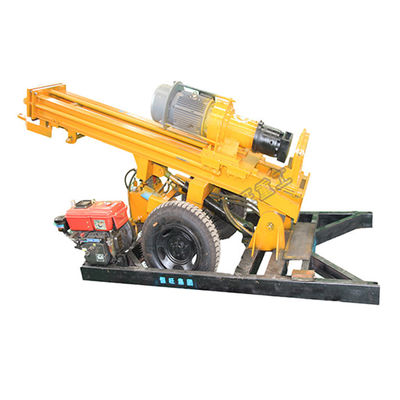

150m Depth Pneumatic Water Well Rotary Drilling Machine

Brand Name:	OEM
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	Based on the detailed quotation

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,CE

Type:

Rotary Drilling Rig

Power Type:

Diesel

Usage:

Water Well

Voltage:

Diesel Engine Driven

Dimension(L*W*H):

2500*1000*1300MM

Weight:

1300kg

Marketing Type:

New Product 2020

Applicable Industries:

Farms, Retail, Construction Works , Energy & Mining

Core Components:

Motor, Pump, Gear, Bearing, Engine, Gearbox

Drilling Hole Depth:

150m

Max Opening Diameter:

300mm

Final Hole Diameter:

75mm

Drilling Pipe Diameter:

73/76mm

Electric Power:

7.5kw

Vertical Spindle Speed:

64r/min

Vertical Strock:

1500mm

Drilling Tower Height:

1600M

Packaging Details:

Wooden cases standard export package

Supply Ability:

Based on the detailed quotation

Highlight:

Water Well Rotary Drilling Machine

150m Rotary Drilling Rig

Rotary Drilling Rig Machine

Product Description

150m Depth Pneumatic Water Well Rotary Drilling Machine

Product Description

Pneumatic drilling rig is used for drilling large blast hole. It's especially convenient to be used during the initial period of opencast working, other drill carriage unable to reach, unable to carry on the normal work.
1) Forward, turn, and the impact of all the air compressor as power, structure simple, power, relocation facilities.
2) In the single-top, double top, bearing top three supporting structures to choose, can adapt to any geological features.
3) Centralized control mechanism, easy to operate.

Product Paramenters

Rotary Drilling Machine
Model	HQZ150
Drilling depth	150	m
Drilling diameter	100-219	mm
Drilling angle	45-90	°
Advence length per time	1500	mm
Electirc motor power	7.5	kw
Drill swim speed	0-62	rpm
Air pressure	0.8-2.1	Mpa
Air consumption	13-21	m3/min
Total weight	1300	kg

Detailed Images

Air compressor drilling rig features:
1. High drilling efficiency, power provided by energy saving motor
2. High efficiency, large rotary torque
3. Simple structure and easy to move
4. Adopt consummate design, long service life
5. Easy to operating

150m Depth Pneumatic Water Well Rotary Drilling Machine 0
