Trailer Mounted Portable Water Well Drilling Rig Machine

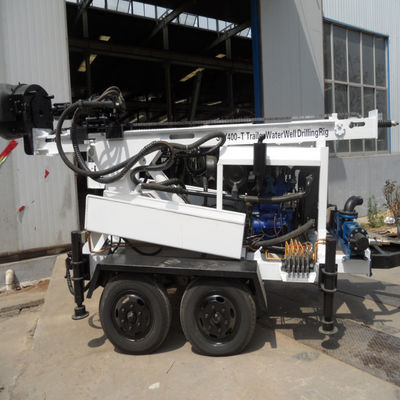

Large Image : Trailer Mounted Portable Water Well Drilling Rig Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	OEM
Certification:	ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Wooden cases standard export package
Delivery Time:	10-20 days working days
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	Based on the detailed quotation

Contact Now

Detailed Product Description

Type:	Hydraulic Core Drilling Rig	Power Type:	Diesel
Usage:	Water Well	Voltage:	380V
Dimension(LWH):	552021002200MM	Weight:	3.45TON
Application:	Water Well	Bore Diameter:	90-220mm
Bore Depth:	150mm	For Rock:	6-20F
Air Pressure:	1.2-2.46Mpa	Air Consumption:	11-25M3/MIN
Once Promotion:	2000mm	Maximum Height From The Ground:	320mm
Port:	QINGDAO PORT,TIANJIN PORT,SHANGHAI PORT,GUANGZHOU PORT
Highlight:	Rotary Drilling Rig Equipment , Trailer Mounted Rotary Drilling Machine , Water Well Drilling Rig Machine

Trailer Mounted Portable Water Well Drilling Rig Machine

Trailer mounted portable water well drill rig machine using rotary drilling method for sale is lightweight, efficient, multi-purpose drilling equipment, which can use air,foam,or mud rotary for percussive drilling according to different textures.Trailer mounted portable water well drill rig machine using rotary drilling method for sale is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration boreholes, in particular, in drilling hole for geothermal heating.Trailer mounted portable water well drill rig machine using rotary drilling method for sale can also meet the engineering basis for reinforcement, loose gravel drilling, rock formation drilling and a variety of engineering requirements.

Bore Diameter(mm)	90-220
Bore Depth(m)	150
For Rock(F)	6-20
Air Pressure (Mpa)	1.2-2.46
Air Consumption( m³/min)	11-25
Once Promotion( mm)	2000
Maximum Height From The Ground ( mm)	320
Rotation Speed(r/min)	0-70
Rotation Torque( NM)	2200
Host Power (KW)	45
Dimension(LWH)	552021002200
Weight( Kg)	3450
