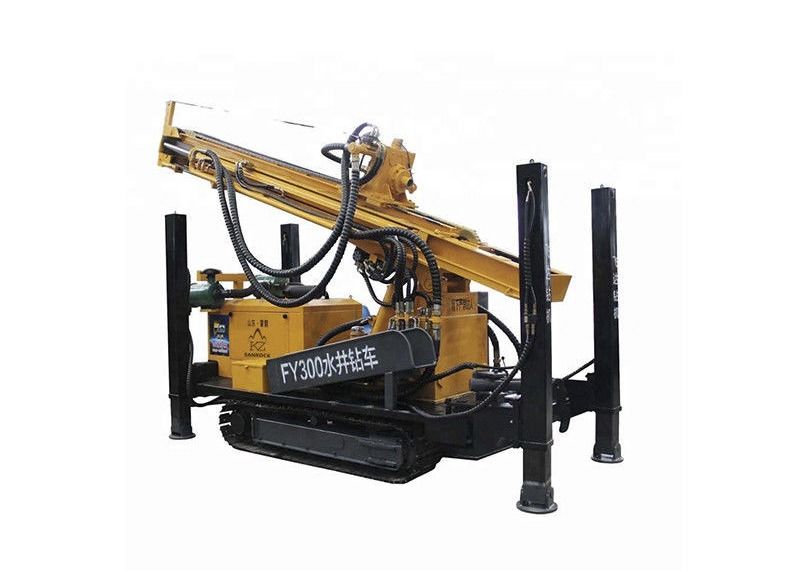

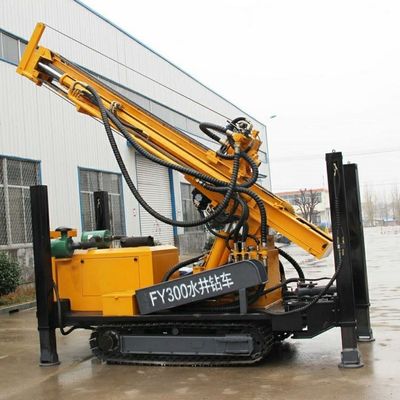

Rotary 300m Water Well Hydraulic Crawler Mounted Drill Rig

I'm Online Chat Now

Rotary 300m Water Well Hydraulic Crawler Mounted Drill Rig

Rotary 300m Water Well Hydraulic Crawler Mounted Drill Rig
Rotary 300m Water Well Hydraulic Crawler Mounted Drill Rig Rotary 300m Water Well Hydraulic Crawler Mounted Drill Rig Rotary 300m Water Well Hydraulic Crawler Mounted Drill Rig Rotary 300m Water Well Hydraulic Crawler Mounted Drill Rig

Large Image :  Rotary 300m Water Well Hydraulic Crawler Mounted Drill Rig

Product Details:

Place of Origin: CHINA
Brand Name: OEM
Certification: ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden cases standard export package
Delivery Time: 10-20 days working days
Payment Terms: T/T, L/C, T/T, Western Union
Supply Ability: Based on the detailed quotation
Detailed Product Description
Power Type: Diesel Usage: Water Well
Voltage: 380V Dimension(L*W*H): 5900*2000*2850mm
Weight: 9000KG Working Pressure: 1.7-3.3Mpa
Hole Range: 140-325 Mm Drilling Pipe Diameter: 89mm,102mm
Hole Depth Max: 300M(1000FT) Air Consumption: 17-35cubic Meter/min
Climbing Ability Max: 30° Drill Pipe Length: 2M,3M,4M,6M
High Light:

Rotary Water Well Drilling Machine

,

300m Crawler Drilling Machine

,

Hydraulic Well Drilling Rig Machine

Rotary 300m Water Well Hydraulic Crawler Mounted Drill Rig



Product Specification

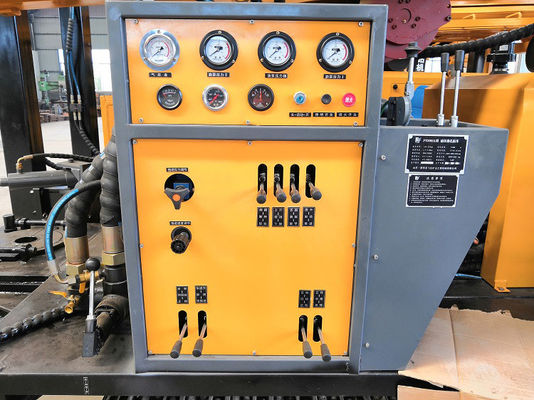

This model rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.



Reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with good maneuverability.



Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, the shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation salvage work.


The top-mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata.



Technical Parameters

Technical Parameters of SRFY300 Crawler type water well drilling rig
type SRFY300
The weight 9T
Dimension 5900*2000*2850mm
The hole diameter 140-325mm
Drilling depth 300m/1000ft
One-time advance length 6.6m
Walking speed 2.5KM/H
Climbing angles 30

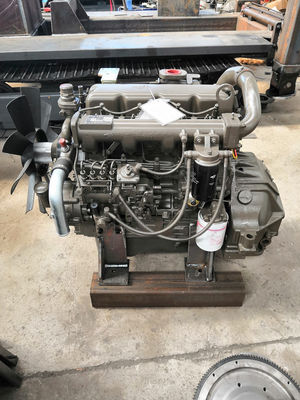

Power 84KW
Using air pressure 1.7-3.3MPA
Air consumption 17-35
Drill pipe length 1.5m 2.0m 3.0m 6.0m
Drill pipe diameter 89mm,102mm,
Rig lifting force 20T
Swing speed 55-115rpm
Swing torque 6200-85000N.m



Rotary 300m Water Well Hydraulic Crawler Mounted Drill Rig 0

Rotary 300m Water Well Hydraulic Crawler Mounted Drill Rig 1
