Product Name: YDL-300HDX Drilling Rig Dimension(L*W*H): 7200x2100x2800mm
Applicable Industries: Manufacturing Plant, Construction Works , Energy & Mining Power Type: Electric
Usage: Coal,Water Well Weight: 11500kg
Drilling Depth: 400m Maximum Lifting Height: 4.5m
Maximum Lifting Force Of Power Head: 25T
High Light:

Crawler Water Well Drilling Machine


Water Well Hydraulic Drilling Machine


Rotary Water Well Drilling Equipment

Hydraulic Water Well Hydraulic Crawler Drilling Machine


Product Description

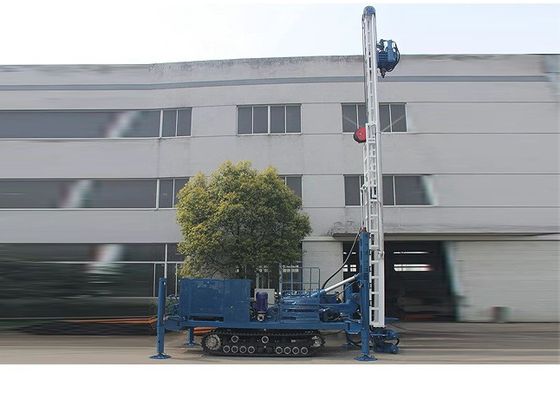

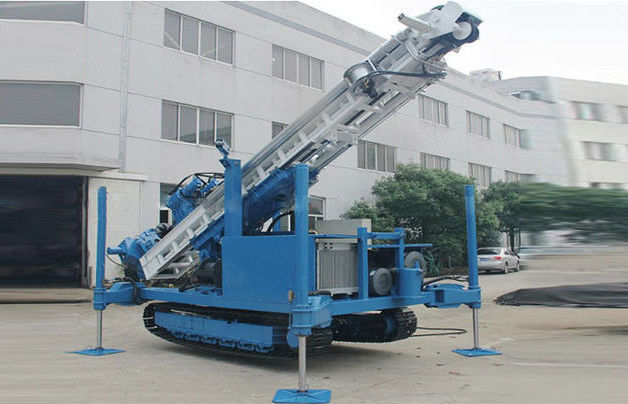

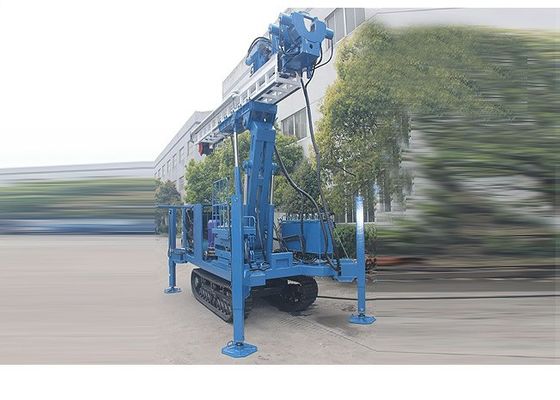

YDL-300HDX full hydraulic high lift multifunctional drilling rig is a new type, high efficiency, energy saving, multifunctional full hydraulic drive, power head high lift multifunctional drilling rig. Mainly used for drilling wells such as water wells, monitoring wells, geothermal air conditioning holes, national defense projects, anti-floating  anchors, cable stayed anchors, high-pressure rotary jets, etc .; also suitable for hydropower projects, railways, highways, urban foundations and other rocks Construction of large-aperture vertical holes in soil engineering; grouting reinforcement holes; small foundation pile holes; miniature piles, etc. After the drilling rig is equipped with corresponding drilling tools, it can perform a variety of processes, such as pneumatic down-the-hole hammer drilling, air foam drilling, gas lift reverse circulation drilling, long spiral drilling, mud circulation drilling, eccentric tube drilling, dental drilling Wheel bit drilling, hydraulic hammer drilling, etc.

The biggest feature of this rig is that the power head has a stroke of 7 meters, and is equipped with a large torque hydraulic motor to swing, and the cylinder has a large propulsion and lifting capacity. The maximum horizontal lift height is 4.5 meters. Users can choose hydraulic telescopic manipulator and booster pump to reduce labor intensity.

The power head has multiple speeds, which makes the drilling range wider. The hydraulic outrigger has a large stroke and can be transferred to the field without crane crane.


Main Feature

1. The drilling rig has strong drilling ability, wide application range, fast drilling speed, strong accident handling ability, and high drilling efficiency.
2. The power head of the rig can be mechanically and hydraulically variable. Suitable for various drilling methods such as down-the-hole hammer, heel pipe, full casing and alloy turning.
3, 2 large oil cylinders on the mast, lifting force of 25 tons, can be used to pull the casing when drilling with eccentric pipe, can also be used for small non-excavation construction.

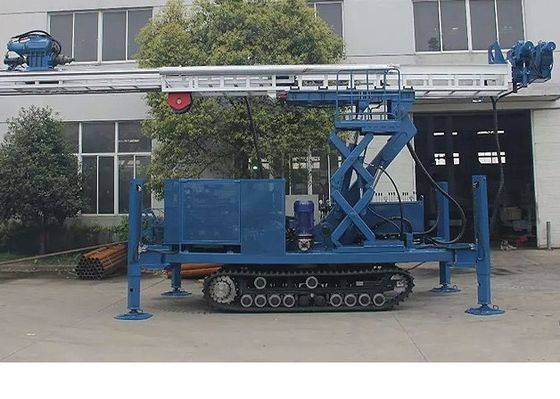

4. The maximum horizontal lift height is 4.5 meters, and the maximum elevation angle is 30 °.
5. One side of the platform is equipped with a hydraulic telescopic platform, so that people can load and unload drill pipes while standing on it, which is convenient and safe.
6. The drilling rig adopts internal and external telescopic masts, the power head travel reaches 7 meters, and two 3 meters drill rods can be drilled at one time, which reduces the time for adding drill rods once and doubles the efficiency. Especially suitable for high-pressure rotary spray.

7. Equipped with a propelling frame with a stroke of 1.5m, the mast can be pushed directly to the orifice or support

the ground, and the drilling is more stable.
8. The main shaft adopts a telescopic buffer mechanism, which can effectively protect the drilling tool, and at the  same time, it protects the drill rod wire buckle from being damaged during shackle.
9. The rig is equipped with a hydraulic gripper on the orifice device, which automatically releases the shackle to reduce the auxiliary time and labor intensity. The orifice is equipped with a guide device, which makes the drilling more stable and reliable.
10. The drilling rig is mounted on the crawler chassis, so that the whole machine is shifted, and the walking is faster and more convenient. Users can choose iron tracks or engineering rubber tracks. Engineering rubber tracks do not hurt the ground, and they can work in cities.
11. The rig uses 4 long-stroke outrigger cylinders, which can be rotated to both sides or optional hydraulic lateral

telescopic legs. After the 4 outrigger cylinders are braced, the stroke reaches 1600mm, and the car can be poured directly in. No crane rig is needed. Can be transferred to the loading and unloading.
12. The main components of the hydraulic system of the rig are domestic and foreign famous products, which make the performance of the whole machine stable and reliable, and the service life is long.
13. The drilling rig can be applied to a variety of drilling processes: long spiral drilling, air DTH hammer drilling, mud positive circulation full casing drilling, air DTH hammer eccentric drilling with tube, cone bit drilling, high pressure spinning Spray job and so on.
14. There is a tool hoist (2 tons lifting force) on the top of the mast, which is convenient for lifting tools such as drill rods.
15. On the platform next to the mast, users can choose a hydraulic telescopic manipulator, which is a good helper for inclined hole operations.
16. The rig has a high-position rotary platform, which makes the rig more flexible during construction.
17, according to user needs, can be configured with a booster pump (motor or hydraulic motor drive).
18. Users can choose electric motor or diesel engine as the power of drilling rig.
19. Users can customize the short stroke or long stroke according to their needs.

Technical Parameters:


Drilling Diameter Φ150—Φ400mm
Drilling Depth 400m
Adaptation Process Drilling Water Wells, Anti-Floating Anchors, Cable Stayed Anchors, High Pressure Rotary Jets, Pipe Shed Support, Positive Air Circulation, Air Lift Reverse Circulation
Maximum Lifting Height 4.5m
Rotating Speed of Power Head 0~6r/min(Stepless Speed Regulation),6-188/min
Maximum Torque of Power Head 12000Nm
Maximum Lifting Force of Power Head 25T
Boost Speed 0-3m/min(Stepless Speed Regulation);3,3.74,7.54,15.08,18.1,21.84m/min(Fast)
Maximum Pressure of Power Head 12.8T
Pressing Speed 0-5.9m/min(Stepless Speed Regulation);5.9,7.34,14.78,29.57,42.83m/min(Fast)
Pressure Lift Cylinder Stroke 3500mm
Maximum Travel of Power Head 7000mm
Propulsion Stroke 1500mm
Mast Inclination -5~120°, the Maximum Elevation Angle is 30 °
Minimum Ground Clearance 360mm
Tool Hoisting Lifting Force 2T
Tool Hoisting Speed 20m/min
Tool Hoisting Wire Rope Diameter Φ9.3mm
Tool Hoisting Capacity 50m
Optional Hydraulic Telescopic Manipulator Inclined Hole Operation: Φ73, Φ76, Φ89 Drill Pipe × 3 Meters Or 6 Meters
Whole Machine Rotation Mode Automatic Turning of the Whole Machine, Positioning Pin Positioning
Walking Speed 1.5km/h
Climbing Angle 25°
Tracked Chassis Engineering Rubber Track
Power Electric Motor 55+18.5KW
Dimensions (Length × Width × Height) 7200×2100×2800(Transport Status )
Weight 11500kg
