Detailed Product Description
Product Name: YDL-90HB Drilling Rig Dimension(L*W*H): 5200*2200*2600mm
Weight: 5000kg Applicable Industries: Manufacturing Plant, Construction Works , Energy & Mining
Power Type: Electric And Diesel Are Optional Type: Core Drilling Rig
High Light:

Crawler Rotary Water Well Drilling Rigs


Hydraulic Rotary Well Drilling Rig


Small Rock Drilling Equipment

Crawler Type Rotary Well Drilling Rig For Anchoring



Product Description

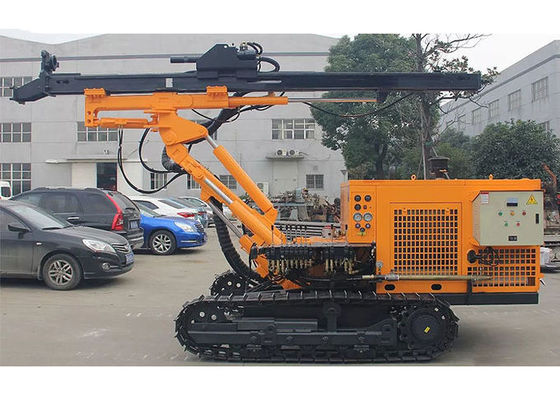

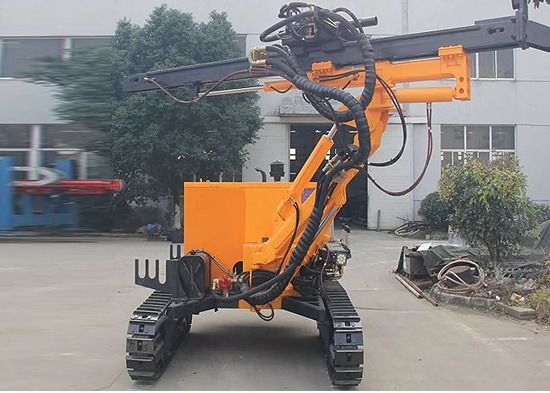

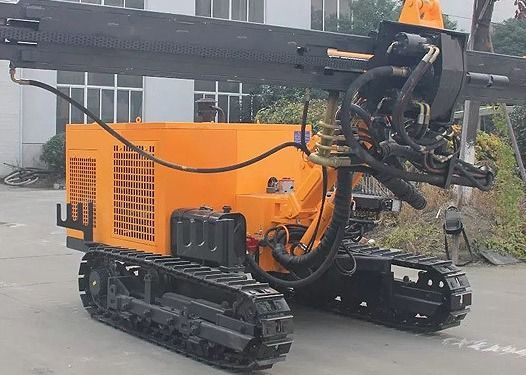

YDL-90HB crawler-type high-lift dobby multifunctional drilling rig is an efficient drilling rig developed for anchoring, rotary jetting and precipitation. This rig has dual power for diesel engine and electric motor, and can work separately and separately. It is equipped with a high-torque dual hydraulic motor, equipped with a reliable and stable hydraulic system, and has a responsive sliding frame.

Scope of application
1. Suitable for the following processes:
(1) The rotation speed is high, and the efficiency of the soil layer is more considerable with the use of twist drills.
(2) Anchoring can be applied to drill pipe drilling, casing drilling, and drill pipe casing drilling.
(3) Rotary spraying can be suitable for single, double and triple rotary spraying methods.

2. By configuring different modules, it can be suitable for the following processes:

(1) Foundation pit precipitation.

(2) Micro-pouring pile.

(3) Geothermal hole (water well) construction.
3. The corresponding drilling tools have been developed for the following construction processes:
(1) The three-wing drill bit is drilled, and the mud is discharged. It is suitable for high-speed drilling of soil and sand layers.
(2) DTH hammer drills and slags out of the air. It is suitable for rock formation and broken layer construction.
(3) Hydraulic hammer drilling at the bottom of the hole, and sludge discharge. It is suitable for the construction of stratums with large water content such as broken layers and sand layers.
(4) Casing drilling.
(5) Compound drilling of drill pipe and casing.
(6) Single, double, triple spin spray, fixed spray, swing spray and other spin spray processes.


Main Feature:
1. The torque and speed can be reasonably matched according to the actual needs. The compound casing drilling can be configured with the corresponding torque gyrator according to different formations, which improves the adaptability of the rig.
2. The mast travel is 3.4 meters, which can be used for 3 meters drill pipe,
3. Equipped with crawler chassis, mast pitch and left-right swing, carriage pitch and left-right swing, large-diameter outrigger cylinder, 0.9-meter slide, orifice support device, which makes the drilling rig displacement and positioning extremely flexible and convenient for drilling Stable and reliable.
4. Maximum lifting height 3.5m
5. Users can choose 1.5 tons of tools to win.
6, the user can choose automatic release.
Technical Parameters:


Rotary Spray Rotary Spray Pile Diameter (mm) Single: 400 ~ 600
Double: 600 ~ 1200,
Triple: 800 ~ 1600
Drilling Depth (m) 20 ~ 50
Anchor (DTH) Drilling Diameter (mm) Φ100 ~ Φ210
Drilling Depth (m) 60 ~ 90
Drill Rod Diameter (mm) Φ73, Φ89, Φ102, Φ114
Basic Parameters Slide Carriage Travel (mm) 900
Pitch Angle Of Carriage 0° Up,135° Down
Swing Angle Of Carriage 95° Left (5° Right)
5° Left (95° Right)
Mast Pitch Angle 55° Up, 15° Down
Mast Swing Angle 45° Left and Right
Maximum Lifting Height (m) 3.5
Rotator Output Speed (r / min) 0 ~ 175 (Steplessly Adjustable)
Gyroscope Output Torque (N · m) 5300
Gyro Travel (mm) 3400
Slide Carriage Travel (mm) 900
Lifting Force Of Gyrator (Kn) 60
Rotator Lifting Speed (m / min) 0 ~ 1.6 (Steplessly Adjustable),
1.6, 5.8, 23.4
Gyratory Pressure (KN) 30
Rotary Pressurizing Speed (m / min) 0 ~ 2.7 (Steplessly Adjustable),
2.7, 9.5, 38.4
Way Of Walking Track Walking
Gradeability 30 °
Walking Speed (Km / h) 2
Input Power (Diesel Engine) 55KW, 1500r / min
Input Power (Motor) 55KW, 1480r / min
Transport Status (Length X Width X Height) (mm) 5200 * 2200 * 2600
Weight (Kg) 5000
