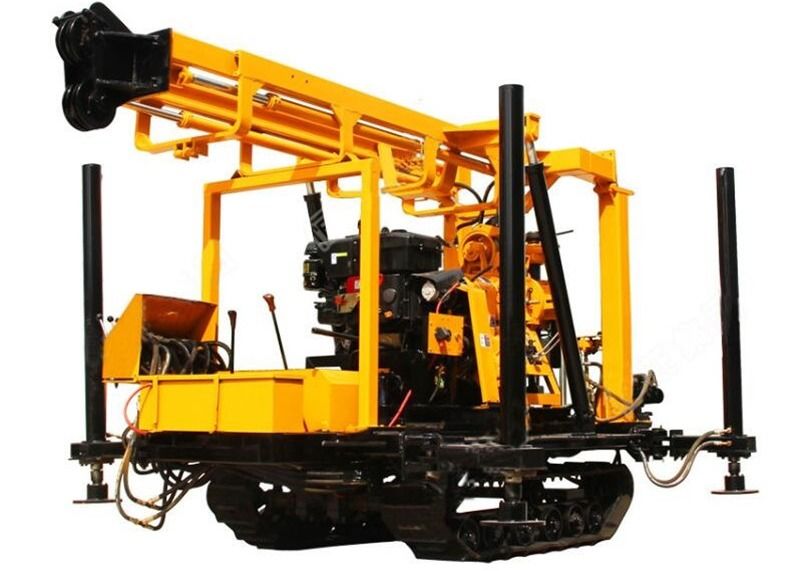

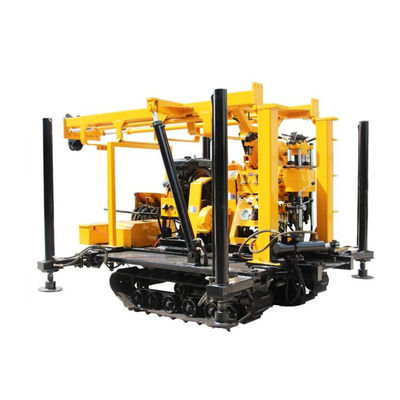

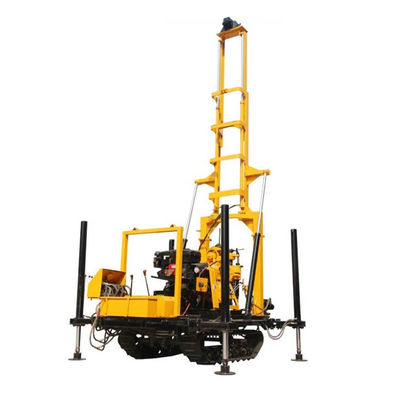

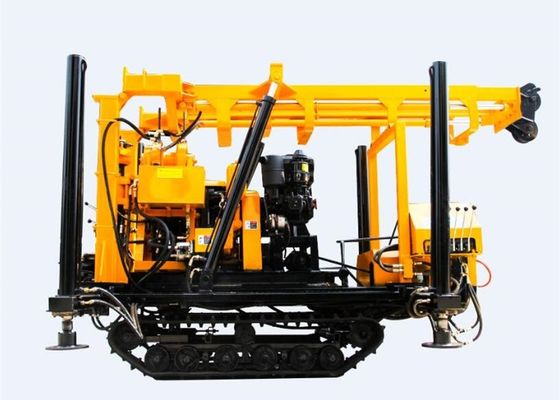

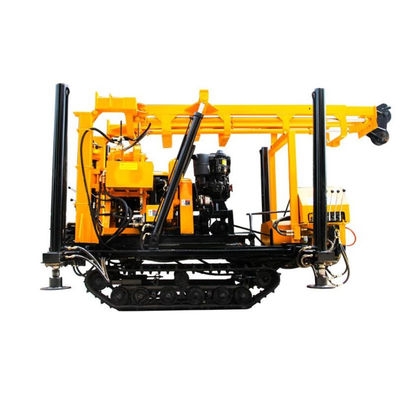

Diesel Engine Rotary Hydraulic Crawler Drilling Machine

Brand Name:	OEM
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	Based on the detailed quotation

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,CE

Condition:

New

Type:

Rotary Drilling Rig

Power Type:

Diesel

Usage:

Water Well

Voltage:

Customized

Dimension(L*W*H):

250*900*1800mm

Weight:

1600KG

Drilling Depth:

600 Meters

Drilling Diameter:

75-300mm

Hole Diameter:

300mm

Final Hole Diameter:

75mm

Pipe:

60mm

Boerhole Inclination:

90-65°

Diesel Engine:

39KW

Motor:

22KW

Single Package Size :

580X230X230 Cm

Packaging Details:

Wooden cases standard export package

Supply Ability:

Based on the detailed quotation

Highlight:

Hydraulic Water Well Drilling Rig

Rotary Water Well Drilling Rig

600m Hydraulic Crawler Drilling Machine

Product Description

Diesel engine Rotary Hydraulic Crawler Drilling Machine

Product Description

portable borehole Crawler weel type Diesel engine hydraulic Rotary water well drilling rig machine
1. The drilling rig adopts LG140 automobile gearbox assembly, which has 10 speed stages and reasonable speed adjustment range;

2, The hydraulic drilling rig large torque, strong bearing capacity, can achieve long-distance manipulation and speed change, convenient and concentrated operation;

3, The water well bore drilling machine installed power is large, with 2 speeds of reverse speed, easy to handle accidents;

4, The well drilling rig with a normally closed hydraulic chuck, convenient and flexible operation;

5, The bore hole drilling machine can achieve independent operation of vertical shaft and winch; 6, The portable bore hole Crawler weel type Diesel engine hydraulic Rotary water well drilling rig machine vertical shaft through-hole diameter can be replaced with a large hexagonal active drill pipe.

Technical parameters	Model	XY-3	XYD-3	XYX-3
	Drilling depth (m)	600	600	600
	Open hole diameter (mm)	325	325	325
	End hole diameter(mm)	75	75	75
	Drill angle (°)	90-75	90-75	90-75
	Matching Power (kw)	YN27/39	YN33GB/65	YN27/39
	Weight without power(kg)	1800	6200	3600
	Dimensions(LWH)(mm)	2.60.91.75	4.522.7	2.92.563.3
Spindle	Speed (r/min)	32-1057	32-1057	32-1057
Spindle	Stroke(mm)	600	600	600
Winch	Max pull force(kg)	3000	4500	3000
	Pull Speed (m/s)	0.3-1.9	0.3-1.9	0.3-1.9
	Rope diameter(mm)	12.5	12.5	12.5
	Roll Capacity(m)	65	65	65
Drill Mast	Rated load(t)	18(option)	18	18
Drill Mast	Height(m)	11	6.5	6.5
