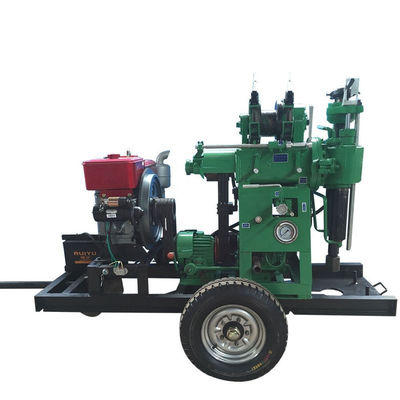

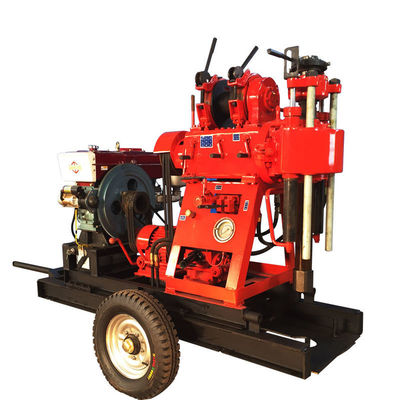

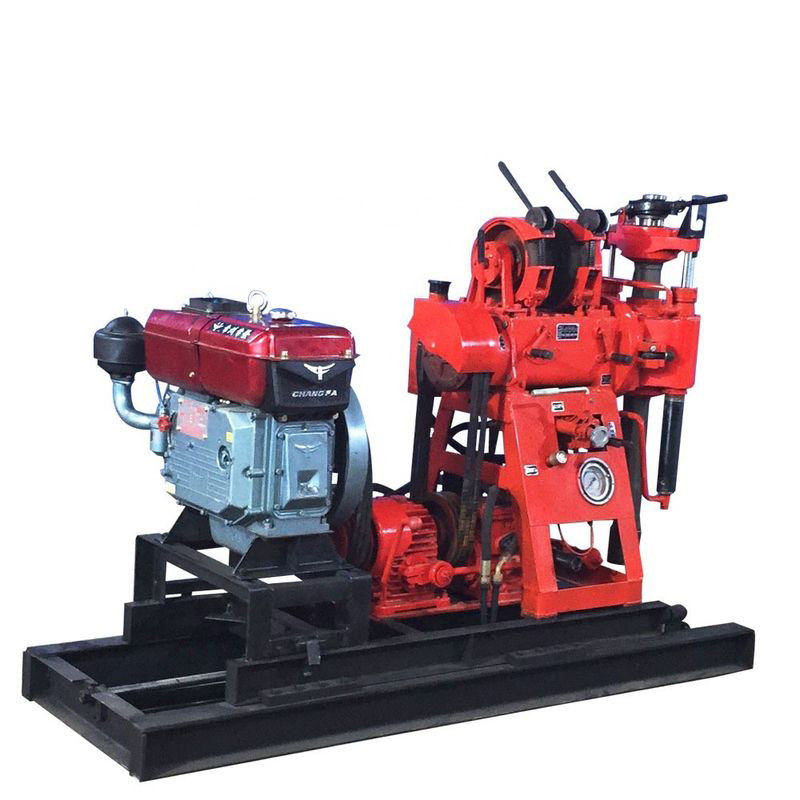

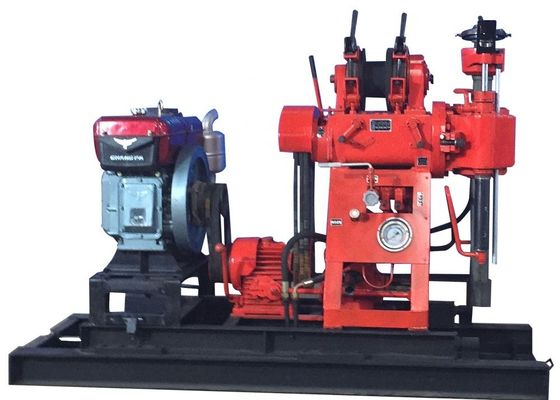

Hydraulic Spindle 180m Rotary Mining Rock Drilling Machine

Brand Name:	OEM
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	Based on the detailed quotation

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,CE

Local Service Location:

None

Showroom Location:

None

Condition:

New

Type:

Rotary Drilling Rig

Applicable Industries:

Farms, Construction Works , Energy & Mining

Power Type:

Diesel

Usage:

Ore

Voltage:

380V

Dimension(L*W*H):

2.75X0.95X1.60m

Weight:

760kg(No Include Power)

Marketing Type:

New Product 2020

Video Outgoing-inspection:

Provided

Core Components:

Motor, Pump, Gear, Bearing, Engine, Gearbox

Key Selling Points:

Can Drill Soil, Sand, Rock, Etc.

Name:

Mining Core Drilling Machine

Application:

Core And Water Well Drilling

Drilling Depth:

Max. 180m

Engine:

Diesel Or Electric

Drilling Diameter:

75-400mm

Drilling Bit:

Alloy And Diamond Bit

Spindle Speed:

71.142.310.620r/min

Mud Pump:

Horizontal Single Urn Twin-action

Shipping:

Sea, Air Or Express

Packaging Details:

Wooden cases standard export package

Supply Ability:

Based on the detailed quotation

Highlight:

Rotary Rock Drilling Machine

180m Rock Core Drilling Machine

Water Well Hydraulic Rotary Rig

Product Description

Hydraulic Spindle 180m Rotary Mining Rock Drilling Machine

Product Description

XY-180 180m hydraulic spindle rotary mining core drilling machine for sale

XY-180 mining core drilling machine is a small drilling rig for 180m deep, widely applied for Geology general check exploration, Earth physics exploration, Road and hihg layer buiding ground survey, Water Bore Well, blast opening et cetera, drilling engineering, etc.

Main Specification

Unity machine parameter
Drilling depth	180m
Maximum open hole caliber	400mm
End hole caliber	75mm
Drill rod caliber	50mm
Drilling angle	90~75
Drill weight(No include power	760kg
Unity machine dimensions	2.75X0.95X1.60m
Spindle
Spindle speed	71.142.310.620r/min
Spindle stroke	450mm
Hoist
Max.xingle line hoisting capacity	2008Kb
Tightrope caliber	13mm
Tightrope cubic measure	35m
Reel lifting speed	17, 35, 75, 160rm/s
Hug floodgate belt width	70mm
Power
Diesel engine	22HP
Speedlimit	2200r/min
Electric motor	15kw
Speedlimit	1460r/min
