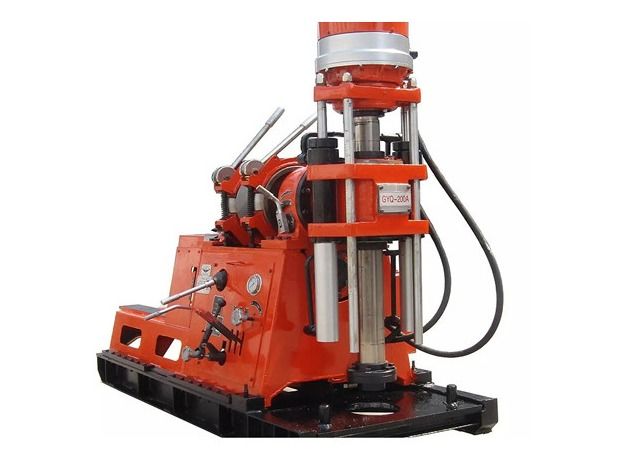

Diesel Engine Engineering Geological Drilling Rig Machine

Diesel Engine Engineering Geological Drilling Rig Machine
Diesel Engine Engineering Geological Drilling Rig Machine Diesel Engine Engineering Geological Drilling Rig Machine

Large Image :  Diesel Engine Engineering Geological Drilling Rig Machine

Product Details:

Place of Origin: CHINA
Brand Name: OEM
Certification: ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden cases standard export package
Delivery Time: 10-20 days working days
Payment Terms: T/T, L/C, T/T, Western Union
Supply Ability: Based on the detailed quotation
Detailed Product Description
Product Name: Water Well Drilling Rig Dimension(L*W*H): 2080*780*1650mm
Voltage: 380V Weight: 800-950kg
Applicable Industries: Construction Works Power Type: Electric
Type: Core Drilling Rig Power: Diesel Engine
High Light:

Geological Drilling Rig Machine


Engineering Geological Drilling Rig


200m Geological Drilling Rig Machine

Diesel Engine Engineering Geological Drilling Rig Machine



Product Description

GYQ-200, GYQ-200A, and GYQ-200B are all suitable for industrial and civil construction, as well as engineering geological surveys of highways, railways, bridge foundations, dam sites, water conservancy, water wells, prospecting and other engineering geological surveys, shallow oil and gas mining, Ventilation and drainage of mine tunnels, and construction of large-diameter pile holes. Depending on the formation, drills such as diamond, cemented carbide, and auger can be used for drilling. This model has the advantages of compact structure, light weight, small size, and good detachability. These two rigs are one of the rare ideal equipment to meet the needs of the new market.
Main Feature
1. A more reasonable speed range is selected. There are eight speed levels, centralized speed change, self-locking with each other, large low-speed torque, and a wide range of use. Suitable for both engineering geological survey and diamond core drilling.
2. The drilling rig has two speeds of reversing speed, which is convenient for handling faults safely.
3. The rotary chuck adopts two types of manual ball chuck and automatic centering hydraulic chuck for users to choose.
GYQ-200 is a manual ball card type, which is reliable in clamping, does not hurt the active drill pipe, and can be implemented without stopping the bar. GYQ-200A and GYQ-200B are hydraulic chuck type, which can clamp six-way active drill pipe or round drill pipe.
4. Equipped with enough instruments, which is helpful for grasping the situation in the hole, with fewer operating handles, more reasonable layout, flexible and reliable operation.
5. The two-plate normally closed friction clutch is adopted, which is flexible to open and close, and easy to adjust and use.
6. GYQ-200B drilling rig has a large vertical through hole, reaching Φ93mm, and can use 89 triple drill pipe for rotary spraying

7. Equipped with front and rear moving oil cylinders, the gyrator moves 465 mm backwards, which brings a lot of convenience to lifting and lowering the drilling tool.
8. The rig is light in weight, compact in structure and easy to disassemble and can be applied to drilling work in hills or mountains.

Technical Parameters


  Parameter Model GYQ-200 GYQ-200A GYQ-200B
Basic Parameters Drilling Depth 200m 200m 260m
Drilling Inclination 0-360°
Rig Dimensions 1980×780×1480mm 1980×780×1500mm 2080×780×1650mm
Rig Weight (Excluding Power) 800kg 900kg 950kg
Gyroscope Drill Pipe Clamping Method Ball Cassette Hydraulic Chuck Hydraulic Chuck
Vertical Shaft Speed with Y160L-4 Motor Power 15kw
Speed 1460rpm
Power 15kw
Speed 1460rpm
Power 18.5kw
Speed 1470rpm
Forward Speed 55;96;152;210;262;455;718;990rpm
Reverse Speed 44;206rpm
Vertical Axis Stroke 500mm
Vertical Shaft Torque 2500N·m 3200N·m
Lifting Force of Vertical Shaft 49KN 72KN
Maximum Vertical Axis Pressure 36KN 54KN
Vertical Shaft Through Hole Diameter Φ63mm Φ93mm
Hoist Maximum Lifting Capacity (Low Speed Single Rope) 25KN
Drum Speed 34;59;94;129rpm
Wire Rope Lifting Speed (Single Rope Single Layer) 0.38;0.66;1.05;1.44m/s
Wire Rope Specifications Φ12.5mm
Rope Capacity 30m
Mobile Device Moving Cylinder Stroke 465mm
Distance from the Rig to the Hole 330mm
Power Configuration Y160L-4 Motor Power 15KW Power 15KW Power 18.5KW,
Speed 1460r / min Speed 1460r / min Speed 1470r / min
L28 Diesel Engine Power 20KW
Speed 2200r / min
