220m Rotary Hard Rock Drilling Equipment For Deep Wells

Brand Name:	OEM
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	Based on the detailed quotation

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,CE

Product Name:

DTH Water Well Drilling Rig

Local Service Location:

None

Showroom Location:

None

Condition:

New

Type:

Rotary Drilling Rig

Power Type:

Diesel

Usage:

Water Well

Voltage:

380V

Dimension(L*W*H):

3800*1700*2350mm

Weight:

4200kg

Core Components:

Engine, Gearbox

Key Selling Points:

Easy To Operate

Drilling Diameter:

130-300mm

Drilling Depth:

220m

Work Air Pressure:

1.7-2.5Mpa

Applicable Industries:

Construction Works , Energy & Mining

Air Consumption:

15-27m3/min

Climbing Ability(max):

Engine Power:

60KW

Drilling Speed:

20-40m/h

Drill Rod Length:

Packaging Details:

Wooden cases standard export package

Supply Ability:

Based on the detailed quotation

Highlight:

Pneumatic Deep Well Drilling Equipment

220m Hard Rock Drilling Equipment

DTH Deep Well Drilling Machine

Product Description

220m Rotary Hard Rock Drilling Equipment For Deep Wells

Product Description

HQZ220L Pneumatic Drill Rig

* HQZ series water well drilling rig is a lightweight, efficient and multifunctional drilling equipment , it is mainly applicable
to industrial and civil drilling, geothermal drilling, has the advantages of compact structure, fast advancing, mobile and
flexible wide application region etc.. It is especially suitable for water intake in mountainous and rocky strata.

* The rig can create drilling jobs in different strata, borehole diameter can up to 245-294mm. The rig with hydraulic technology, supporting high torque hydraulic motor rotation and large bore hydraulic cylinder push, the multi cylinder engine of famous factory provides power for the hydraulic system, two stage air filter, air compressor air intake design, prolong the service life of diesel engine. Special pump set design is convenient for maintenance and reduce the cost of maintenance. Centralized control of the hydraulic control table, convenient operation.

* allows the drill to be mounted on the truck to increase its mobility. Two speeds of rotating and advancing speed can meet the different needs of soil and rock drilling. Combined positioner, the positioning disc can be adjusted and replaced according to different types of drill pipe and impactor, so as to ensure the accuracy and reliability of the positioning and centering. The hoisting mechanism is convenient for hoisting of drill pipe and impactor, so as to reduce the labor intensity.

* This machine can be applied to various strata, used in water well engineering, geothermal well, anchor pile hole and so on, and can be used with follow-pipe drilling. It has the advantages of whole machine hydraulic control, automatic loading and unloading drill pipe, crawler type chassis, large horsepower diesel engine, four hydraulic support leg balance, stronger
terrain application ability and so on.

Technical Parameters

Techincal Data of Pneumatic drilling rig Hengwang HQZ220L with rubber clawler
Total Weight(T)			4.2
Dimensions(mm)			380017002350
Drilling Diameter(mm)			130-300mm
Max Drilling Depth(m)			220m
One-time Advance Length of the Drill(mm)			3000
Walking Speed(Km/h)			2.5
Climbing Ability(max)			30
Min. Ground Clearance(mm)			250
Working Air pressure(Mpa)			1.7-2.5
Air Consumption(m³/min)			15-27
Main Power(KW)			60KW Yunei
Rotation(rpm)			48-70
Rotary Torque(Nm)			4200-5600

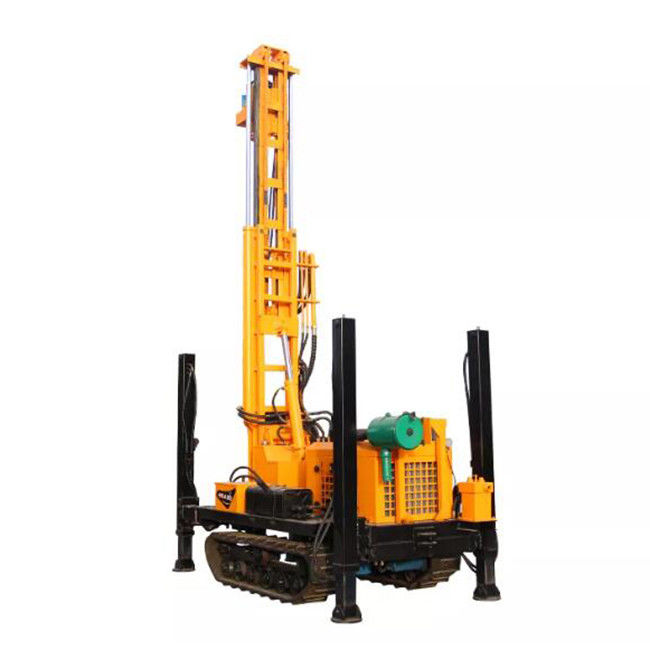

220m Rotary Hard Rock Drilling Equipment For Deep Wells 0

Technical Parameters

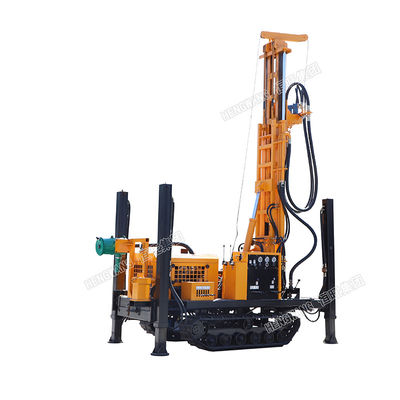

220m Rotary Hard Rock Drilling Equipment For Deep Wells 1

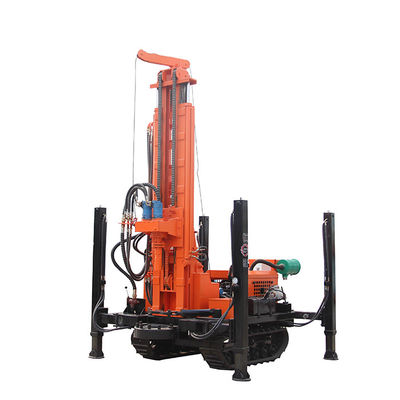

220m Rotary Hard Rock Drilling Equipment For Deep Wells 2

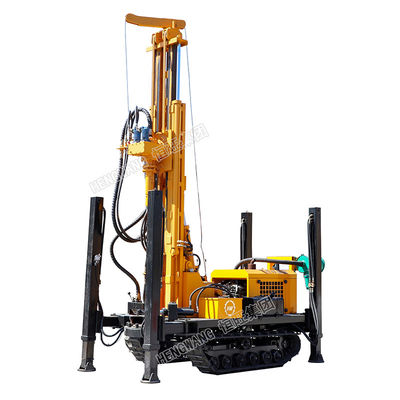

220m Rotary Hard Rock Drilling Equipment For Deep Wells 3

Application

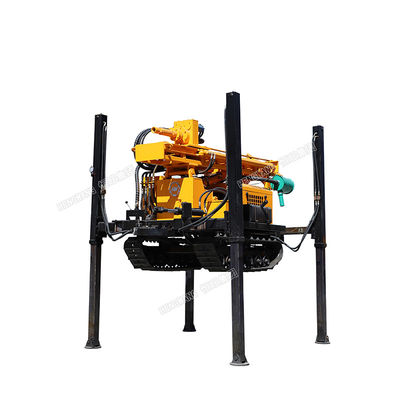

220m Rotary Hard Rock Drilling Equipment For Deep Wells 4

Packing & Delivery

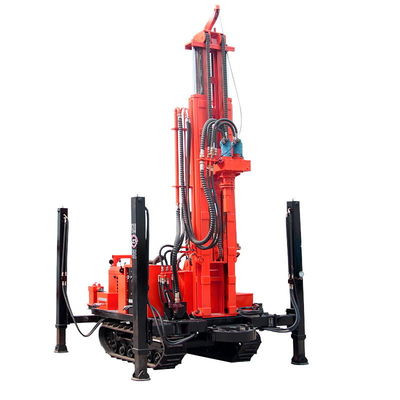

220m Rotary Hard Rock Drilling Equipment For Deep Wells 5
