Road Building Hydraulic Crawler Mining Rock Drilling Machine

Brand Name:	OEM
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	Based on the detailed quotation

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,CE

Condition:

New

Type:

Rock Blast Hole Drilling Rig

Power Type:

Diesel

Usage:

Ore

Voltage:

380V

Dimension(L*W*H):

5480*1950*3150mm

Weight:

5160kg

Warranty:

1 YEAR

Applicable Industries:

Construction Works

Packaging Details:

Wooden cases standard export package

Supply Ability:

Based on the detailed quotation

Highlight:

Crawler Drilling Rig Equipment

42m Drilling Rig Machine

HF115Y Drilling Machine

Product Description

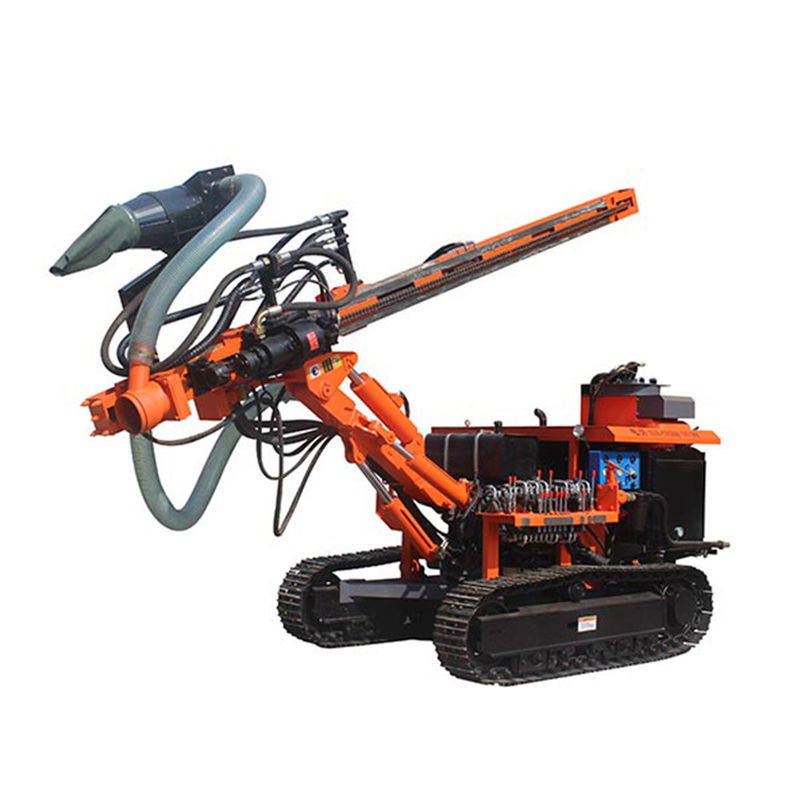

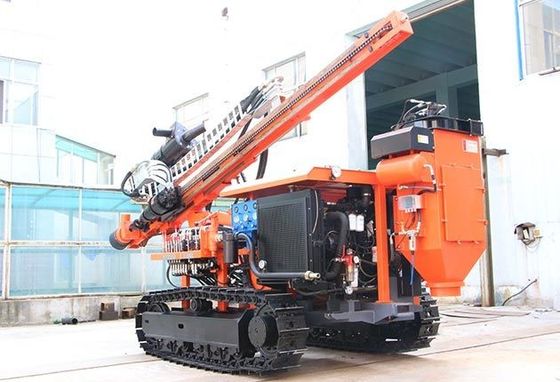

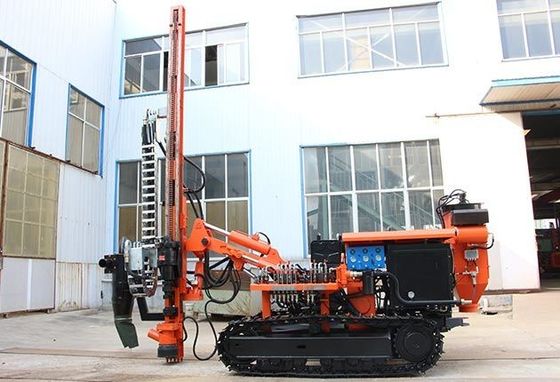

Road Building Hydraulic Crawler Mining Rock Drilling Machine

Product Description
HF115Y crawler hydraulic drilling rig adopts new hydraulic technology, which has low air consumption, high rotary torque and convenient hole displacement. ,The drilling rig structure is compact and machine mast has compensation function. The mast is supported on the ground during drilling so that drilling stability is good.
HF115Y drilling rig has advantage of reliable performance, high drilling efficiency, It has 1-2 times higher efficiency than low air pressure drilling rigs during hard rock drilling process, so it is important for construction clients to reduce the cost, improve efficiency .
The HF115Y drilling machine is mainly used for open mining, water conservancy, power plants, road building and other blasting hole drilling projects.

Technical Data

Bore diameter(mm)	90-150
Bore depth(m)	42
Walk speed(km/h)	0-2.5
For rock(F)	6-20
Air pressure(Mpa)	0.7-1.6
Air consumption(m³/min)	7-15
Once promotion(mm)	3000
Skid pitch(º)	Up and down total 100
swinging angle of skid(º)	left and right total 55
boom swing angle(º)	left and right total 70
Boom pitch(º)	left 45,right 40
Rotation speed(r/min)	0-120
Climb ability(º)	30
Dimension(LWH)(mm)	548019503150
Weight(kg)	5160
