Hard Rock Core Mining Drilling Equipment

Brand Name:	OEM
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	Based on the detailed quotation

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,CE

Name:

High Speed Mining Drilling Equipment

Type:

Rotary Drilling Rig

Power Type:

Diesel

Usage:

Water Well

Voltage:

380V

Dimension(L*W*H):

4.5m*2m*2.7m

Weight:

1800-6200kg

Video Outgoing-inspection:

Provided

Core Components:

Motor, Pump, Gear, Bearing, Engine, Gearbox

Key Selling Points:

Easy To Operate

Application:

Water Well Drilling, Geological Exploration, Soil Test, Mining Project

Drilling Depth:

600m

Drilling Diameter:

75-325mm

Drill Angle:

90-65 Degree

Power:

65KW

Spindle Speed:

32-1057r/min

Winch Lifting Capacity:

4500KG

Mud Pump:

BW250

Packaging Details:

Wooden cases standard export package

Supply Ability:

Based on the detailed quotation

Highlight:

600m Hard Rock Drilling Equipment

600m Mining Drilling Rig

Water Well Crawler Mounted Drill Rig

Product Description

Hard Rock Core Mining Drilling Equipment

Main Features

1> It drills up to 600m deep and diameter is 70mm-500mm.

2> Drill through marble, soil, sand, gravel, rock, semi-hard rock, hard rock,marble, quarry, any any other hard ground, etc.

3> Hydraulic system, trailer / crawler mounted .

4> Power can be diesel engine or electric engine. 39-65KW.

5> compact structure, big torque, strong lifting capacity and easy being operated.

SPECIFICATIONS FOR high speed heavy duty hard rock core mining drilling equipment
Main parameter	model	YT600	YT600D	YT600T
	Drilling depth(m)	600
	Drilling diameter(mm)	75-325
	Drill angle	90-75degree
	Power(kg)	39	65	39
	Weight(kg)	1800	6200	3600
	Size(m)	2.60.92.75	4.522.7	2.92.563.3
Spindle	Speed(r/min)	32-1057
	Stroke(mm)	600
Winch	Max pull(T)	3000	4500	3000
	Pull speed(m/s)	0.3-1.9
	Steel line diameter(mm)	12.5
	Steel line capacity(m)	65
Drill mast	Rated load(T)	65
	Height(m)	11	6.5	6.5
BW250 Mud pump	type	BW250 Mud pump with 3 Cylinder
	diesel engine	20HP

Product Application

Mainly applies to drill water well for farm /industry irrigating, fresh water drinking or anywhere need fresh water. Geological/Geo-technical explorations, earth sample taking, etc.

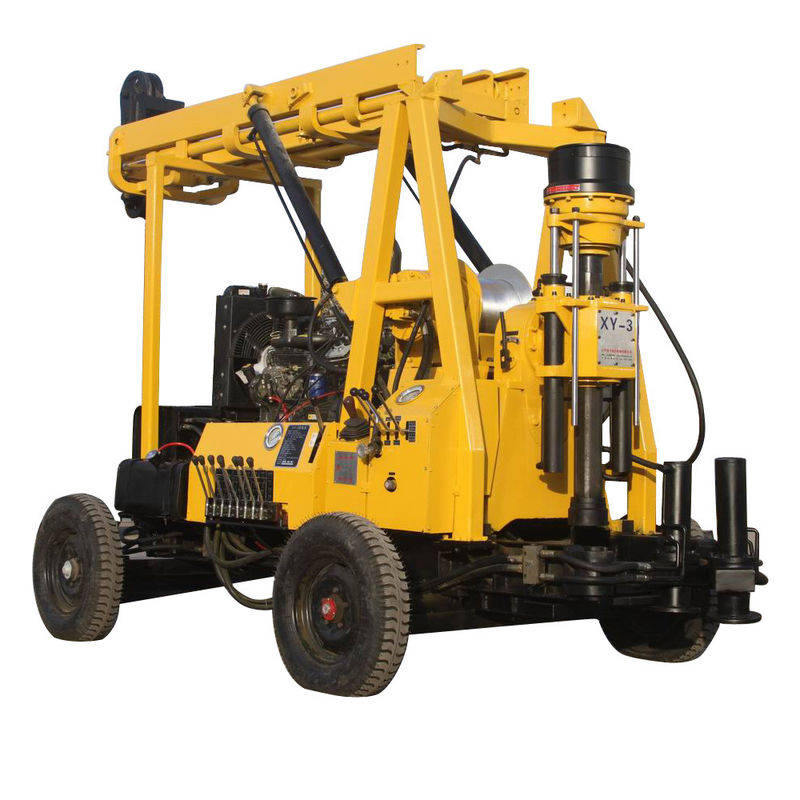

Hard Rock Core Mining Drilling Equipment 0

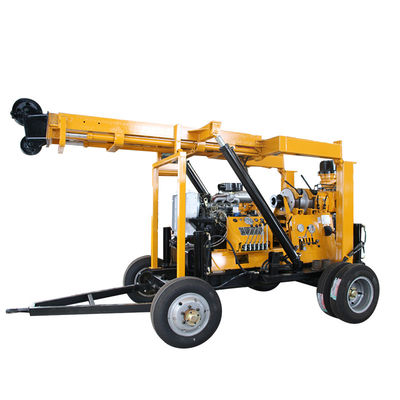

Hard Rock Core Mining Drilling Equipment 1

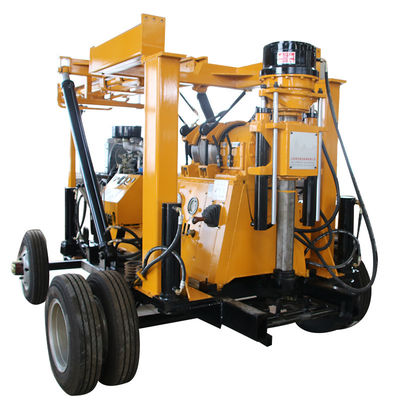

Hard Rock Core Mining Drilling Equipment 2

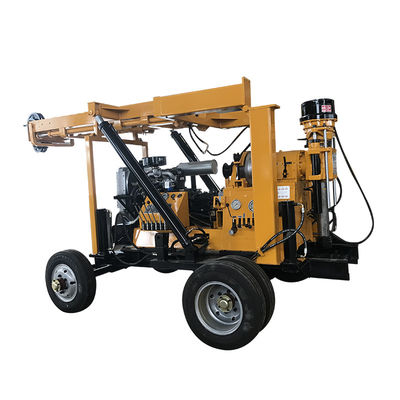

Hard Rock Core Mining Drilling Equipment 3

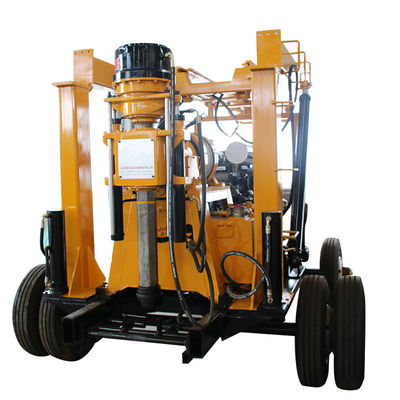

Hard Rock Core Mining Drilling Equipment 4

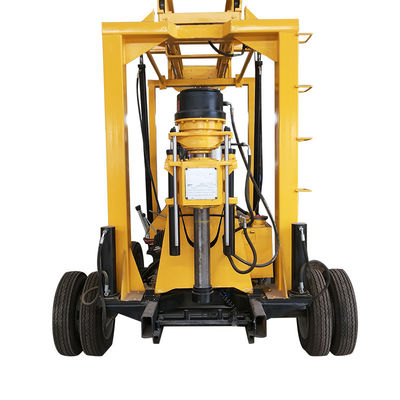

Hard Rock Core Mining Drilling Equipment 5

Hard Rock Core Mining Drilling Equipment 1

Hard Rock Core Mining Drilling Equipment 7

Hard Rock Core Mining Drilling Equipment 8
