200m Mining Rock Drilling Machine

Brand Name:	OEM
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	Based on the detailed quotation

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,CE

Condition:

New

Type:

Water Well Drilling Equipment

Power Type:

Diesel

Usage:

Water Well

Voltage:

380V

Dimension(L*W*H):

5350*1850*2600MM

Weight:

8800kg

Drilling Diameter:

90---250mm

Drilling Depth:

0-300m

Walking Speed:

2km/h

Torque Of Rotary:

8500-10000NM

Working Pressure:

1.7-3.3MPA

Air Consumption:

16---25m3/min

Diesel Power:

85KW

Dimension:

5350*1850*2600MM

Applicable Industries:

Farms, Home Use, Retail, Construction Works , Energy & Mining

Total Weight:

8.8T

Packaging Details:

Wooden cases standard export package

Supply Ability:

Based on the detailed quotation

Highlight:

200m Mining Drilling Equipment

Hydraulic Mining Drilling Machine

Mining Rock Crawler Drilling Rig

Product Description

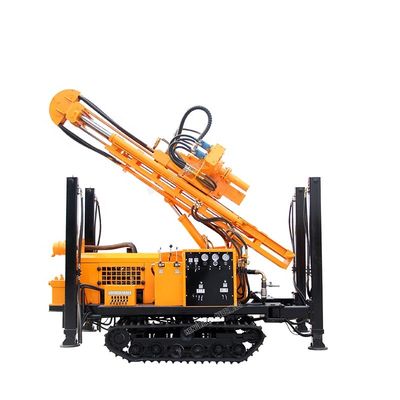

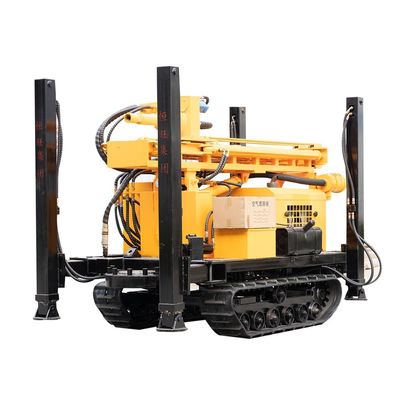

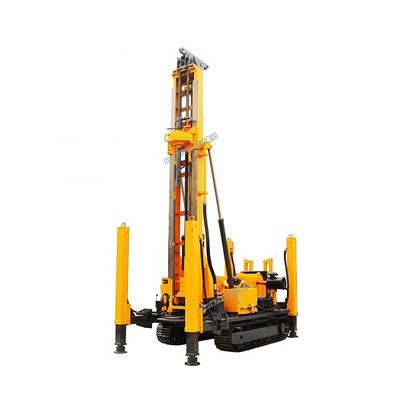

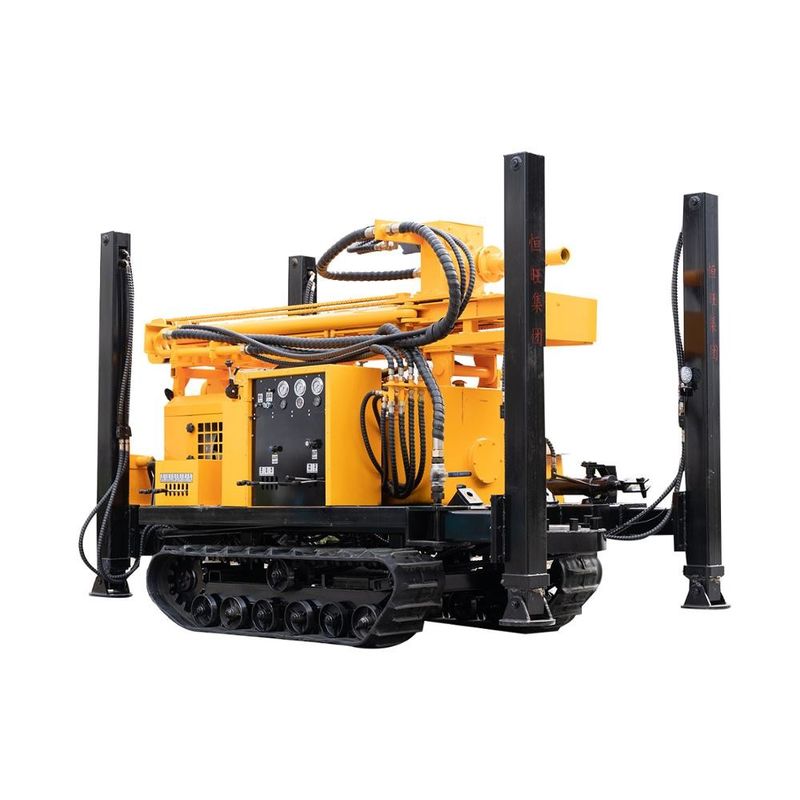

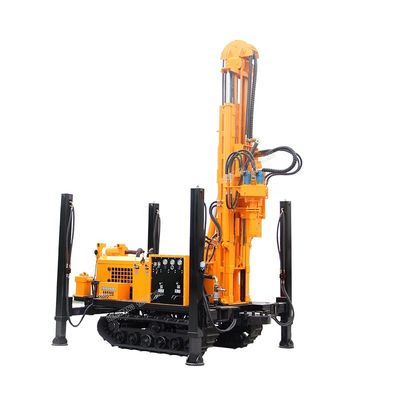

200m Mining Rock Drilling Machine

Product Description

HW-300L(CRAWLER TYPE) Super hydraulic transmission, CNC control, automatic drilling experience Drilling Rock:20M~40M/Hour

HW series of well drilling rig is a lightweight, efficient, versatile drilling hole equipment, which is mainly applied in drilling wells, irrigation wells, geothermal wells and air holes for other purposes, especially for mountain and rock formation water engineering. The well drilling rig machine can work on different formations, well drilling diameter up to 245mm. The drill machine adopts new hydraulic technology, supporting high torque hydraulic motor rotation and big bore drill hydraulic propulsion, branded multi-cylinder engine-powered two-stage air filter and the intake air compressor designed for hydraulic systems, extend the life of diesel engines. Unique pump design to facilitate maintenance, reduce maintenance costs. Centralized hydraulic control console, easy to operate.

Features

1. High drilling efficiency, power provided by 42KW diesel engine
2. High efficiency, large rotary torque
3. Integrated automation equipment,All terrain moves by itself
4. Adopt consummate design, long service life
5. Self loading and unloading,Easy to operating

Product Paramenters

deep well drilling rig machine for rock
Model	HW-150L	HW-180L	HW-260L	HW-300L	HW-400L
Overall weight (T)	3.5	4.2	6.4	8	8.7
Dimension (mm )	340015002400	380017002350	410019002600	550019502780	530020502700
Drilling diameter(mm )	130-245	130-294	140-300	140-325	130-400
Drilling depth(m)	150	180	260	300	400
One-time advance length of the drill(mm)	3000	3000	3000	3000/6000	3000/6000
Traveling speed(km/h )	2.5	2.5	2.5	2.5	6
Climbing ability(max )	25	30	30	30	25
Minimum Ground Clearance(mm)	250	250	250	230	300
Working Air Pressure(mpa )	1.45 - 2.5	1.7-2.5	1.7-3.0	1.7-3.3	1.7-3.5
Air consumption	15 - 27	15 - 27	17-35	23	17-35
Main machine power(kw)	42 /Yunnei	60/ Yunnei	85/Yuchai	92/Yuchai	100/6 cylinder
