Portable Hydraulic Water Well Drilling Rig

Portable Hydraulic Water Well Drilling Rig

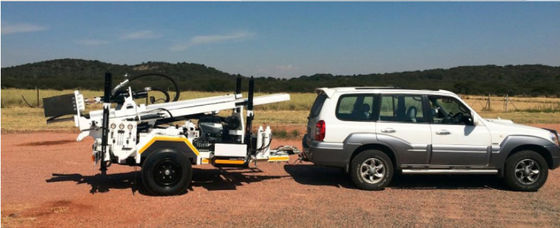

RC2 trailer mounted water well drilling rig able to handle water well drilling .
In most cases where boreholes are drilled in Africa it is to install hand pumps or solar pumps with a size smaller than 6" .For that reason on mud rotary holes we needed a 8" capacity and on DTH a 6" capacity. This is big enough to install most water pumps. The rig must be able to handle 6" PVC casing installations.

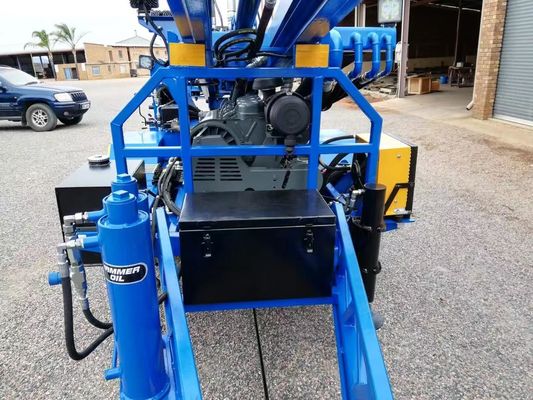

This water drilling rig, uses proven technology like the Deutz F3L912 engine and even after long periods of drilling you can still keep your hand on the hydraulic tank. We have decided to use roquete valves.

This portable water well drilling equipment uses 89mm drill pipes with 2 and 3/8 API Internal Flush threading. That reduces the friction in the case of mud rotary drilling as the internal joint diameter is 44mm.The drill tower is telescopic and uses earthlight blocks to reduce friction and is directly connected on the feed cylinder. The drill head of this water well drilling machines is powered by a white drive product with 2200 Nm torque. So if you want a quality product that can drill up to 200mm holes.

Water well drilling rigs, borehole drilling rig, Water well drilling equipment, Well Drilling Rigs, Portable Well Drilling Equipment, Hydraulic Well Drilling Rigs, portable drilling rig, drill your own water well, home water well

Specification
