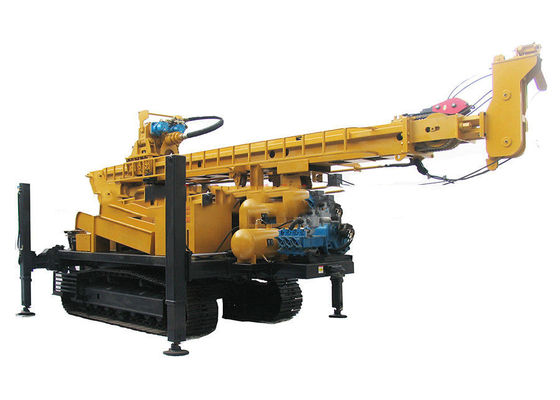

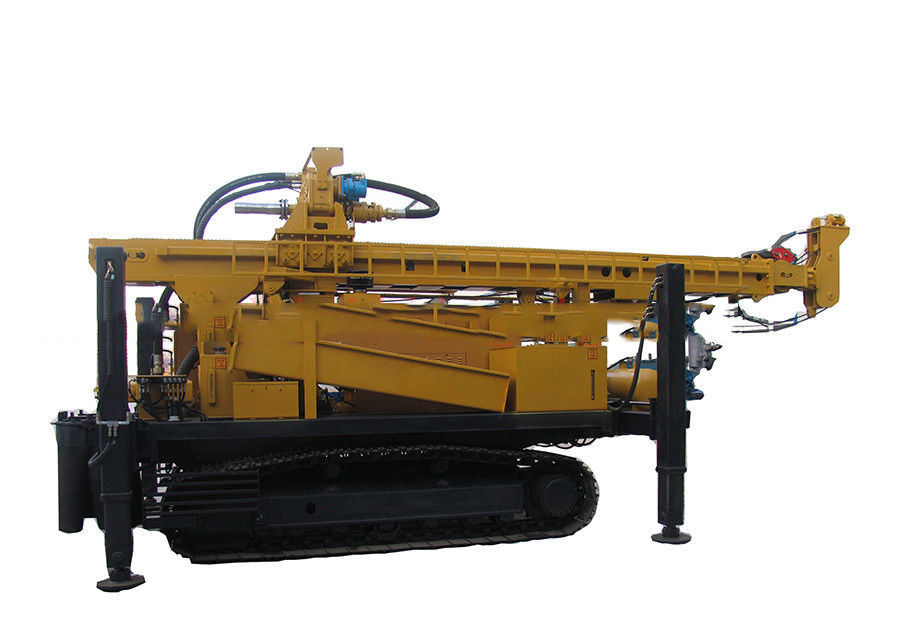

Multifunctional Track Mounted Water Well Drilling Machine

I'm Online Chat Now

Multifunctional Track Mounted Water Well Drilling Machine

Multifunctional Track Mounted Water Well Drilling Machine
Multifunctional Track Mounted Water Well Drilling Machine Multifunctional Track Mounted Water Well Drilling Machine

Large Image :  Multifunctional Track Mounted Water Well Drilling Machine

Product Details:

Place of Origin: CHINA
Brand Name: OEM
Certification: ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden cases standard export package
Delivery Time: 10-20 days working days
Payment Terms: T/T, L/C, T/T, Western Union
Supply Ability: Based on the detailed quotation
Detailed Product Description
Condition: New Drilling Depth: 1000m
Rotation Torque: 20000N.M Rotation Speed: 0-140 RPM
Drill Pipe Dia: 114/127mm Drill Pipe Length: 6000mm
Lifting Force: 53ton Diesel Engine: 240HP
Power Type: Diesel Engine Drilling Diameter: 105-900mm
Dimension: 6500x2200x3200mm Weight: 19 T
Color: Customized Drilling Method: DTH&Mud Drilling
High Light:

1000m Water Well Drilling Machine


Track Mounted Water Well Drilling Machine


Water Well Drilling Rig Machine

Multifunctional Track Mounted Water Well Drilling Machine




1.Overall parameters
Drilling depth 100-1000 m
Maximum open hole caliber 140-900 mm
Diameter of drill rod 114/127 mm
Drilling Type DTH & Mud Rotary
Drilling angle 90~75
Rotation Speed 0-120 RPM
Lifting Force 5-25 T
Weight 9-20 T
2.Diesel Engine
Brand Cummins
Power 240 HP
Net Weight 19 T
Shipping Length 6500mm
Shipping Width 2200mm
Shipping Height 3200mm
Ground Clearance 300mm




1. The drilling rig can use air DTH Hammer drilling and mud drilling.
2. Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary
time and enhance the work efficiency.
3.The main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system
are set up on the chassis.
4. It's a hydraulic rotary drilling rig with directional circulation. It can equipped with BW450/BW850 mud pump which
adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
5. The power of drilling rig comes from a Cummins engine,112kw Cummins engine drives the large displacement high
pressure plunger pump and it is characterized by powerful dynamic and stable performance.

6. The rotary head,have two gear,rotation speed is 0-40 and100rpm stepless adjustment and the rotary torque is 9200Nm.

7.The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
8.It can set up a generator which is convenient to welding or illuminate for work at night.

9.Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering
10.The main drive of rig is hydrulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case
and mud pump clutch system are also hydraulic operated.

11.The tools winch winch is used for auxiliary lifting and casing,optional main winch force of 4T, rope length of 100m
and 8m lifting height.
12.The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide dumping.




CWD1000 Multi-functional track mounted water well drilling rig is a efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.

CWD1000 crawler mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.


CWD1000 deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions
