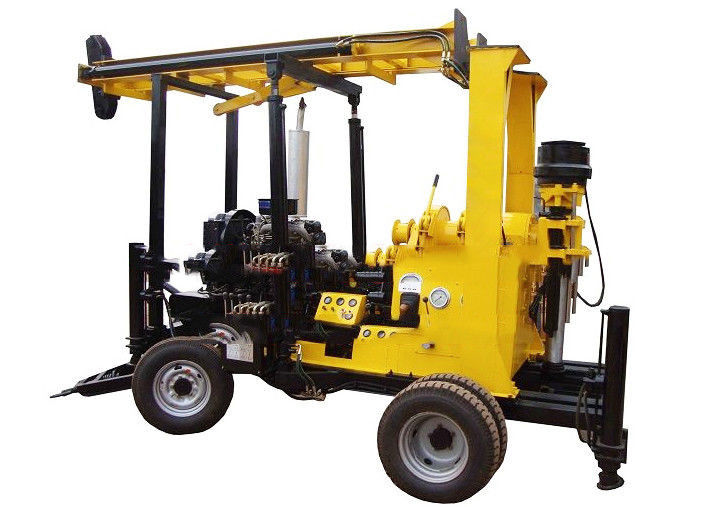

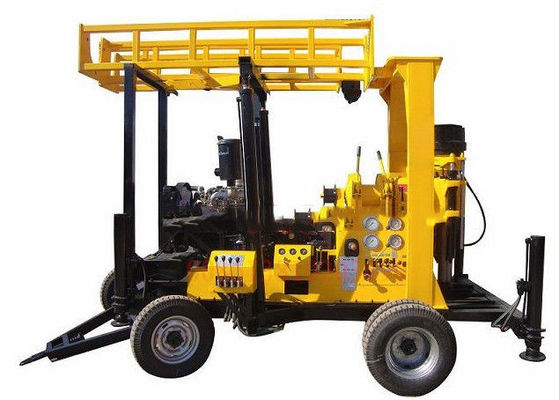

JXY600 600m Trailer Mounted Water Well Drilling Machine

I'm Online Chat Now

JXY600 600m Trailer Mounted Water Well Drilling Machine

JXY600 600m Trailer Mounted Water Well Drilling Machine
JXY600 600m Trailer Mounted Water Well Drilling Machine JXY600 600m Trailer Mounted Water Well Drilling Machine

Large Image :  JXY600 600m Trailer Mounted Water Well Drilling Machine

Product Details:

Place of Origin: CHINA
Brand Name: OEM
Certification: ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden cases standard export package
Delivery Time: 10-20 days working days
Payment Terms: T/T, L/C, T/T, Western Union
Supply Ability: Based on the detailed quotation
Detailed Product Description
Model Number: JXY200 Usage: Water Well Drilling
Rotation Speed: 0-80rpm Engine Power: 50HP
Drill Pipe Length: 4.2m Drilling Depth: 0-600m
Drill Pipe: 50/60mm Mud Pump: BW450/BW850
Drilling Diameter: 75-600mm Drilling Methold: DTH Drilling & Mud Drilling
High Light:

600m Water Well Drilling Equipment

,

Hydraulic Water Well Drilling Machines

,

Truck Mounted Water Well Drilling Rig

JXY600 600M Trailer Mounted Water Well Drilling Machine




Specification

Drilling depth m 75 219 273 500 600
Drilling Dia. mm 600 210 150 80 60
Open hole Dia. mm 600
End hole Dia. mm 75
Drilling rod mm 42,50,60,76
Drilling angle   65-90°
Rotary Spindle
Spindle forward speed r/min 30-1050
Spindle reverse speed r/min 29-137
Spindle stroke mm 560
Spindle inner diameter mm 96
Spindle lifting capacity Kg 6000
Spindle Max.Torque N/M 3800
Main Winch (Hydraulic)
Single line lifting speed m/s 0.5-1.9
Tightrope diameter mm 12.5
Hoist single line lifting capacity Kg 4000
Roller diameter mm 300
Roller cubic measure m 50
Tools Winch
Tightrope diameter mm 6
Roller diameter mm 140
Roller cubic measure m 450
Drilling rig Power(choose one between the following two)
Diesel engine kw/hp 38/50
Electric motor KW 22kw
Trailer
Loading Capacity T 4
Walking Speed km/h 25
Mini turning radius m 6.8
Weight&Size
Weight kg 3000
Dimension mm 3700×1850×3200



Characteristics


1. The JXY600 trailer mounted water well drilling rig is equipped with wheel running gear and hydraulic oil cylinder pillar, transferring, convenient and easy to drill horizontal adjustment.
2. With hydraulic feed mechanism, improve drilling efficiency.
3. Advanced hydraulic system design makes the control handles concentrated, compact layout reasonable, easy operation, flexible and reliable; Can realize remote speed change, more humanization operation;
4. It equipped with a pressure gauge instructions at the bottom of the bore pressure, easy to master the hole.

5. The drilling rig has 8 grades forward rotation speed and 2 grades reverse rotation speed, wide speed adjustable range.
6. Compact mechanical transmission structure, light weight, large diameter of spindle bore, hydraulic stabilizer legs, good rigidity.

7. Falling tower for hydraulic operation, convenient and reliable
8. Diesel engine with electric start, reduce labor intensity.

9. It is the most popular machine meeting most requirements for a combination drilling machine able to complete rural water supply holes in sediments and hard rock. 10.High efficiency and low cost.



Application



JXY600 water well drilling machine adopts the latest design with trailer mounted mobile base, mechanical transmission and hydraulic operation system. It is equipped with three-wing bit, alloy bit and diamond bit for different geological formations, such as soil, sand, gravel, granite, hard rock, etc.

1. Exploration for foundation engineering;
2. Construction;
3. Water well or geotechnical survey drilling for caliber within diameter 600mm;
4. Holes for inspection, rescue, project quality test as well as geological exploration and coal field prospecting;
