Red High Speed Compact Hydraulic Engineering Drilling Rig

I'm Online Chat Now

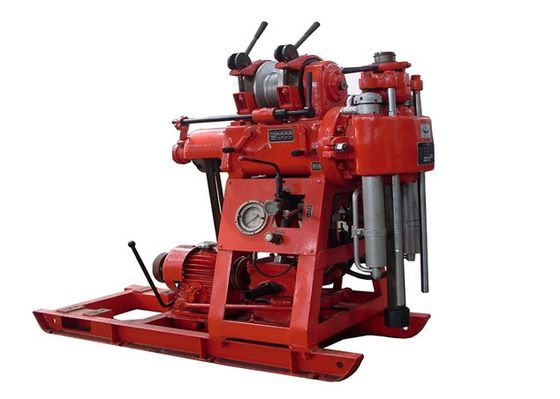

Red High Speed Compact Hydraulic Engineering Drilling Rig

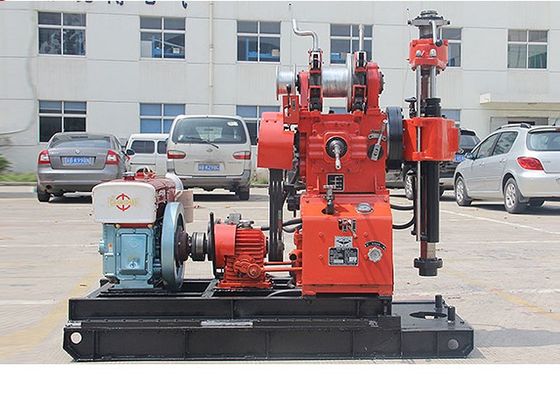

Red High Speed Compact Hydraulic Engineering Drilling Rig

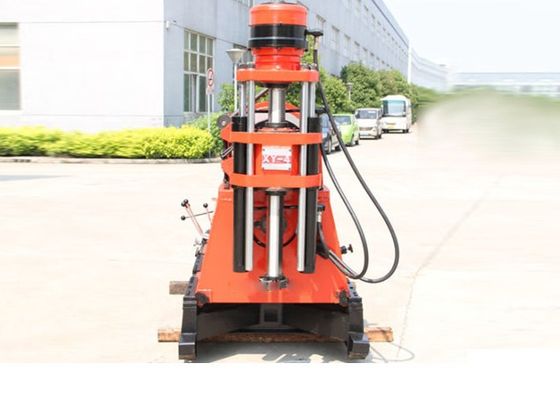

Red High Speed Compact Hydraulic Engineering Drilling Rig Red High Speed Compact Hydraulic Engineering Drilling Rig Red High Speed Compact Hydraulic Engineering Drilling Rig

Large Image :  Red High Speed Compact Hydraulic Engineering Drilling Rig

Product Details:

Place of Origin: CHINA
Brand Name: OEM
Certification: ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden cases standard export package
Delivery Time: 10-20 days working days
Payment Terms: T/T, L/C, T/T, Western Union
Supply Ability: Based on the detailed quotation
Detailed Product Description
Product Name: GXYB Drilling Rig Dimension(L*W*H): 1780x780x1520mm
Applicable Industries: Manufacturing Plant, Construction Works , Energy & Mining Power Type: Electric And Diesel Are Optional
Type: Core Drilling Rig Weight: 650kg
High Light:

Geological Drilling Rig


Compact Waterwell Drilling Rig


Hydraulic Engineering Drilling Rig


GXYB Pump-machine Integrated Engineering Survey Rig,Drilling Rig Machine


Product Description:
GXYB series pump-machine integrated engineering survey rig is suitable for engineering geological survey,
 general survey of solid deposits, blast holes (can be equipped with impactors), inspection holes for various concrete structures, micro pile drilling, dam grouting drilling, small water well Boring, drilling of soil anchor holes. Depending on the formation, drill bits such as carbide, diamond, and auger can be used for drilling.

Main Feature:
1. The pump-machine integrated structure reduces the area of the site, reduces one power engine, saves
energy, and reduces economic costs.
2. High input power, large output torque and strong drilling ability;
3. With hydraulic feed structure;
4. Hydraulic moving device is used to make openings (A, B, C configuration);
5. High-speed model is suitable for diamond drilling in hard rock formations;
6. Equipped with towing structure or loaded on track chassis with strong maneuverability;
7. Compact structure, small size, light weight, convenient disassembly and assembly;
8.There are many variable speed stages, and the process adaptability is strong;
9.With reversing device, low labor intensity and safety when handling accidents and unloading drill pipes;
10. Can be applied to hilly and mountainous operations.

Technical Parameters:


Vertical Shaft Speed Forward:61,163,338,654r/min Forward:82,220,465,883r/min
Reverse:45r/min Reverse:61r/min
Dimensions(Length x Width x Height) 1400×1000×1500mm 1780×780×1520mm
Weight (Excluding Power) 500Kg 650Kg
Let The Opening Way Out of the Box Power Head Hydraulically Moved Backward
Drill Pipe Clamping Method Ball Cassette Hydraulic Chuck Ball Cassette
Drilling Diameter 150mm,75mm
Drilling Depth 30m,150m
Drilling Inclination 0-360°
Stroke 500mm
Rated Pressure 20KN
Rated Lifting Force 25KN
Vertical Shaft Torque 1200N·m
Hoisting Ability 15KN
Lifting Speed Of Wire Rope 0.22,0.95,1.95,5.3m/s
Wire Rope Diameter 9.3mm
Rope Capacity 35m
Pump Type Horizontal Single-cylinder Double-acting
Maximum Pump Flow 104L/min
Maximum Allowable Pressure Of Water Pump 1.2MPa
Working Pressure Of Water Pump 0.7MPa
Pump Stroke Times 132min-1
Pump Cylinder Liner Diameter 80mm
Water Pump Piston Stroke 100mm
Diesel Engine Power And Speed Diesel Engine S1100M,11KW,2200r/min
Motor Power And Speed Electric Motor Y160M-4,11KW,1500r/min


Product Details Picture:


Red High Speed Compact Hydraulic Engineering Drilling Rig 0
