Engineering Construction Water Well Drilling Machine

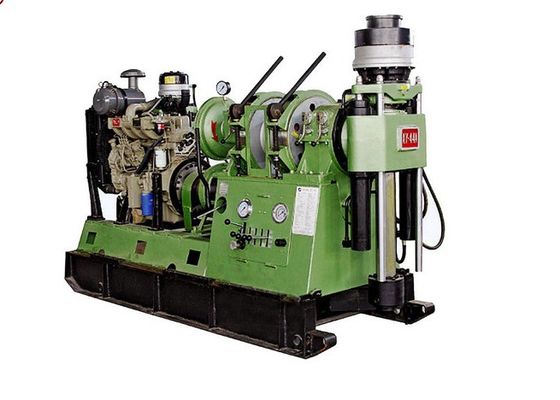

Large Image : Engineering Construction Water Well Drilling Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	OEM
Certification:	ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Wooden cases standard export package
Delivery Time:	10-20 days working days
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	Based on the detailed quotation

Contact Now

Detailed Product Description

Name:	Water Well Drilling Equipment	Product Name:	XY-44A Core Drilling Rig
Dimension(LWH):	3030x1100x1890mm	Weight:	2150kg
Applicable Industries:	Manufacturing Plant, Construction Works , Energy & Mining	Power Type:	Electric And Diesel Are Optional
Type:	Core Drilling Rig
Highlight:	Hydraulic Core Drilling Rig , XY-44 Waterwell Drilling Rig , Hydraulic Engineering Drilling Rig

Engineering Construction Water Well Drilling Machine

Product Description

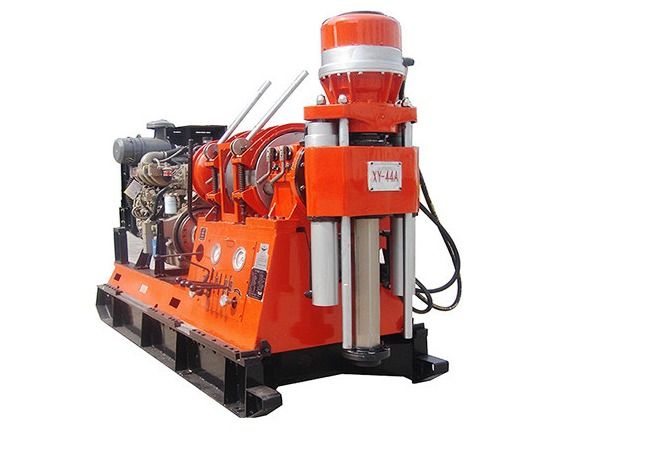

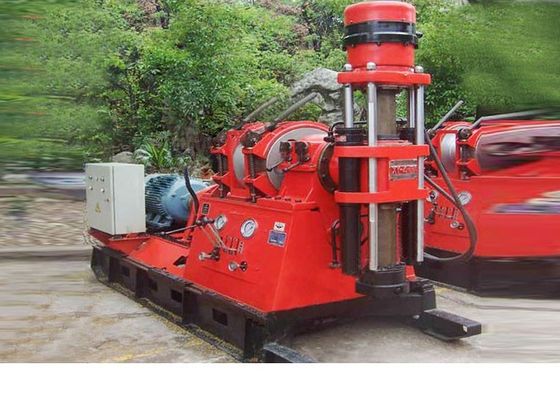

XY-44A drilling rig is a new product based on the improved design of XY-44 drilling rig. It mainly improves the original dry friction clutch from a single disc to a dual disc. Holes are easier and more convenient. This rig has various technical performances and characteristics of XY-44 rig, and has water brake. This rig is mainly suitable for core drilling with alloy and diamond drilling as well as engineering geological survey, hydrology and water well drilling, oil and gas extraction, and large-diameter foundation pile engineering construction. The rig has the advantages of reasonable structure, stable operation , reliable work, convenient and simple operation, and easy repair.

Technical Parameters

Drilling Capacity:Core Drill	Sorts of Drill Rod		Drill Rod Spec.(mm)		Drilling Depth(m)
	Home Made Drill Rod	Planer In and Out	Φ43×6		1500
			Φ54×6		1100
			Φ67×6		930
		Thickened Inner	Φ50×5.5		1400
			Φ60×6		1050
		Extracting Core with Wire Line	Φ55.5×4.75		1500
			Φ71×5		1100
			Φ89×5		900
	DCDMA (Diamond Core Drill Manufacturer Association) Made Drill Rod	Thickened Inner	BW		1350
			NW		1100
			HW		760
		Extracting Core with Wire Line	BQ		1500
			NQ		1200
			HQ		850
Basic Specifications	Drilling Angle				0~360°
	Dimension(L×W×H)				3030×1100×1890mm
	Weight(Without Power Unit)				2150Kg
Rotary Head	I.D of Spindle				93mm
	Rotary Speed of Spindle(Power Speed is 1480r/min)			Forward	80;148;212;247;308;456;650;945
				Reverse	66;201
	Max.Torque of Spindle				4300N·m
	Feeding Stroke				600mm
	Max.Feeding Capacity				90KN
	Max.Lifting Capacity				120KN
Hoist	Max.Lifting Capacity(Single Line)				45KN
	Lifting Speed				0.7;1.29;1.84;2.68m/s
	Diameter of Steel Wire Rope				17.5 or 18.5mm
	Capacity of Drum				110 or 90m
Water Brake	Work Rotary Speed				700-1800r/min
	Single Balance Speed				3-8m/s
	Single Balance Load				45KN
Oil Pump	Model				Single Gear Oil Pump
	Pressure,Displacement				20MPa, 20ml/r
Power Unit	R4105ZG4(Diesel Engine Model R4105ZG4)				62KW,2000r/min
	Y225M-4(Electric Motor Model Y225M-4)				45KW,1480r/min
