MDL-135H 140m Anchor Drilling Rig For Building Material

Brand Name:	OEM
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	Based on the detailed quotation

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,CE

Type:

Rotary Drilling Rig

Product Name:

MDL-135H Anchor Drilling Rig

Dimension(L*W*H):

5400x2100x2000mm

Weight:

6000kg

Applicable Industries:

Building Material Shops, Construction Works , Energy & Mining

Power Type:

Electric

Packaging Details:

Wooden cases standard export package

Supply Ability:

Based on the detailed quotation

Highlight:

140m Anchor Drilling Machine

Building Material Anchor Drilling Rig

Hydraulic Water Well Drilling Equipment

Product Description

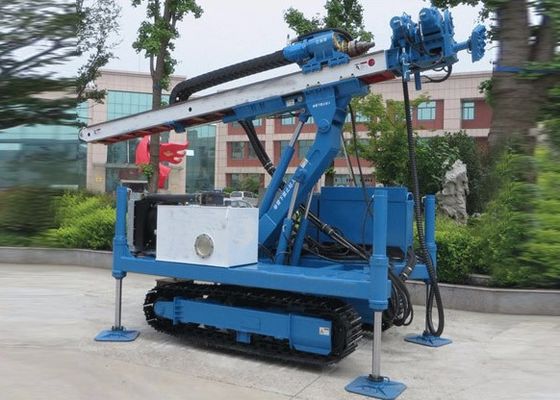

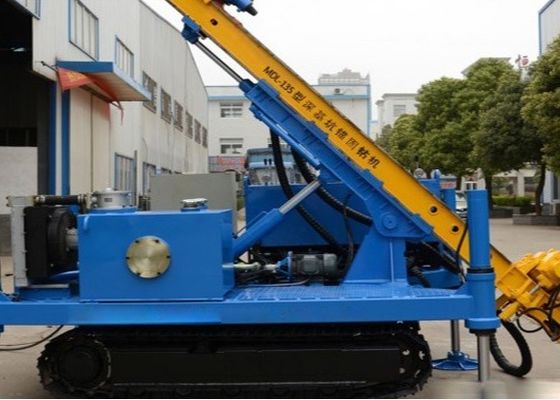

MDL-135H 140m Anchor Drilling Rig For Building Material

Discription:

1. MDL-135H drilling rig is a kind of full hydraulic multifunctional power head crawler drilling rig. It is mainly applied in drilling work of the anchoring hole of deep basement foundation,urban subway, slope supporting, tunnel, high building, airport, geothermal construction, pipe shed and so on.

2. The route of shaft bracket is 3.4 meters, so the 135H crawler anchor drilling rig can have complex rod & casing drill for 3 meters. The rig is applicable to rod boring, casing drilling and complex rod & casing drilling.

3. MDL-135H crawler drilling rig has level system (drill arm) is able to adjust mast in different angle and height without moving drilling rig, This can adjust to the max level of 3.3m.

4. The big arm like excavator with double cylinders has the stability of any lifting condition.

5. The crawler from the ground space is so large to adapt for bad environment construction.

6. The hydraulic clamp & wrench device enormously decreases the assistant time and also reduces the intensity of operating work.

Applications:

1. Urban subway, buildings, airport, ground source heat pump and other deep foundation pit for anchoring.

2. Jet grouting and dewatering.

3. This engineering drill rig can be used for drilling geothermal hole and well.

4. The blast hole,the anti-floating anchoring hole.

Specification:

Hole Depth	100-140m
Hole Diameter	150-250mm
Hole Angle(°)	0-90°
Output Rotary Speed of Power Head	10/20/25/40/50/60/70/100/120/140r/min
Stroke of Power Head	3400mm
Output Torque of Power Head	6800N.m
Stroke of Slide Frame	900mm
Lifting Force of Power Head	65KN
Feeding Force of Power Head	33kN
Power	Electric motor:	55+18.5+2.2KW
Weight	6000KG
Dimensions (L×W×H)	5400×2100×2000mm
