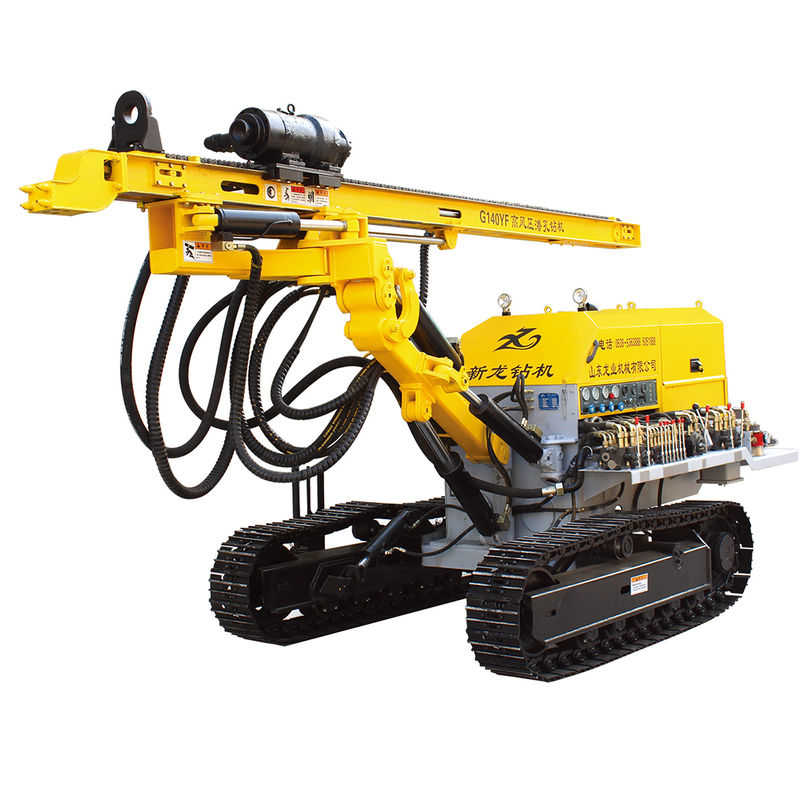

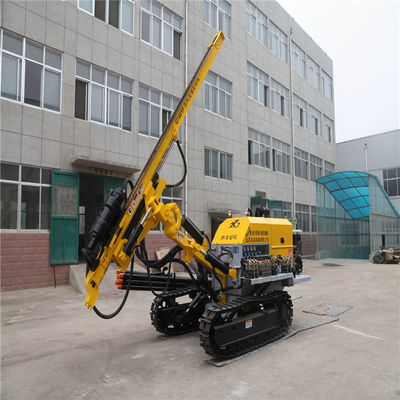

High Air Pressure DTH Crawler Anchor Drilling Machine

Large Image : High Air Pressure DTH Crawler Anchor Drilling Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	OEM
Certification:	ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Wooden cases standard export package
Delivery Time:	10-20 days working days
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	Based on the detailed quotation

Contact Now

Detailed Product Description

Applicable Industries:	Farms, Home Use, Construction Works	Type:	Rotary Drilling Rig
Power Type:	Diesel	Usage:	Coal Mining ; Acnor Drilling ; Ore Mining
Voltage:	24v	Dimension(LWH):	527019602300 (mm)
Weight:	4800 Kg	Core Components:	Motor, Engine
Key Selling Points:	Automatic	Drilling Depth:	60 Meters
Drilling Diameter:	115-140 Mm	Per Drill Rod Length:	3000 Mm
Rotation Speed (r/min):	0--126	Mast Pitch(°):	Up And Down Total 100
Mast Swing(°):	Left And Right Total 100	Boom Pitch(°):	Up And Down Total 60
Boom Swing(°):	Left And Right Total 70	Air Pressure(Mpa):	1.05--2.46
Highlight:	60m DTH Drilling Machine , Crawler Anchor Drilling Machine , DTH Crawler Drilling Rig

High Air Pressure DTH Crawler Anchor Drilling Machine

Product Description

Drilling rig superiority:

1. excellent steel quality of products

2. supply wearing parts for free

3. our crawler hydraulic drilling rig suitable formountainous and muddy pavement.

4. the YuChai Brand diesel engine life is very long

5. the pump desigh , can save the maintenance cost

6. the work efficiency is very high .

7. large hydraulic oil design,also separated controllable, meanwhile guarantee stability during fieldwork.

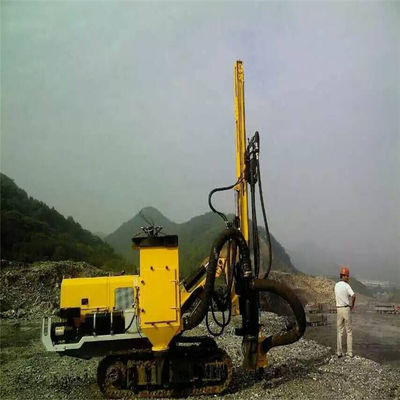

CTQ-G140YF High Air Pressure DTH crawler drilling rig with a low energy consumption, high efficiency , easy to transport . The drilling rig controllerd by hydraulic systems,only DTH hammer consume air, it saves purchase cost of a complete cost of equipment, The Rotary system adopt a new motor,in order to maintain large output of rotary torque, when dragging air compressor, it is mobile and flexible,strong climbing ability, suitable for rugged ground operations. This rig has high drilling efficiency, easy Maintenance, high reliability, better use for mining, highway,water conservancy, power station construction and other blasting hole projects.

Technical parameters

Air pressure(Mpa)	1.05-2.46
Air consumption (m3/min)	10-20
Bore diameter (mm)	115-140
Bore depth (m)	60
Once promotion(mm)	3000
Walk speed (kw/h)	0-2.5
For rock	F=6-20
Host power(kw)	56
Skid pitch(.)	up and down total 100
Skid swing angle(.)	up and down total 100
Boom pitch(.)	Left and right total 60
Boom swing angle(.)	Left and right total 70
Rotation speed(r/min)	0-126
weight(Kg)	4800
Dimension(LWH) (mm)	527019602300
