Crawler Mobile Drilling Machine

Brand Name:	OEM
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	Based on the detailed quotation

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,CE

Type:

Core Drilling Rig

Condition:

New

Power Type:

Diesel

Usage:

Coal

Voltage:

220V/380V

Dimension(L*W*H):

8492*2291*3054mm

Weight:

13500kg

Max.Torque:

800/1400N*m

Fuel Tank Capacity:

340L

Vibration Frequency:

2300min-1

Main Pump Max.pull-down Piston Push:

25Mpa

Hydraulic Oil Tank Capacity:

450L

Nominal Size:

50-255mm

Applicable Industries:

Building Material Shops, Construction Works

Packaging Details:

Wooden cases standard export package

Supply Ability:

Based on the detailed quotation

Highlight:

Hydraulic Core Drilling Rig

Anchor Crawler Drilling Rig

Hydraulic Crawler Drilling Machine

Product Description

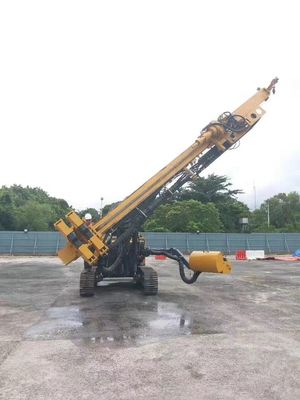

Crawler Mobile Drilling Machine

Product Description

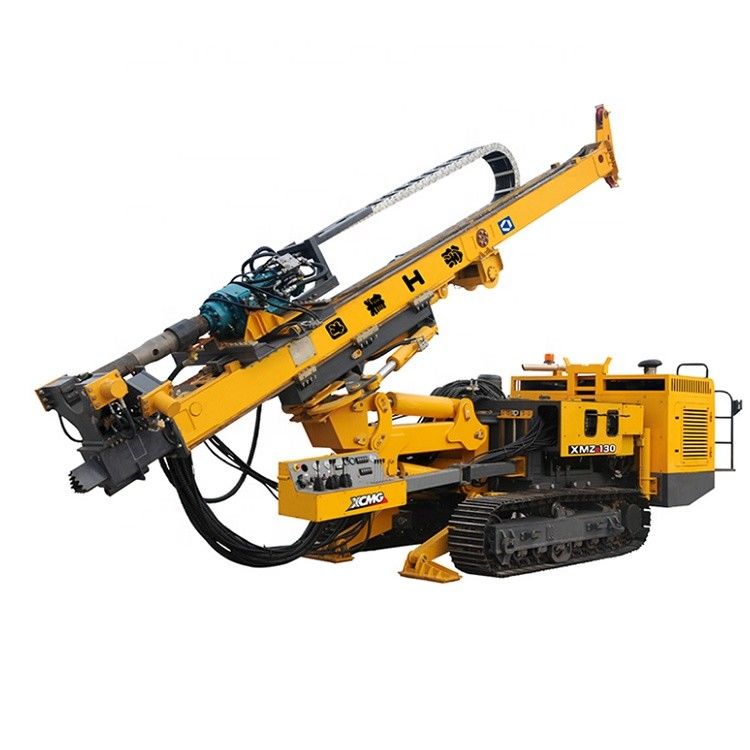

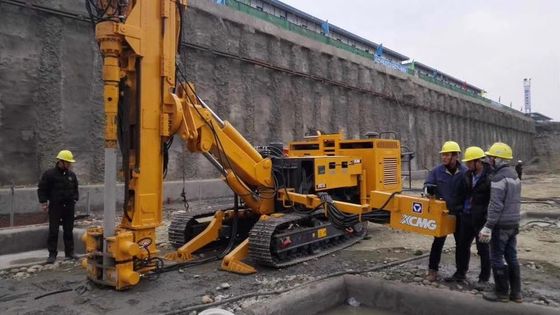

XMZ130 Hydraulic Crawler Anchor Drilling Rig is specially designed for Micro-piles work. The characteristic of this rig is excellent motility reliability and high productivity. The active and passive safety device can ensure the maximum security and provide a full range of protection. This machine can work in different types according to the needs. So this kind of drill rig can be used to drilling construction micro-pipe and anchoring applications .

1. There are each two hydraulic outriggers in rear and front of the drill rig,with the outriggers it is easily to adjust the degree of level of the machine and can effectively guarantee the rig body stability and the accuracy of hole.

2. The complex connecting rod derricking system with multiple degrees of freedom provides transport convenience, and make it possible that even working in a narrow and small work region.

3. It adopts the Cummins electric control turbo-supercharged engine to provide strong power and conformity with Euro III emission standard.

4. It adopts the Euro Drill HD5012 rotary head, the max. torque can be 14100Nm,high speed and low speed modes provide a high applicability of the machine in different layer.

5. The speed of pulling and feeding of the rotary head can be changed inhigh mode and slow mode, makes it more efficiency that when drilling and hoisting in slow mode and when loading and discharging in fast mode, makes it more efficiency.

6. The normal size of the rod can be passed through the clamps is 50~255mm,the maximum breaking torque of the clamp is 30kNm and maximum clamping force is 150kN, this configuration can easily satisfied the demand of normal project.

Product parameters

Description			Unit	Data
Engine	Model			QSB6.7-C170
	Rated power/speed		kW	129/2200r/min
	Max. Torque		N·m	800/1400
	Fuel tank capacity		L	340
Rotary head	Model			Euro Drill HD5012
	low operation	Max. torque	N·m	14100
	low operation	Rotary speed	r/min	39
	Fast operation	Max. Torque	N·m	7050
	Fast operation	Rotary speed	r/min	78
	Vibration power		N·m	650
	Vibration frequency		min-1	2300
Hydraulic system	Main pump Max. pull-down piston push		Mpa	25
	Main pump		L/min	176+129
	Auxiliary pump		L/min	43
	Hydraulic oil tank capacity		L	450
Hoist & Feed system	Feed type			Jack
	Feed stroke		mm	4714
	Maximum hoist pull		kN	100
	Maximum feed force		kN	50
	Maximum hoist pull speed		m/min	12.4
	Maximum feed speed		m/min	25.6
Winch	Line pull(1st layer)		kN	20
	Maximum rope speed		m/min	30
	Rope diameter		mm	12
	Rope capacity		m	50
Undercarriage	Travelling speed		km/h	3.5
	Max. climbable gradient of the overall unit		%	36
	Track shoe width		mm	400
	Over all width		mm	2250
	Overall length		mm	3040
	Average ground pressure		kPa	73
Clamps	Nominal size		mm	50-255
	Maximum Clamping force		kN	150
	Maximum breaking torque		kN·m	30
Dimension in transport condition (L × W × H)			mm	8492×2291×3054
Weight of overall unit(standard configuration)			kg	13500
