120m Anchor Drilling Machine

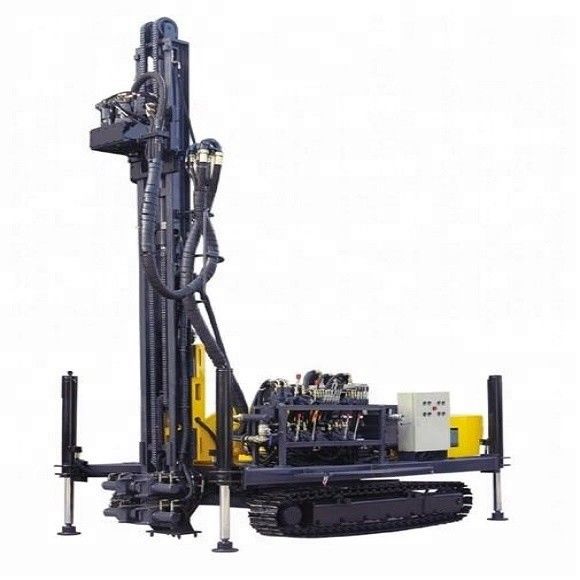

Large Image : 120m Anchor Drilling Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	OEM
Certification:	ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Wooden cases standard export package
Delivery Time:	10-20 days working days
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	Based on the detailed quotation

Contact Now

Detailed Product Description

Type:	Rotary Drilling Rig	Condition:	New
Power Type:	Electric	Usage:	Construction
Power:	45 Kw	Dimension(LWH):	5700 X 2300 X 2300mm
Weight:	7000 Kg	Name:	KMD 120
Highlight:	120m Construction Drill Rigs , Anchor Drilling Rig Machine , Anchor Construction Drilling Equipment

120m Anchor Drilling Machine

Products description

This KMD 120 anchor drilling rig is kind of electric crawler type self-guided driller, As light duty ,high efficent , and mutilfucntion

drilling machine, it can be used for the hole drilling in various projects like construction of subway, high building and airport, and

installation of ground source heat pump,This anchor drilling rig can use drill rod,drill rod combination and mud pump/clear water

pump,or drill rod and casting pipe for various kind of hole drilling.

Specification

Walking speed	0~2.5km/h
Electromotor	45kw + 15kw
Ground clearance	245mm
Foreleg cylinder stroke	1000mm
Hole depth	120m
Air pressure	1.05~2.46Mpa
Air consumption	16~30m3/min
Drill rod diameter	Φ89mm
drill rod length	3000mm
Hole diameter	Φ105~190mm
Pitch diameter	0~93º
Propulsion oil cylinder stroke	1750mm
Rotating speed	100 rpm
Rotation torque	100N¤m
Total weight	7000 kg
Dimension	5700 x 2300 x 2300mm

120m Anchor Drilling Machine 0

120m Anchor Drilling Machine 1
