Water Well Truck Mounted Drilling Machine

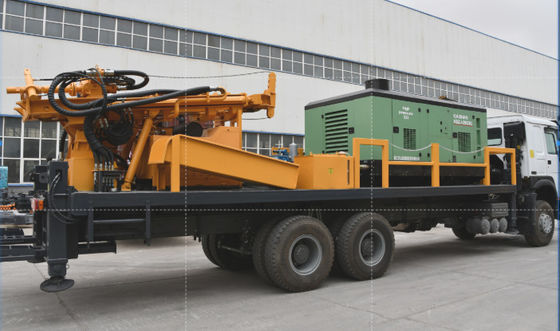

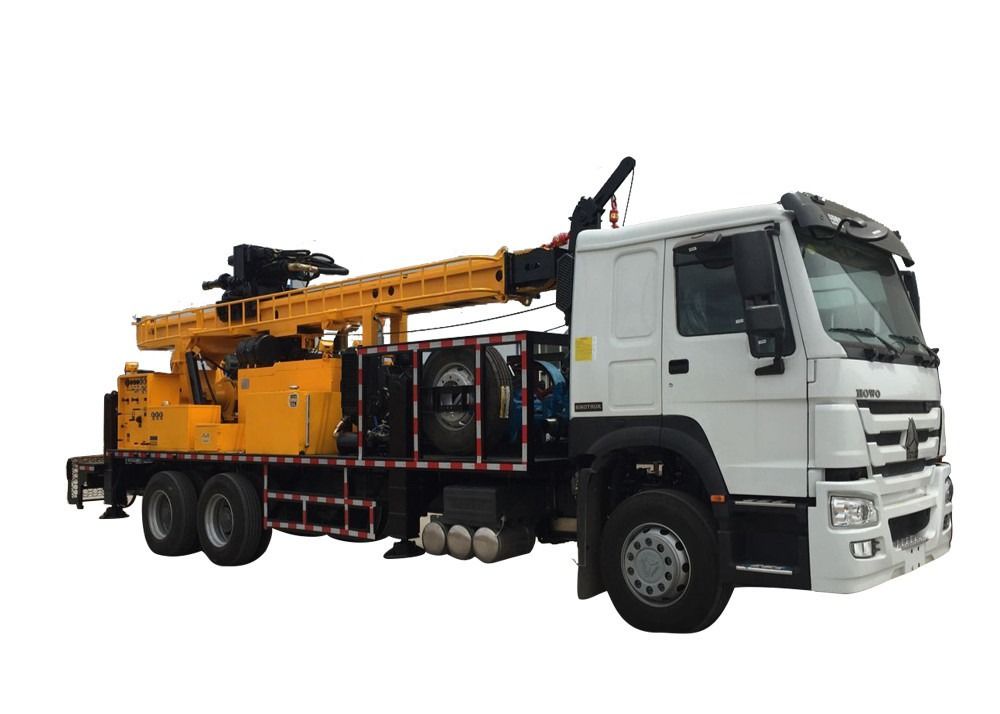

Large Image : Water Well Truck Mounted Drilling Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	OEM
Certification:	ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Wooden cases standard export package
Delivery Time:	10-20 days working days
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	Based on the detailed quotation

Contact Now

Detailed Product Description

Type:	Truck Mounted Water Well Drilling Rig	Power Type:	Diesel
Usage:	Water Well	Voltage:	24V
Dimension(LWH):	1100024807147mm	Weight:	22000kgs
Drilling Type:	DTH & Mud Rotary	Water Hole Diameter:	140-450mm
Water Hole Depth:	600m	Drilling Rod:	89,114mm
Drill Rod Length:	4000/4500mm	Engine:	CMS
Mud Pump:	BW450
Highlight:	Truck Mounted Rotary Drilling Rig , 600m Truck Mounted Drilling Rig , Hydraulic Water Well Drilling Rig

Water Well Truck Mounted Drilling Machine

JCS600 Multi-functional truck mounted water well drilling rig is a efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.

JCS600 truck mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.

Characteristics

1. The drilling rig can use air DTH Hammer drilling and mud drilling.

2. Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency. 3.The truck chassis adopts the 8X4 special crane chassis of brand Sinotruck Howo and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.
4. It's a hydraulic rotary drilling rig with directional circulation. It is equipped with BW450/2A mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
5. The power of drilling rig comes from a CMS engine,132kw CMS engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.

6. The rotary head, have two gear, rotation speed is 0-80 and160rpm stepless adjustment and the rotary torque is 6500-13000Nm.

Specification

General
1	Geology drilled		All kinds
2	Drilling Type		DTH & Mud Rotary
3	Drill system and operation		Hydraulic
4	Hole Diameter	mm	Φ140—Φ450
5	Hole Depth	m	600
6	Rotation Torque	Nm	6500 1st Gear
6	Rotation Torque	Nm	13000 2nd Gear
7	Rotation Speed	rpm	0-80 1st Gear
7	Rotation Speed	rpm	0-160 2nd Gear
8	Drill pipe diameter	mm	89/114
9	Drill pipe length	mm	4000/4500
10	Axial pressure	T	10
Winch
11	most. Lifting force	T	32
12	Lifting force of Main winch(Optional)	T	4
13	Lifting force of hoist	T	1.5
14	Length of steel wire rope(tool winch)	m	100
15	Lifting height of tool winch	m	8
Engine
16	Diesel Engine type	CMS
17	Rated Horse power	Kw	132
18	Electrical System	24	Volt
Compressor required
19	Compressor Type	Rotary Screw/Movable
20	Pressure Required	Mpa	1.05—6.9
21	Air consumption	m³/min	16—96
Truck
22	Manufacturer		SINOTRUCK HOWO
23	Model		ZZ1257M5841W
24	Engine		WD615.62
25	Rated Horse power	kw	196
26	Discharge Standard		EU-2
27	Drive type		6*4
28	most.Speed	Km/h	102.9
29	Steering wheel		left/right(Optional)
Mud Pump
30	Type		Hydrulic
31	Model		BW450
32	Stroke	mm	110
33	Displacement	L/Min	450
34	Discharge pressure (Mpa)	Mpa	2-3
35	Suction tube diameter	mm	89
36	Discharge pipe diameter	mm	51
37	Liner Diameter	mm	80
Generator
38	Generator		Optional
Dimension
39	Net Weight	T	22
40	Shipping Length	mm	10500
41	Shipping Width	mm	2480
42	Shipping Height	mm	3650
43	Working size(LWH)	mm	1100024807147
