BZC300ZY 300m Water Well Truck Mounted Drilling Machine

I'm Online Chat Now

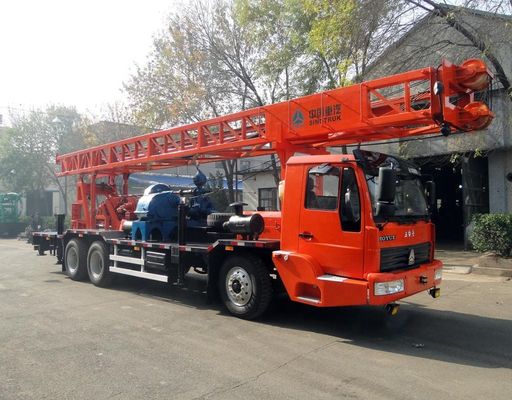

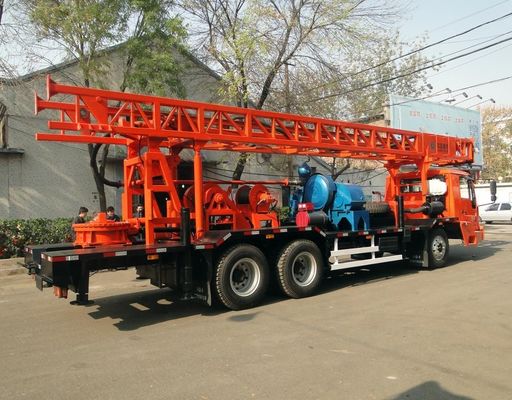

BZC300ZY 300m Water Well Truck Mounted Drilling Machine

BZC300ZY 300m Water Well Truck Mounted Drilling Machine
BZC300ZY 300m Water Well Truck Mounted Drilling Machine BZC300ZY 300m Water Well Truck Mounted Drilling Machine

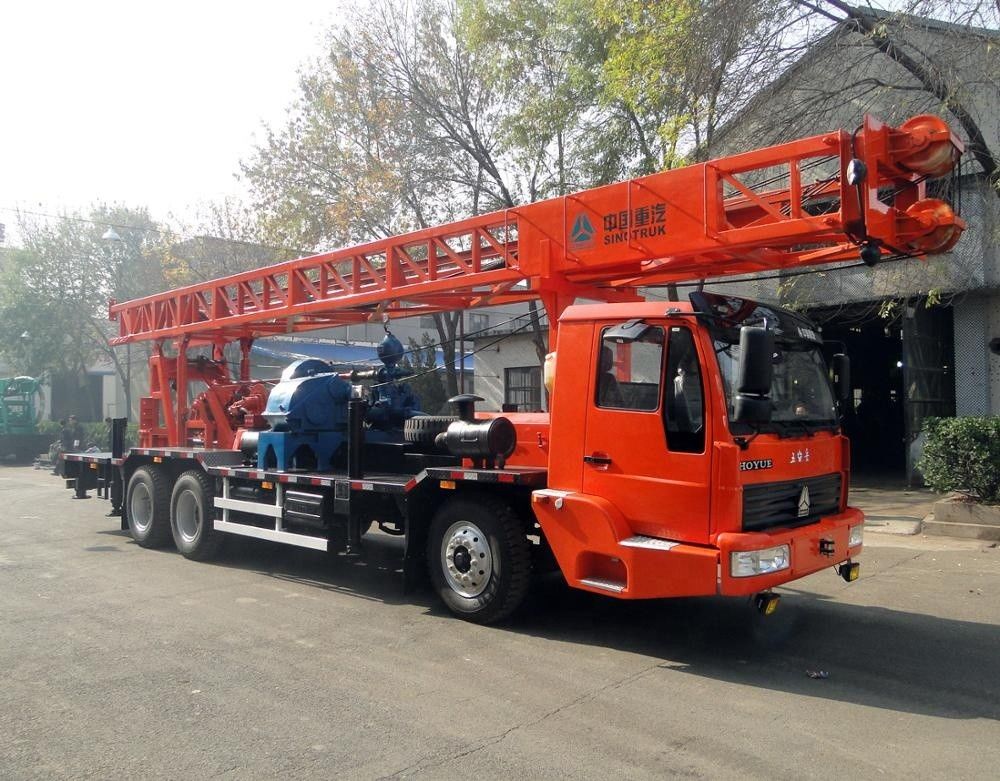

Large Image :  BZC300ZY 300m Water Well Truck Mounted Drilling Machine

Product Details:

Place of Origin: CHINA
Brand Name: OEM
Certification: ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden cases standard export package
Delivery Time: 10-20 days working days
Payment Terms: T/T, L/C, T/T, Western Union
Supply Ability: Based on the detailed quotation
Detailed Product Description
Drill Depth: 300m Power Type: Diesel
Usage: Water Well Voltage: 380V
Dimension(L*W*H): 12500*2480*3400MM Weight: 19.3T
Drill Diameter: 150-1500mm Chassis: SINO TRUCK EU III
Application: Water Well Drilling Method: Mud Rotary Drilling ,DTH
High Light:

Vehicle Mounted Drilling Equipment

,

Rotary Table Drilling Rig

,

300m Truck Mounted Drilling Rig

BZC300ZY 300m Water Well Truck Mounted Drilling Machine





More design advantages


1. BZC350ZY vehicle mounted drilling equipment is a rotary drilling rig.
2. The drilling rig is equipped with SINOTRUK  6*4 drive form special truck chassis, and the transfer case, main drive, gearbox, dual-winch, slurry pump, rotary table, drill tower and steel wire feeding system are all mounted on the chassis.
3. Power system
BZC350ZY truck mounted drilling rigs are equipped with automotive engines, and also additionally equipped with transfer case and hydraulic system. Hence, the truck and the drilling mechanism can work simultaneously.
4. Three-phase AC generating set provides the vehicle mounted drilling machine with convenience for welding operation and equipment maintenance at night.
5. BZC350ZY is equipped with dual-winch and drill tower pulley block, etc. which functions to increase the drilling pressure and assists the water well drilling rig in drilling into mud rock, and bed rock, etc. This design is very effective in improving drilling efficiency.
6. Driving system
This truck mounted drilling rig is principally mechanical driven. The drill tower and the four levelling legs are hydraulically controlled. The two mechanical legs, transfer case and slurry pump's valves are pneumatically controlled.
7. Power system
BZC350ZY truck mounted drilling rigs are equipped with automotive engines, and also additionally equipped with transfer case and hydraulic system. Hence, the truck and the drilling mechanism can work simultaneously.
8. Drilling method
A standard BZC350ZY truck mounted drilling rig adopts directional circulation drilling method. Equipped with BW850/2A slurry pump, it utilizes slurry as the drilling fluid, and finally achieves direct circulation drilling with the help of the high pressure plunger pump.
If equipped with proper drilling tools, the drilling machine can also achieve other drilling methods.



Applications


The rotary table of this truck mounted drilling rig comes with large torque and as a result the drill equipment makes a hole quickly. Currently, our drilling rig has found applications in water conservation projects, the drilling of industrial deep well, conventional water well and geothermal well, etc., and national defense fields, to name a few. It is applicable for drilling into clay, sand, bed rock, basalt strata, and more.



Standard configurations



Drilling depth (M)

80

300

Borehole diameter (mm)

1500

500

Rotary table speed (r/min)

21.2; 36; 63.2; 100.6; 155; 20.2 (reverse)

Rotary table torque (KN.m)

18; 10.6; 6; 3.8; 2.5; 18.9 (reverse)

Pull force of the main winch (with single winch rope) (KN)

30

Max. pull force of the main winch (KN)

180

Pull force of the auxiliary hydraulic winch (with single winch rope) (KN)

40

Max. pull force of the auxiliary hydraulic winch (KN)

160

Elevating capacity of the hook (KN)

180

Carrying capacity of the drill tower (KN)

180

Drill tower height (mm)

11500

Load bearing capacity (t)

25

Drill stem

Main drill stem (mm)

108×108×7500

Second drill stem (mm)

OD89×10×5500

Chassis

Model

TAZ5183TZJ (crane truck chassis)

Drive type

6×4

Engine

Model and type

CA6DE3-20E3 Euro III

Rated power (KW)

147

Rotation speed (r/min)

2300

Overall dimension (L×W×H)(mm)

11110×2490×2500

Model in National Announcement of P.R.China

TAZ5173TZJBZC350 water well drilling rig

Weight (kg)

19340

Transport dimensions (L×W×H) (mm)

12160*2490*3440

Overall dimension (L×W×H) (mm)

11110*2490*13110
