600m Geological Exploration Truck Mounted Drilling Machine

Brand Name:	OEM
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	Based on the detailed quotation

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,CE

CNC Or Not:

Normal

Drilling Speed:

7M/Hour

Voltage:

380V

Dimension(L*W*H):

5m*3.5m*5m

Drilling Depth:

600m

Drilling Diameter:

75-300mm

Spindle Speed:

30-1050r/min

Spindle Stroke:

600mm

Winch Lifting:

3000kg

Drill Mast Height:

6.5m

Application:

Water Well Drill, Geological Exploration

Truck Type:

482

Truck Power:

121kw

Weight:

Power:

39KW

Packaging Details:

Wooden cases standard export package

Supply Ability:

Based on the detailed quotation

Highlight:

600m Truck Mounted Drilling Rig

Geological Exploration Drilling Rig

Truck Mounted Water Well Drilling Rig

Product Description

Geological Exploration Truck Mounted Drilling Machine

Main Features

1. Drills up to 600m deep, 75-300mm diameter , trailer mounted.

2. hydraulic system: Hydraulic mast, Hydraulic spindle.

3. BW160/BW250 Mud Pump.high pressure and big flow.

4.Rig is Skid mounted,can move back-and-forth on the base.

3. Drill on soil, sand, gravel, thickhard rocks, marble, Quartz, and any other hard ground, etc.

4. In the accessory list there are alloy bit for soil, diamond bit for rock, PDC bit for small rock.

5. It is a full set of machine with all 600m accessory can be used upon arrival.

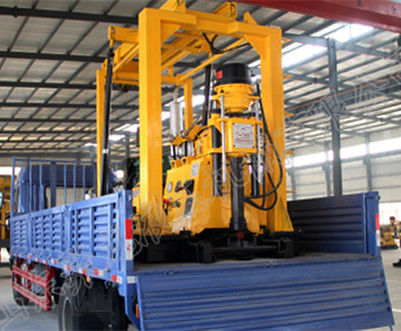

Detailed pictures

Product Application

Drill for Water well, Geological exploration / investigation, Soil sample taking,Soil test, SPT Test, Mining project, etc.

Specifications
Drilling depth	200m	600m
Drilling diameter	300-75mm	300-75mm
Drilling angle	90-75degree	90-75degree
Spinlde
Sindle speed	64-557r/min	30-1050r/min
Spindle stroke	450mm	600mm
Winch
Max lifting	1600kg	3000kg
Rolling lines	35m
Lifting speed	0.12-0.95m/s	0.3-1.9m/s
Line diameter	12.5mm	12.5mm
Drill mast height	6.5m	6.5m
Diesel engine	14.7kw/2200rmp	39kw/2400rmp
Mud pump	BW160	BW250
Truck type	4*2	4*2
Truck diesel	70KW	121KW

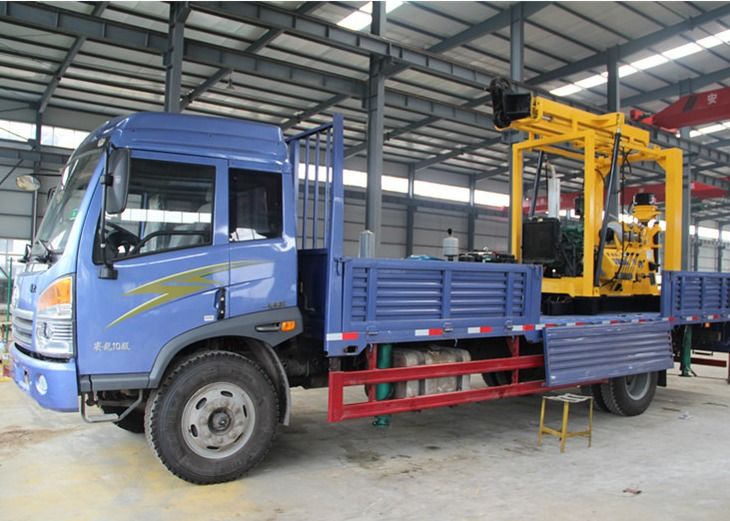

600m Geological Exploration Truck Mounted Drilling Machine 0

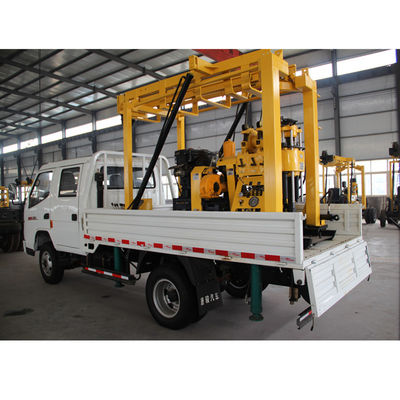

600m Geological Exploration Truck Mounted Drilling Machine 1

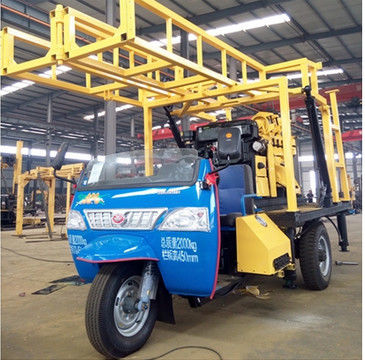

600m Geological Exploration Truck Mounted Drilling Machine 2

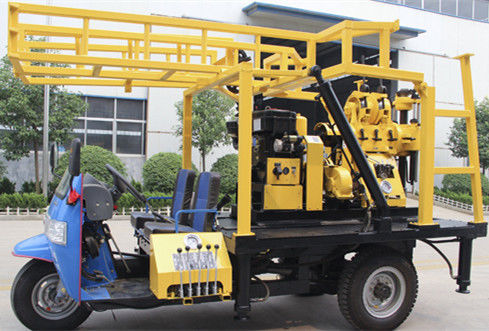

600m Geological Exploration Truck Mounted Drilling Machine 3
