Truck Mounted Deep Borehole Water Well Drilling Rig Machine

I'm Online Chat Now

Truck Mounted Deep Borehole Water Well Drilling Rig Machine

Truck Mounted Deep Borehole Water Well Drilling Rig Machine
Truck Mounted Deep Borehole Water Well Drilling Rig Machine Truck Mounted Deep Borehole Water Well Drilling Rig Machine Truck Mounted Deep Borehole Water Well Drilling Rig Machine

Large Image :  Truck Mounted Deep Borehole Water Well Drilling Rig Machine

Product Details:

Place of Origin: CHINA
Brand Name: OEM
Certification: ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden cases standard export package
Delivery Time: 10-20 days working days
Payment Terms: T/T, L/C, T/T, Western Union
Supply Ability: Based on the detailed quotation
Detailed Product Description
Applicable Industries: Construction Works  Type: Rotary Drilling Rig
Power Type: Diesel Usage: Water Well
Voltage: NO Dimension(L*W*H): 6800*2250*2850
Core Components: Pump, Engine Drilling Depth: 600-1200m
Drilling Diameter: 75-500mm Working Pressure(bar): 10.5-24.6bar
Engine: CUMMINS Drilling Speed: 42
Drill Rod Length: 1.5-3.0 Drill Angle ( ): 0-360
Selling Units: Single Item Single Package Size : 6800X2250X2550 Cm
Single Gross Weight: 6000.000 Kg Package Type: Hot Selling DTH Truck Water Well Drilling Rig With Air Compressor/air Rock Drilling Rig For Well
High Light:

1200m Truck Mounted Drilling Machine

,

Water Well Drilling Rig Machine

,

Rotary Truck Mounted Drilling Rig

Truck Mounted Deep Borehole Water Well Drilling Rig Machine





Product Description


The company focuses on the development of full-hydraulic multi-function water well drilling rigs for more than ten years, and has become a production service provider for domestic professional R&D and large-scale production of top-loading full hydraulic water well drilling rigs. There are 200, 300, 400, 450, 500, 600, 800, 1000, 1200, 1600, 2200 and other series of water well drilling rigs with a drilling depth of 200-2500 meters and a hole diameter of 100-1600mm.

Fully hydraulic control is convenient and flexible
The speed, torque, propulsion shaft pressure, reverse shaft pressure, propulsion speed and lifting speed of the drilling rig can be adjusted at any time to meet the needs of different drilling tools and different construction processes.


Top drive rotary propulsion
It is convenient for the drill pipe to be connected and unloaded, shortening the auxiliary time, and also facilitating the drilling with the pipe.

Multi-functional drilling
Various drilling processes can be used on such drilling rigs, such as: down-the-hole drilling, through-air reverse circulation drilling, gas lift reverse circulation drilling, cutting drilling, cone drilling, heel drilling, and The core is being developed and so on. The rig can be equipped with mud pumps, foam pumps and generators according to user requirements. The rig also comes standard with a variety of winches.

High work efficiency
Full hydraulic and top drive rotary propulsion, it is suitable for various drilling processes and various drilling tools. It is easy to operate and flexible, with fast drilling speed and short auxiliary time, so the work efficiency is high.

High leg crawler
The high-legged legs are easy to load and transport, and can be directly loaded without a crane. Tracked walking is more suitable for muddy on-site movement.

Positive and negative axial pressure regulation
The optimum impact efficiency of the various impactors has their optimum axial pressure and speed. During the drilling process, as the number of drill pipes increases, the axial pressure on the impactor also increases. Therefore, the positive and negative axial pressure valves are adjusted during construction to ensure that the impactor can obtain a more matching axial pressure. At this time, the impact efficiency is higher.

The role of the oil mister
Patented oil mister and oil mist pump. Lubricate the high-speed impactor at all times during the drilling process to extend its service life to a greater extent.

Drill chassis
It can be a crawler-type self-propelled chassis or a self-propelled chassis.



The second mobile phone in the industry is more valuable
Since the main components of the rig are all imported brands, the main frame of the rig is made of high-quality high-strength low-carbon alloy steel, which increases the overall strength and is super wear-resistant. There is also a heavier hydraulic system, which is very valuable.



Max drilling depth
1600 m
Drilliing diameter
105-1000 mm
Air pressure
1.65-8 Mpa
Air consumption
16-120 m³/min
Rod length
4.5
Rod diameter
127mm
Main shaft pressure
16 T
Lifting force
81T
Fast lifting speed
23 m/min
Fast fonwarding speed
37 m/min
Rotary torque
24500 Nm
Rotary speed
90 r/min
Big secondary winch lifting force
2.5/4 T(Optional)
Small secondary winch lifting force
1.5T
High leg stroke
1.7m
Drilling efficiency
10-35 m/h
Moving speed
3 Km/h
Uphill angle
21
Weight of the rig
30T
Dimension
8.6×2.6×3.5 m
Working condition
Loose layer and bedrock
Drilling method
Top drive hydraulic swing and propulsion, downhole impactor or mud drilling
Suitable hammer
Medium and high wind pressure series
Optional accessories
Mud pump, centrifugal pump, generator, foam pump

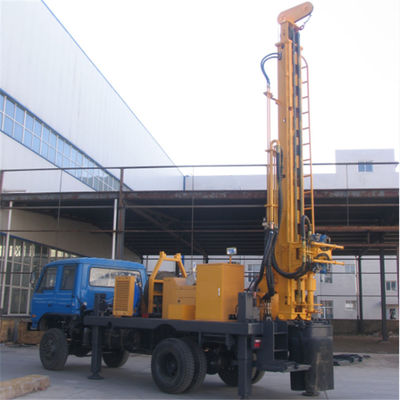

Truck Mounted Deep Borehole Water Well Drilling Rig Machine 0

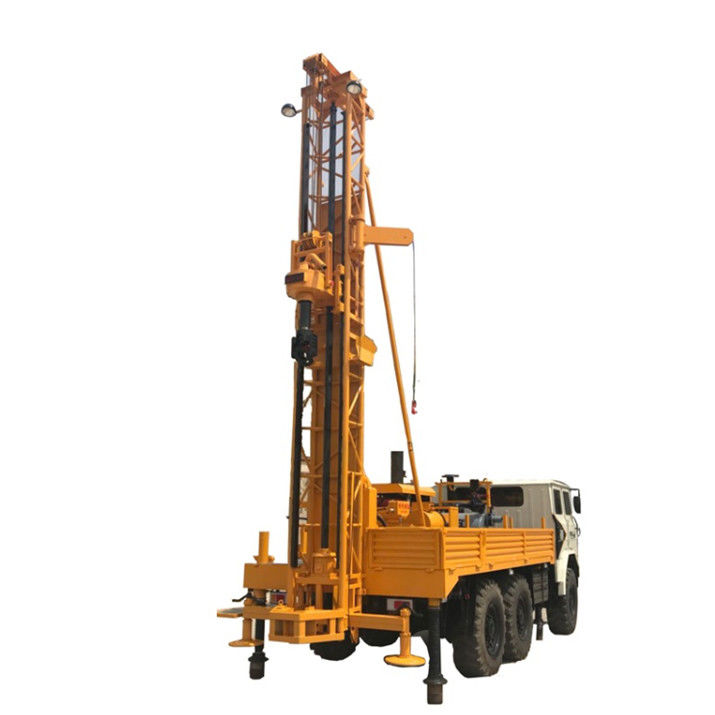

Truck Mounted Deep Borehole Water Well Drilling Rig Machine 1

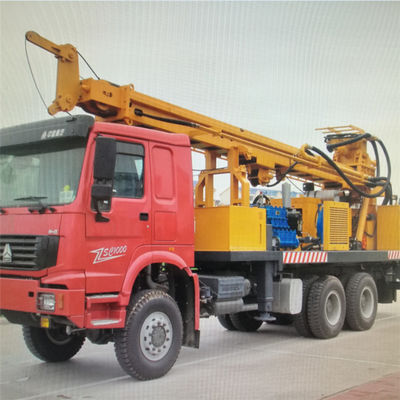

Truck Mounted Deep Borehole Water Well Drilling Rig Machine 2
