Hydraulic Borehole Drilling Rig

Brand Name:	OEM
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	Based on the detailed quotation

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,CE

Type:

Hydraulic Borehole Drilling Machine

Power Type:

Diesel

Usage:

Coal

Voltage:

220V/380V

Dimension(L*W*H):

16330*3000*3400mm

Weight:

58000KG

Applicable Industries:

Hotels, Garment Shops, Building Material Shops, Manufacturing Plant

Core Components:

Motor, Pressure Vessel, Pump, PLC, Gear, Bearing, Engine, Gearbox

Rated Power:

194kw

Max. Drilling Diameter:

1000mm

Max. Drilling Depth:

24m

Max Extraction Force:

520kN

Max. Traveling Speed:

1.5km/h

Track Shoe Width:

700mm

Packaging Details:

Wooden cases standard export package

Supply Ability:

Based on the detailed quotation

Highlight:

Crawler Borehole Drilling Rig

Hydraulic Crawler Drilling Rig

24m Crawler Drill Machine

Product Description

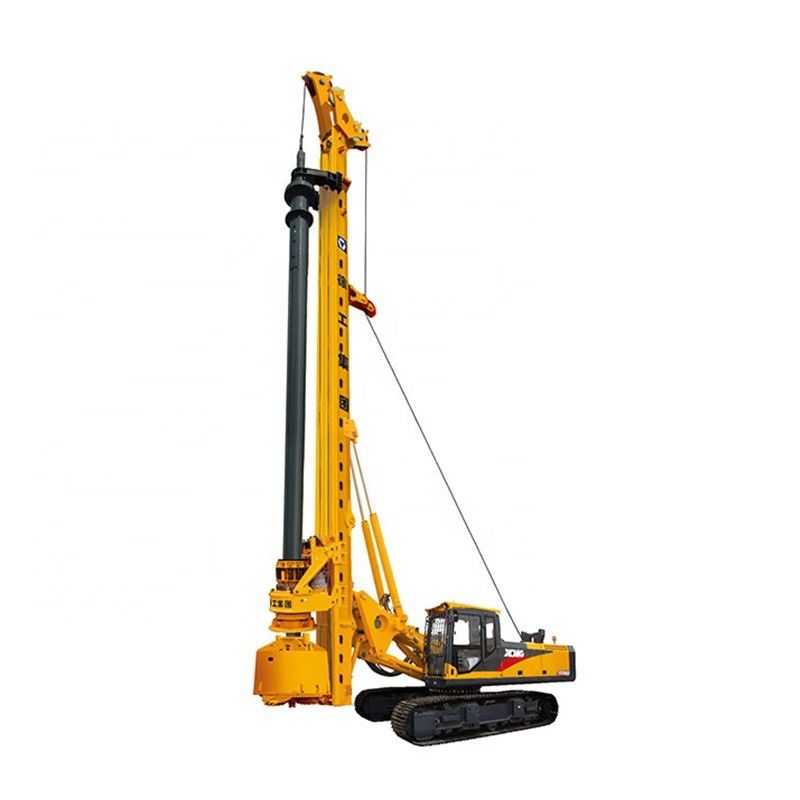

Hydraulic Borehole Drilling Rig

Product Description

It adopts dedicated hydraulic retractable crawler chassis and heavy slewing bearing and has high stability;

It adopts the front-located single-rope main winch structure to greatly prolong the service life of steel wire rope and lower the use cost;

Famous electric control turbo-supercharged engine is used. It complies with Euro III emission standard ,In addition, it has strong power, which is sufficient to satisfy the construction on the plateau. Its noise is up to the national standard;

Using full electronic control technology of bus, Improves the reliability of the whole vehicle and simplify hydraulic line, Fully reflects the people, machine, electricity and liquid integration;

Winch-crowd and sleeve-driven functions are available for selection to CFA, hydraulic casing oscillator, DTH hammer satisfy various needs of the users;

It is equipped with a centralized lubrication system as standard configuration; maintenance is easier;

Parameter

Main Technical Specification
Engine	Model		QSB6.7-C260
Engine	Rated Power	kW	194
Rotary Drive	Max. output torque	kN·m	180
Rotary Drive	Rotary speed	r/min	7~27
Max. Drilling Diameter		mm	1000
Max. Drilling Depth		m	24
Max Extraction Force		kN	520
Undercarrige	Max. traveling speed	km/h	1.5
	Max.grade ability	%	35
	Min. Clearance	mm	350
	Track shoe width	mm	700
	Distance between tracks	mm	2980-4300
Hydraulic System	Working pressure	Mpa	35
