Mobile Tractor Mounted Water Borehole Drilling Rig Machine

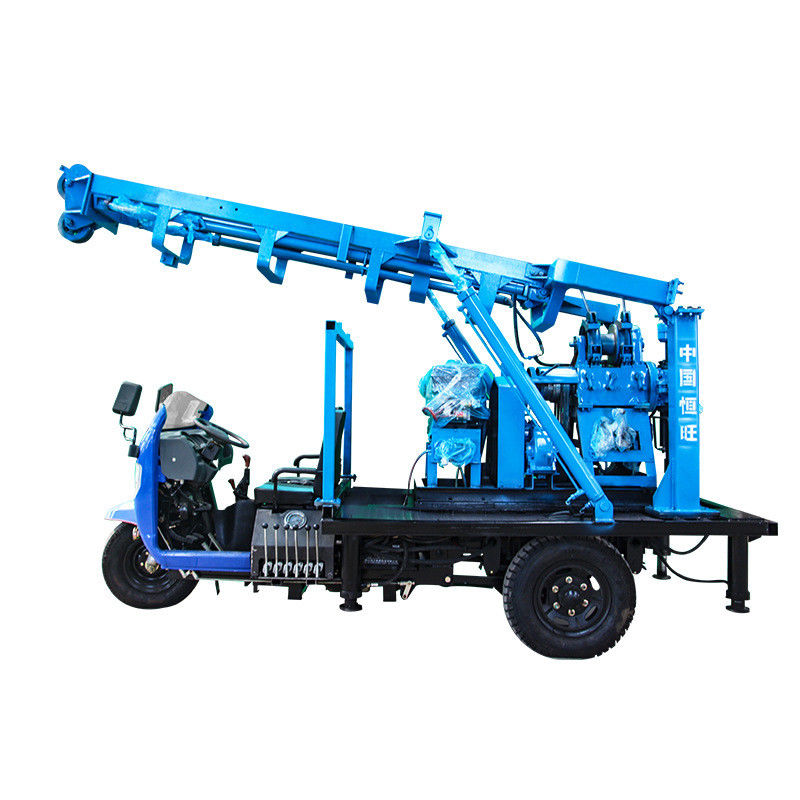

Large Image : Mobile Tractor Mounted Water Borehole Drilling Rig Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	OEM
Certification:	ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Wooden cases standard export package
Delivery Time:	10-20 days working days
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	Based on the detailed quotation

Contact Now

Detailed Product Description

Applicable Industries:	Farms, Construction Works , Energy & Mining	Type:	Rotary Drilling Rig
Power Type:	Diesel	Usage:	Water Well
Voltage:	220/380V	Dimension(LWH):	400017002300mm
Weight:	2750-3000kg	After-sales Service Provided:	Online Support
Drilling Depth:	160m-230m
Highlight:	230m Borehole Drilling Machine , Tractor Mounted Borehole Drilling Rig , Borehole Drilling Rig Machine

Mobile Tractor Mounted Water Borehole Drilling Rig Machine

Product Description

Borehole drilling rig is designed to meet the needs of high speed, high efficiency and high mobility in field drilling. The machine is reasonable in structure, simple in operation, convenient in maintenance and transportation and can be hoisted without crane after being transported to the working site.

It is suitable for geological survey exploration, basic exploration of roads and high-rise buildings, various structural inspection holds on concrete, river embankments, subgrade grouting hole and direct grouting, civil water wells and ground temperature central air conditioning.

Main features

1. Borehole drilling rigs are multi-function hydraulic spindle Rotary drilling rig, can equipped with HW-160S/190S/230S models.

2. Vehicle chassis Wezheng tricycle 7YP-1475D1, the drive system, winch and mud pump and other important accessories installed on the chassis, the layout is reasonable and compact, easy to operate.

3. Equipped with BW-160 or BW-250 mud pump, high pressure, big flow, it ensures to reach drilling depth and diameter.

4. Drilling rig is self-equipped with mobile devices, drilling rig can moves before and after the host inself to facilitate the operation of the wellhead.

5. Drilling tower is hydraulic landing manual folding tower, easy to operated, safe and convenient.

6. We have model HW-160L/HW-190L/HW-230L can choose.

Machine Specification
Model YY type configuration moving slipway	HW-160S / HW-190S / HW-230S
Drilling Depth(m)	160 / 190 / 230
Open Hole Dia. (mm) Soil/Rock	500 / 220 / 273
End Hole Dia. (mm)	75
Drill Rod Dia. (mm)	42 / 50 / 60
Drill Angle(°)	90-75
Matching Engine Power(KW)	13.2 / 15
Weight without Engine(Kg)	2750 - 3000
Machine Dimension LWH(m)	41.72.3

Size Information

Machine Specification	Model	HW-160S	HW-190S	HW-230S
	Drilling Depth(m)	160	190	230
	Open Hole Dia. (mm) Soil/Rock	500 / 220	500 / 220	500 / 273
	End Hole Dia. (mm)	75	75	75
	Drill Rod Dia. (mm)	42 / 50	42 / 50	42 / 50 / 60
	Drill Angle(°)	90-75	90-75	90-75
	Matching Engine Power(KW)	13.2	13.2	15
	Weight without Engine(Kg)	2750	2800	3000
	Machine Dimension LWH(m)	41.72.3	41.72.3	41.72.3
Spindle	Speed(r/min)	142/285/570	130/300/480/730/830/1045	64/128/287/557
Spindle	Stroke(mm)	450	450	450
Tricycle chassis	Model	wuzheng 7YP-1475DI	wuzheng 7YP-1475DI	wuzheng 7YP-1475DI
	Emission Standard	GB19756-2005(II)	GB19756-2005(II)	GB19756-2005(II)
	Rated Power(KW)	18.3	18.3	18.3
	Rated Speed(r/min)	2200	2200	2200
Drill Mast	Rated Load(Ton)	18	18	18
Drill Mast	Effective Height(m)	6.5	6.5	6.5
Mud Pump	Flow(L/min)	160	160	160
	Max. Pressure(MPa)	1.3	1.3	1.3
	Back and Forth Times/min	165	165	165
	Inlet Hose Dia. (mm)	51	51	51
	Outlet Hose Dia. (mm)	32	32	32
