Build Construction 25m Rotary Borehole Drilling Machine

Brand Name:	OEM
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	Based on the detailed quotation

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,CE

Type:

Rotary Drilling Rig

Power Type:

Diesel

Usage:

Build Construction

Voltage:

Diesel Engine Driven

Dimension(L*W*H):

10100x2600x3500mm

Weight:

26t

Applicable Industries:

Hotels, Manufacturing Plant, Construction Works , Energy & Mining

Core Components:

Motor, Pressure Vessel, Pump, PLC, Gear, Bearing, Engine, Gearbox

Application:

Construction Works , Energy & Mining

Feature:

High Drilling Efficiency

Drilling Depth:

25m

Drilling Diameter:

1800mm

Rated Power:

154kW

Max. Output Torque:

80kn.m

Max. Traveling Speed:

2.6km/h

Rotation Speed:

17-40r/min

Max.pulling Force:

100kN

Packaging Details:

Wooden cases standard export package

Supply Ability:

Based on the detailed quotation

Highlight:

Rotary Borehole Drilling Machine

25m Borehole Drilling Equipment

Build Construction Borehole Drilling Rig

Product Description

Build Construction 25m Rotary Borehole Drilling Machine

Specification

Description		Unit	Data
Max. Drilling Diameter		mm	1800
Max. Drilling Depth		m	25
Engine	Model	/	Cummins GBT5.9-C210
Engine	Rated Power	kW	154
Rotary Drive	Max. output torque	kN .m	80
Rotary Drive	Rotary speed	r/min	17-40
Pull-Down Cylinder	Max.pull-down piston push	kN	80
	Max.pull-down piston pull	kN	100
	Max.pull-down piston stroke	mm	2000
Main Winch	Max.pulling force	kN	100
	Max. single-rope speed	m/min	70
	Diameter of the steel wire rope	mm	24
Auxiliary Winch	Max.pulling force	kN	60
	Max. single-rope speed	m/min	54
	Diameter of the steel wire rope	mm	16
Traveling	Max. traveling speed	km/h	2.6
	Max. traveling speed	km/h
	Min.ground claerance	mm	340
	Approach angle	°	21
	Departure angle	°	18
	Max.grade ability	%	30
Overall Drilling Weight		t	26
Dimension	Transportation condition(L×WH)	mm	10100×2600×3500

Product Display

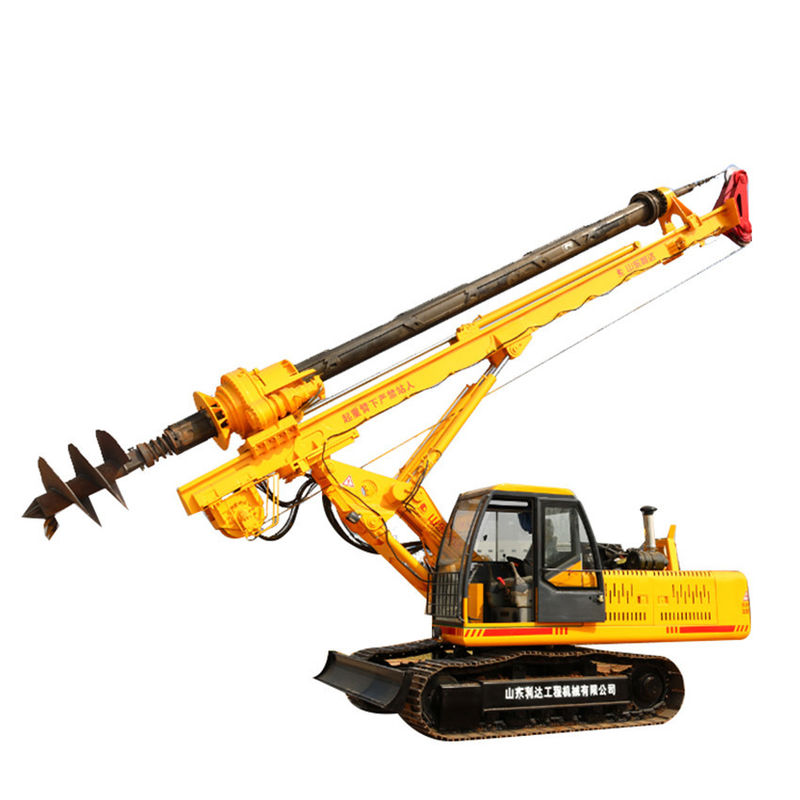

Build Construction 25m Rotary Borehole Drilling Machine 0

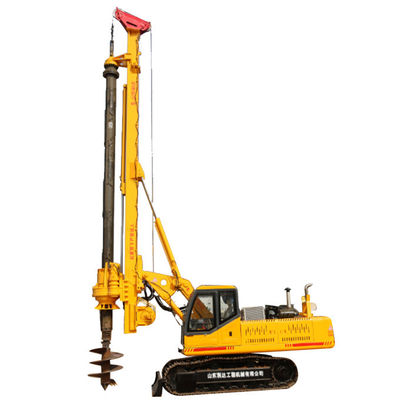

Build Construction 25m Rotary Borehole Drilling Machine 1
