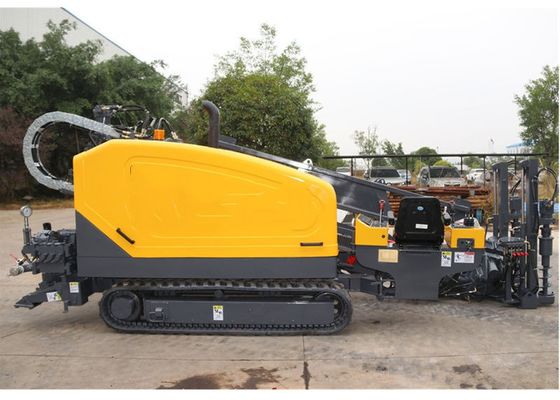

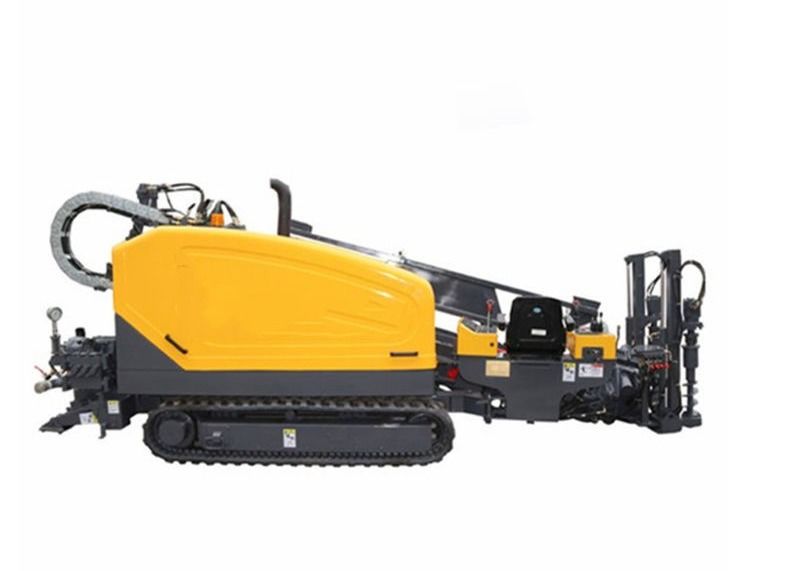

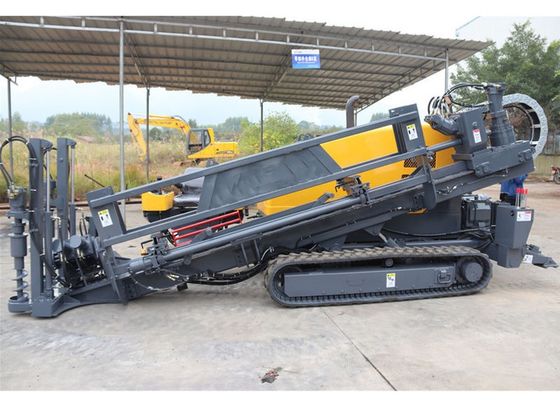

Construction Works Horizontal Directional Drilling Equipment

Large Image : Construction Works Horizontal Directional Drilling Equipment

Product Details:

Place of Origin:	CHINA
Brand Name:	OEM
Certification:	ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Wooden cases standard export package
Delivery Time:	10-20 days working days
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	Based on the detailed quotation

Contact Now

Detailed Product Description

Condition:	New	Applicable Industries:	Construction Works , Trenchless
UNIQUE SELLING POINT:	Easy To Operate, Efficient	Overall Weight:	5240KG
Overall Size:	5761mmx1872mmx2051mm	Maximum Push Pull Power:	Level 1-100KN Level 2-40KN
Maximum Push And Pull Speed:	Level 1 23.8m/min Level 259.3m/min	Maximum Output Torque:	3029 Nm
Maximum Gradient:	20°	Entry Angle:	18°
Engine Rated Power/rotation Speed:	74Kw/2200Rpm	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Highlight:	Construction Horizontal Drilling Machine , Horizontal Directional Drilling Rigs , 3029 Nm Horizontal Drilling Rig

Construction Works Horizontal Directional Drilling Equipment

Product Description

NAME	PAREMETER	REMARKS
Overall weight	5240KG	without rod
LxWxH Overall size	5761mmx1872mmx2051mm	Horizontal status of boom
Maximum push pull power	Level 1-100KN Level 2-40KN
Maximum push and pull speed	Level 1 23.8m/min Level 259.3m/min
Maximum output torque	3029 Nm
Maximum rotation speed	191 Rpm
Engine rated power/rotation speed	74Kw/2200Rpm
Maximum flow rate of mud pump	160 Lpm
Maximum pressure of mud pump	7 Mpa
Speed of rubber track	0-1.7 Kmph
Entry angle	18°
Maximum gradient	20°
Maximum diameter of back reaming	Φ400

Product performance description

HL510B, Horizontal Directional Drilling is a new dilling machine which developed independently based on well absorbing the domestic, overseas superior technology of the similar product and it unites the domestic market demand. The machine is characteric of novel design, perfect performance, handsome shape, elaborate works, and boats high performance price ratio.
