350KN Crawler Horizontal Directional Drilling Machine

Brand Name:	OEM
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	Based on the detailed quotation

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,CE

Condition:

New

Type:

Rotary Drilling Rig

Power Type:

Diesel

Usage:

Pipeline Laying

Voltage:

153KW

Dimension(L*W*H):

6000*2250*2350mm

Weight:

10 Ton

Core Components:

Pump, Gear, Engine

Key Selling Points:

Easy To Operate

Pullback Force:

350KN

Thrust Force:

350KN

Spindle Torque:

13500Nm

Spindle Stroke:

3500mm

Diameter Of Guide Hole:

130mm

Entry Drill Angle:

8-20°

Drill Rod:

73*3000mm

Diesel Engine:

153KW/2200rpm

Traveling Type:

Rubber Crawler

Packaging Details:

Wooden cases standard export package

Supply Ability:

Based on the detailed quotation

Highlight:

350KN Crawler Drilling Machine

Hydraulic Horizontal Drilling Machine

Crawler Horizontal Drilling Rig

Product Description

350KN Crawler Horizontal Directional Drilling Machine

Product Description

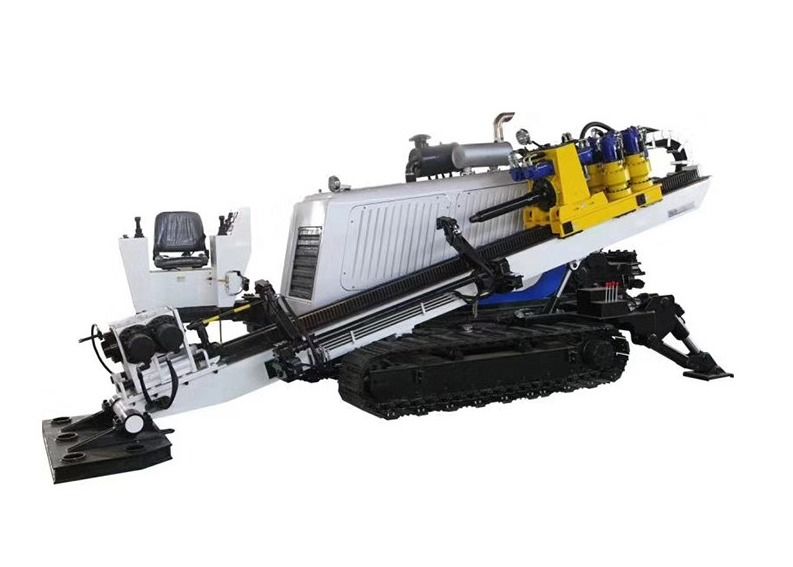

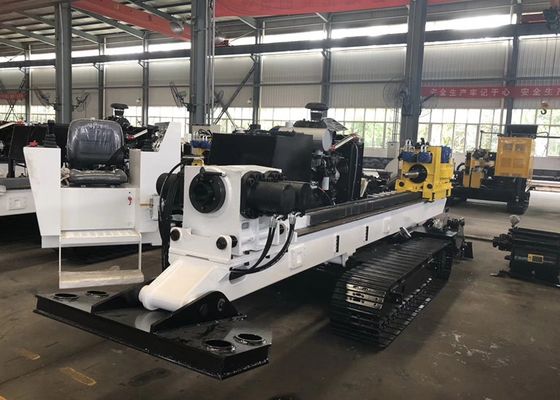

The FDP-35 Horizontal Directional Drilling Rig is a full hydraulic crawler rig. Advanced structure simple, easy to control, power head with rack and pinion drive, wireless remote control walking. The main hydraulic components are brand-name products supporting. Machine center of gravity is low, good stability, handsome in appearance. Diesel low-emission, professional noise reduction design, more suitable for urban construction.

Technical Parameters

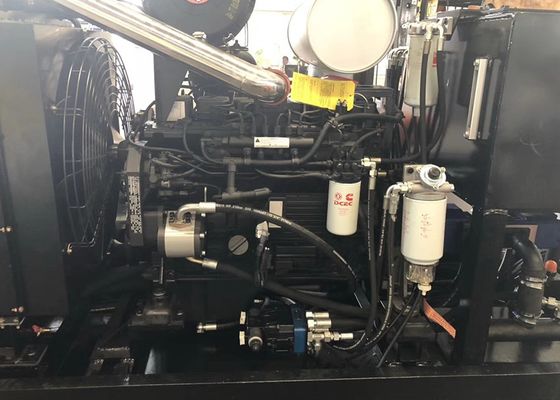

Diesel Engine Power	Cummins QSB5.9-C210 (153KW/2200rpm)
Max.Spindle Torque	13500N·M
Max.Pullback Force	350KN
Max.Thrust Force	350KN
Spindle Speed	0-48, 0-96rpm
Spindle Stroke	3500mm
Diameter of Guide Hole	130mm
Entry Drill Angle	8-20°
Pressure of Hydraulic System	20MPa
Traveling Speed	2-2.6km/h
Structural Style	Integrated with Rubber Crawler and Mud Pump
Max. Flow Rate of Mud Pump	320L/min
Max. Pressure of Mud Pump	8MPa
Drill Rod (Dia.× Length)	73×3000mm
Guide Bit	130mm
Reamer	350, 400, 500, 600, 750, 850
Dimension (L×W×H)	6000×2250×2350 mm
Weight	10000kg
