Rotary Hydraulic Horizontal Directional Drilling Machine

Large Image : Rotary Hydraulic Horizontal Directional Drilling Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	OEM
Certification:	ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Wooden cases standard export package
Delivery Time:	10-20 days working days
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	Based on the detailed quotation

Contact Now

Detailed Product Description

Features:	Hydraulic Feed,top-drive Head	Applicable Industries:	Construction Works , Energy & Mining
Condition:	New	Type:	Rotary Drilling Rig
Power Type:	Diesel	Usage:	Water Well, Soil And Rock Drilling ,rock Anchoring, Anchoring Bar
Weight:	352510001225	Construction Technology:	DTH Hammer Drilling Technology, Rotary Drilling Technology.
Application:	Ore, Mining,blasting Rock,mine Project	Power Type:	Electric Motor Y160M Or Diesel Engine S1100
Drilling Capacity:	60-30 M
Highlight:	Hydraulic Horizontal Drilling Machine , Rotary Water Well Drilling Rigs , Water Well Horizontal Drilling Rig

Rotary Hydraulic Horizontal Directional Drilling Machine

Specifications:

1. ISO9001-2000 certificate.

2. hydraulic control.

3. Mechanical transmission,drilling efficiently.
4. power , flexible and easy manitenance.

5. big pull force, SCB32/12 double gear oil pump.
6. large torque, wide range of speed, top-drive head.

Applications:

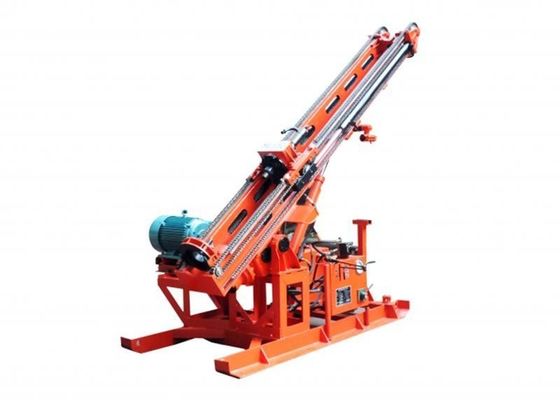

MGJ-50 Top Drive Head Portable Drilling Rig is mainly used for soil and rock anchoring, consolidating and strengthening foundation of highway and dam and retaining wall, preventing soil and rock from collapsing, supporting in deep foundation pit, pin timbering in underground engineering and handling the foundation of skyscraper.

Features:

1. Top head drive drill, mechanical transmission, hydraulic feed and drilling angle range(one plane):

180° for electric motor, 90°for diesel engine.

2. Top-drive head travels 2300 mm,Chongqing exploration machinery factory can provide various drill rig

mast to meet requirement of construction in confined spaces.

3. The drill rig is suitable for confined space working field.Down-hole hammer is main drillinh method,efficiently as well as rotary drill with high-speed.

4. The Man portable drilling rig is simple structure,safe and reliable.

5. Skid frame and wheeled frame for your choice.

Technical Specification of Hydraulic wide speed big pull force horizontal directional drilling machine :

hole dia (mm)	110-180		drilling capacity (m)	60-30
angle range	electric motor0-180°; diesel engine 0-90°
Top-drive head speeds (r/min)	power type		electric motor	diesel engine
	low series	forward	32;59;108;187	40;74;135;233
		reverse	26	32
	high series	forward	59;110;200;343	74;138;250;429
		reverse	48;	60
Max torque(Nm)	2800
top-drive head travel(mm)	normal mast		2300(single rod length 2000)
	shorter mast		1500(single rod length 1200)
	shortest mast		1200(single rod length 800)
pull force(KN)	14.6,22 for elevation(90°-180°)
push force(KN)	14.6,22 for elevation(90°-180°)
hoist speeds(m/s)	0.259,0.393 for elevation(90°-180°)
oil pump	SCB32/12 double gear oil pump
Power uint	electric motor Y160M;diesel engine S1100;11KW(Anchoring drilling)
overal dimensions(LWH)(mm)	type		transportation	weight(kg)
	normal mast		3525×1000×1225	850
	shorter mast		2725×1000×1225	780
	shortest mast		2425×1000×1225	72
