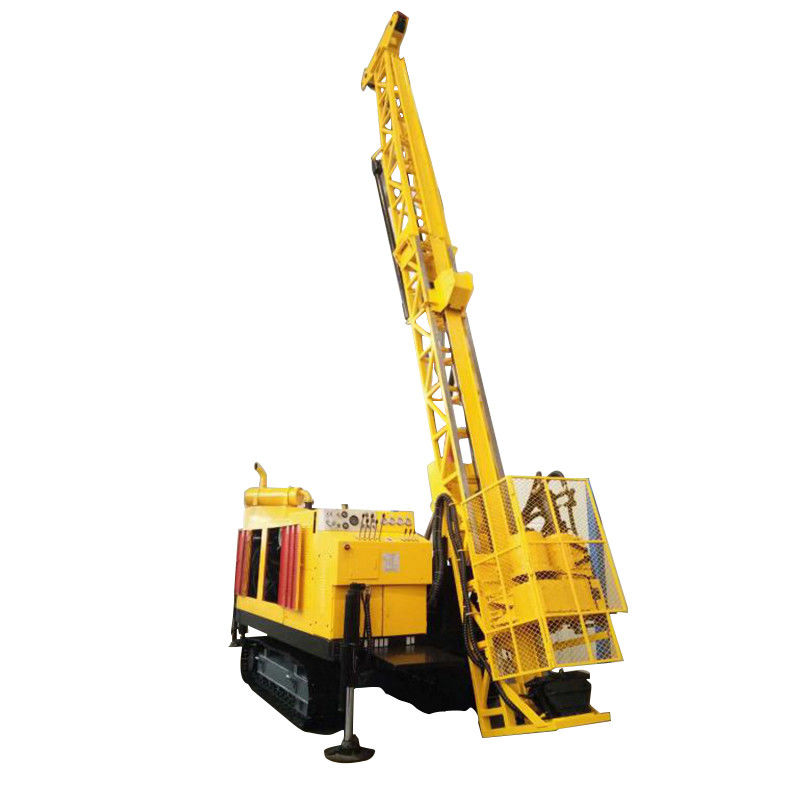

Crawler Mining Core Drilling Rig

Crawler Mining Core Drilling Rig
Crawler Mining Core Drilling Rig Crawler Mining Core Drilling Rig

Large Image :  Crawler Mining Core Drilling Rig

Product Details:

Place of Origin: CHINA
Brand Name: OEM
Certification: ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden cases standard export package
Delivery Time: 10-20 days working days
Payment Terms: T/T, L/C, T/T, Western Union
Supply Ability: Based on the detailed quotation
Detailed Product Description
Applicable Industries: Manufacturing Plant, Energy & Mining Condition: New
Type: Core Drilling Rig Power Type: Diesel
Usage: Ore Dimension(L*W*H): 5300*2200*2820
Weight: 7800kg Name: Hydraulic Surface Core Drilling Rig
Application: Geological Exploration Drill Angle: -90~0°
Drill Head Max. Lifting Force: 108KN Drill Head Max. Thrust Force: 55KN
Mast Sliding Distance: 800mm Engine Power: 125KW/2000rpm
Highlight:

Hydraulic Crawler Drilling Rig

,

Hydraulic Crawler Drill Machine

,

Geological Exploration Drilling Rig

Crawler Mining Core Drilling Machine Rig​





YDX-Series mining core drilling machine is one kind of hydraulic top drive rotary head type diling rig which is mainly used in diameter diamond diling of metal and nonmetal solid deposit exploration. It can also be used in carbide bit core drilling. It is used to bore verical holes as well as inclined holes, which is also applied in engineering boreholes of hydrology water wells, petroleum or gas field exploration, dike & dam cement grouting, tunnel ventilation and water draining, etc.



Model

YDX-1200L

YDX-120OT

Borehole Diameter/ Depth

BQ/1400m;  NQ/1200m;

HQ/850m;  PQ/600m

Drill Angle

-90~0°

Drill Head Rotary Speed(FR/RE)

113-165rpm; 237-345rpm;

437-636rpm; 750-1100rpm

Max Output Torque of Drive Power Head

5270Nm

Drill Head Feeding Stroke

3500mm

Drill Head Max. Lifting Force

108KN

Drill Head Max. Thrust Force

55KN



Main Winch (Lifting Drill Rod)

 Max Lifting Ability

75KN

Hoisting Speed

0.62m/s

Assistant Winch (Wire-line Coring)

Max Lifting Ability

1200KN

Hoisting Speed

2.01m/s

Mast Sliding Distance

800mm

Engine Model

6BTA5.9-C125

Engine Power

125KW/2000rpm

Chassis Model

Crawler type

(YDX-1200)L

Trailer-mounted (YDX-1200)T

Overall Dimension(Drill Reduce Type)

5300×2200×2820mm

5300×1950×2200mm

Drilling Rig Weight,appx.

7800kg

6500kg

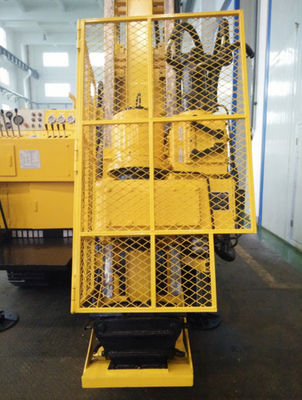

Crawler Mining Core Drilling Rig 0
