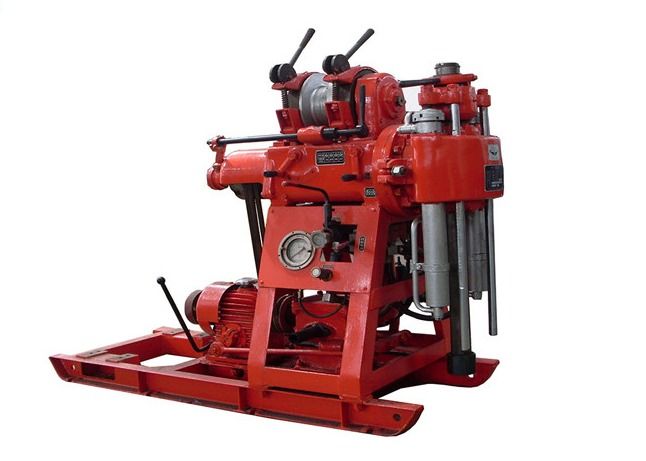

Geological Exploration 1000m Hydraulic Core Drilling Rig

Brand Name:	OEM
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	Based on the detailed quotation

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,CE

Product Name:

XY-4A Hydraulic Core Drilling Rig

Dimension(L*W*H):

2680x1100x1935mm

Weight:

1990kg

Applicable Industries:

Manufacturing Plant, Construction Works , Energy & Mining

Power Type:

Electric,Diesel Engine

Type:

Core Drilling Rig

Packaging Details:

Wooden cases standard export package

Supply Ability:

Based on the detailed quotation

Highlight:

Mining Core drilling equipment

XY-4A Hydraulic Core Drilling Rig

Geological Exploration Drilling Rig

Product Description

Geological Exploration 1000m Hydraulic Core Drilling Rig

Product Description

XY-4A drilling rig is a derivative of XY-4 drilling rig. In addition to maintaining the technical performance, structural characteristics and application of XY-4 drilling rig, it mainly increases the vertical shaft through-hole, and relatively reduces the vertical shaft speed and increases. The vertical shaft torque. This machine is mainly used for exploration of metal and non-metal solid deposits. It is widely used in geology, metallurgy, coal carbon, hydrological wells, engineering and other industries. Core drilling equipment mainly based on diamond and hard alloy drilling. It is also suitable for shallow oil and gas mining, mine tunnel ventilation, drainage and other projects. construction. When the 6-pole motor is replaced, the speed of the vertical shaft of the drilling rig is correspondingly reduced, and it can adapt to construction techniques such as large-diameter foundation piles. XY-4A drilling rig has the advantages of simple and compact structure, reasonable layout, moderate weight, convenient disassembly, wide speed range and strong versatility.

Technical Parameters

Name	Parameter
Drilling Depth	700-1000m
Drill Pipe Diameter	Φ43,Φ50,Φ60mm
Vertical Shaft Speed	Forward:81;150;214;312;250;461;658;957r/min
Vertical Shaft Speed	Reverse:66;201 r/min
Vertical Shaft Torque	4000Nm
Lifting Force of Vertical Shaft	80KN
Feed Force of Vertical Shaft	60KN
Vertical Axis Stroke	600mm
Vertical Shaft Through Hole Diameter	Φ68mm
Hoisting Single Rope Maximum Lifting Force	30mm
Wire Rope Diameter	Φ16mm
Boost Speed	0.82;1.51;2.16;3.14m/s
Move Stroke	520
Power Configuration	Electric Motor Y225S-4(37KW)
Power Configuration	Diesel Engine 4100(40KW)
Dimensions (Length X Width X Height)	2680×1100×1935mm
Weight (Excluding Power)	1990kg
