Lightweight Hydraulic Core Drilling Machine For Mining

Brand Name:	OEM
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	Based on the detailed quotation

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,CE

Product Name:

XY-6B Core Drilling Rig

Dimension(L*W*H):

3700x1300x2175mm

Type:

Core Drilling Rig

Voltage:

380V

Weight:

3800kg

Applicable Industries:

Construction Works

Power Type:

Electric,Diesel Engine

Power:

Electric And Diesel Are Optional

Packaging Details:

Wooden cases standard export package

Supply Ability:

Based on the detailed quotation

Highlight:

Lightweight Mining Core Drilling Machine

Lightweight Hydraulic Core Drilling

2000m Core Drilling Machine

Product Description

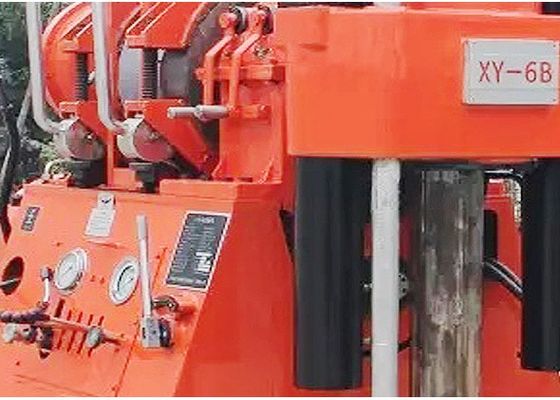

Lightweight Hydraulic Core Drilling Machine For Mining

Product Description:
The XY-6B core drilling rig is mainly used in geology, metallurgy, coal, hydrology, engineering and other industries. Core drilling equipment mainly used for diamond and hard alloy drilling is also suitable for engineering geological exploration, shallow oil and gas Mining, mine tunnel ventilation, drainage, hydrological well drilling, and large-diameter foundation pile construction.
This product can be used for oblique and straight hole drilling. It has simple and compact structure, reasonable layout, light weight, convenient disassembly, reasonable speed range, water brake, and hoisting brake low position operation.
XY-6B drilling rig is one of the rare ideal equipment to meet the needs of the new market.
Technical Parameters:

Drilling Capacity Core Drill	Sorts of Drill Rod		Drill Rod Spec.(mm)	Drilling Depth
	Home Made Drill Rod	Planer In and Out	Φ54×6	2000m
			Φ67×6	1600m
		Thickened Inner	Φ50×5.5	2100m
			Φ60×6	1500m
		Extracting Core With Wire Line	Φ55.5×4.75	2400m
			Φ71×5	1650m
			Φ89×5	1400m
	DCDMA(Diamond Core Drill Manufacturer Association)Made Drill Rod	Thickened Inner	BW	2300m
			NW	1700m
			HW	1200m
		Extracting Core with Wire Line	BQ	2400m
			NQ	2000m
			HQ	1550m
Basic Specifications	Drilling Angle			90~80°(360°)
	Dimension(L×W×H)			3700×1300×2175mm(Diesel Engine)
				3500×1300×2175mm(Electric Motor)
	Weight(Without Power Unit)			3700kg
Rotary Head	I.D of Spindle			Φ116mm
	Rotary Speed of Spindle(Power Speed is 1480r/min)		Forward	96;160;230;339;336;559;804;1178
			Reverse	79;277
	Max.Torque Of Spindle			7200N·m
	Feeding Stroke			720mm
	Max.Feeding Capacity			200KN
	Max.Lifting Capacity			150KN
Hoist	Max.Lifting Capacity(Single Line)			60KN
	Lifting Speed			0.64;1.07;1.54;2.25m/s
	Diameter Of Steel Wire Rope			Φ18.5mm(6×37)
	Capacity Of Drum			120m
Water Brake	Work Rotary Speed			500~700r/min
	Single Balance Speed			3~8m/s
	Single Balance Load			45KN
Oil Pump	Single Gear Oil Pump,Pressure,Displacement			20MPa,20ml/r
Frame	Stroke Of Frame			600mm
Power Unit	Diesel Engine Model R6105P			72KW,2000r/min
	Electric Motor Model Y280S-4			75KW,1480r/min
