| Name: | Rock Diamond Core Mining Drilling Rig Equipment Machine | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Farms |
|---|---|---|---|
| Type: | Core Drilling Rig | Power Type: | Electric |
| Usage: | Water Well | Voltage: | 380V |
| Dimension(L*W*H): | 4500*2000*2700mm | Weight: | 6200kg |
| Drilling Depth: | 600m | Open Hole Diameter: | 325mm |
| End Hole Diameter: | 75mm | Drill Angle: | 90-75° |
| Spindle Speed: | 32-1057 R/min | Spindle Stroke: | 600mm |
| High Light: | XYD-3 Deep Hole Drilling Machine,Hydraulic Mining Core Drilling Machine,Hydraulic Water Well Drilling Rig |
||
XYD-3 Deep Hole Hydraulic Mining Core Drilling Machine
Product Description
Brief Introduction of Core Drilling Rig:

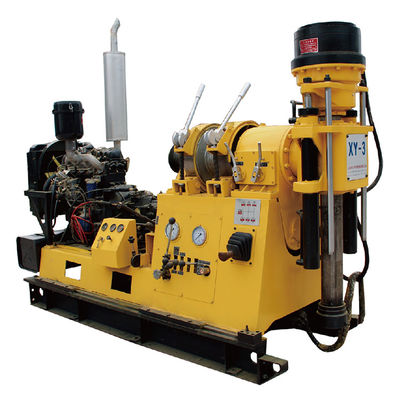

XY-3 series drilling rig is a shallow/medium depth hole spindle type core drilling rig. The machine is mainly used for diamond drilling and able to meet the needs of various drilling technology requests.
It adopts electric motor or diesel engine as power unit.
The rig owns simple structure and is easy to operate.
Main Features of Core Drilling Rig:
1. The rig is equipped with latest MW525 heavy truck transmission, which owns 10 forward gears and 2 reverse gears. The transmission ensures enough reasonable speed range, and can satisfy needs of different drilling technology.
2. The rig’s spindle inner diameter is 96mm,driven by mechanical system, can output big torque. The winch can lift max.3000kg with single line.
3. Hydraulic system controls the feeding pressure and speed of the spindle. The machine is equipped with pressure meter so that the workers can grasp hole situation.
Advantage of Core Drilling Rig:

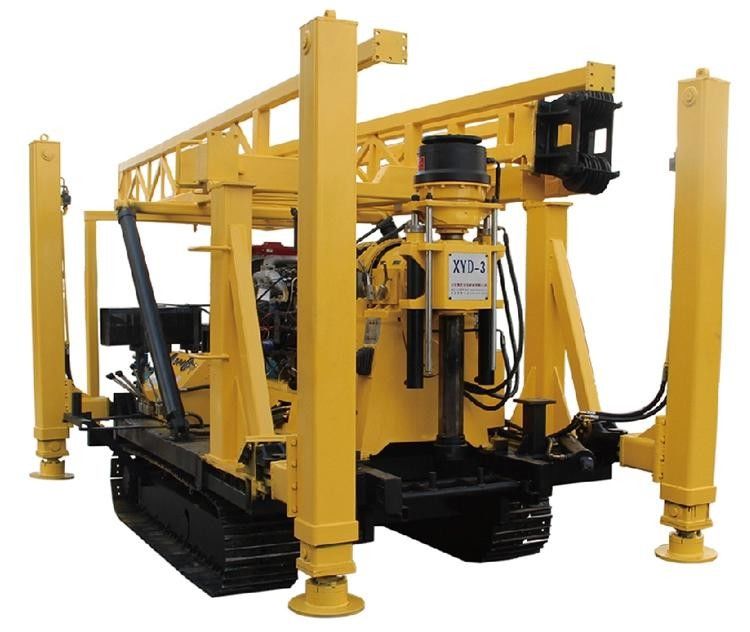

1. To satisfy customers’special requirement, we design below new models based on OC-XY-3 original drilling rig OC-XYX-3 trailer-mounted drilling rig, OC-XYD-3 crawler-mounted self-propelled drilling rig(options: steel crawler and rubber crawler) and OC-XYC-3 truck-mounted drilling rig.
2. The machine can also adapt 1.5m high hydraulic cylinder jacks that can load & unload machine from truck.
3. Hydraulic drill mast saves the workers’labor and improves the working efficiency.
| Technical Parameters of Core Drilling Rig | ||||
| Whole machine technical parameters | Model | OC-XY-3 | OC-XYD-3 | OC-XYX-3 |
| Drilling depth(m) | 600 | 600 | 600 | |
| Open hole diameter(mm) | 325 | 325 | 325 | |
| End hole diameter(mm) | 75 | 75 | 75 | |
| Drill rod diameter(mm) | 42-60 | 42-60 | 42-60 | |
| Drill angle(°) | 90-75 | 90-75 | 90-75 | |
| Matching power(kw) | YN27/39 | YN33GBZ/65 | YN27/39 | |
| Weight without power(kg) | 1800 | 6200 | 3600 | |
| Dimension(m) | 2.6*0.9*1.75 | 4.5*2*2.7 | 2.9*2.56*3.3 | |
| Spindle | Speed(r/min) | 32-1057 | 32-1057 | 32-1057 |
| Stroke(mm) | 600 | 600 | 600 | |
| Winch | Max pull force(kg) | 3000 | 4500 | 3000 |
| Pull speed(m/s) | 0.3-1.9 | 0.3-1.9 | 0.3-1.9 | |
| Rope diameter(mm) | φ12.5 | φ12.5 | φ12.5 | |
| Roll capacity(m) | 65 | 65 | 65 | |
| Drill Mast | Rated load(ton) | 18(Optional) | 18 | 18 |
| Height(m) | 11 | 6.5 | 6.5 | |
