200m Mining Core Drilling Machine

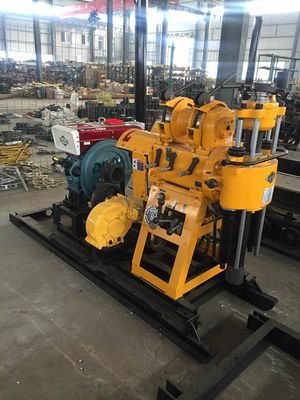

Large Image : 200m Mining Core Drilling Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	OEM
Certification:	ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Wooden cases standard export package
Delivery Time:	10-20 days working days
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	Based on the detailed quotation

Contact Now

Detailed Product Description

Condition:	New	Type:	Core Drilling Rig
Power Type:	Diesel	Usage:	Geological Investigation, Water Well
Dimension(LWH):	27009001500 Mm	Weight:	620 KG
Machinery Test Report:	Provided	Core Components:	Engine
Drilling Depth:	200m	Open Hole Dia.:	325mm
End Hole Dia.:	75mm	Drill Rod Dia.:	42 - 60 Mm
Macthing Power:	14.7 Kw	Spindle Speed:	64\128\287/557 R/min
Uses:	Geological Exploration Core Drilling	Application:	Geothermal Drilling
Highlight:	200m Mining Core Drilling Rig , Geological Exploration Drilling Machine , Rotary Mining Core Drilling Machine

200m Mining Core Drilling Machine

Product Description

Multifunctional HZ200 Diamond Core Mining Drill Rig
The core rotary drilling rig are wide range of lightweight core drilling rigs that are small, lightweight and easy to handle. Suitable for geological survey of railways, water conservancy, bridges, foundations and other buildings, geological core drilling, small grouting holes, blasting holes, water well drilling. According to the formation, diamonds, composite sheets and alloy drill bits are selected for drilling.

With large rotary torque which are better than the other same level drilling machines. The rotary unit has different rotating speed grades, which can meet the requirements in different layers and different drilling projects and very effective in diamond drilling.

Detailed Parameter

Model	HZ - 130Y/130YY	HZ - 180Y/180YY	HZ - 200Y / 200YY
Drilling depth(m)	130	180	200
Open hole dia.(mm)	220	220	325
End hole dia.(mm)	75	75	75
Drill rod dia.(mm)	42 - 60	42 - 60	42 - 60
drill angle(°)	90 - 75	90 - 75	90 - 75
Matching power(kW)	13.2	13.2	14.7
Weight without power(kg)	600 / 740	620 / 750	880 / 970
Dimension(mm)	24008001400	24008001300	27009001500
Speed(r/min)	142 / 285 / 570	130/300/480/730/830/1045	64/128/287/557
Stroke(mm)	450	450	450
Mud pump flow (L/min)	95	95	145
