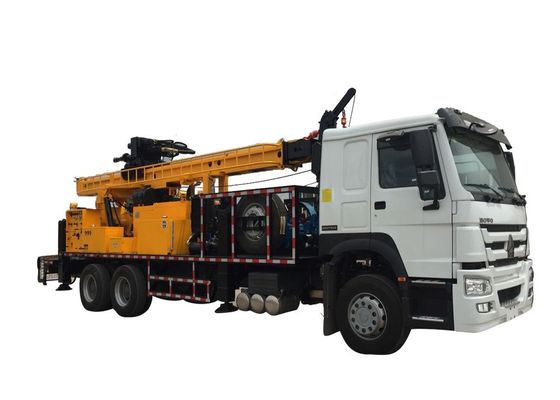

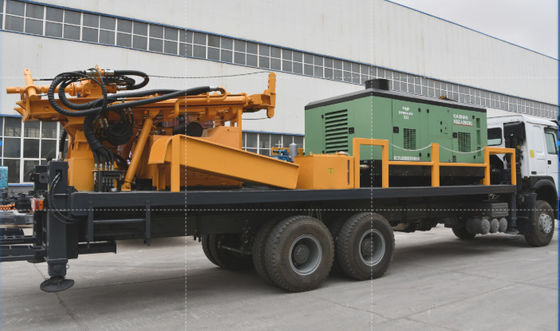

Water Well Truck Mounted Drilling Machine

Water Well Truck Mounted Drilling Machine
Water Well Truck Mounted Drilling Machine Water Well Truck Mounted Drilling Machine

Large Image :  Water Well Truck Mounted Drilling Machine

Product Details:

Place of Origin: CHINA
Brand Name: OEM
Certification: ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden cases standard export package
Delivery Time: 10-20 days working days
Payment Terms: T/T, L/C, T/T, Western Union
Supply Ability: Based on the detailed quotation
Detailed Product Description
Type: Truck Mounted Water Well Drilling Rig Power Type: Diesel
Usage: Water Well Voltage: 24V
Dimension(L*W*H): 11000*2480*7147mm Weight: 22000kgs
Drilling Type: DTH & Mud Rotary Water Hole Diameter: 140-450mm
Water Hole Depth: 600m Drilling Rod: 89,114mm
Drill Rod Length: 4000/4500mm Engine: CMS
Mud Pump: BW450
High Light:

Truck Mounted Rotary Drilling Rig

,

600m Truck Mounted Drilling Rig

,

Hydraulic Water Well Drilling Rig

Water Well Truck Mounted Drilling Machine



JCS600 Multi-functional truck mounted water well drilling rig is a efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.

JCS600 truck mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.



Characteristics



1. The drilling rig can use air DTH Hammer drilling and mud drilling.

2. Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.                                                                                                                                        3.The truck chassis adopts the 8X4 special crane chassis of brand Sinotruck Howo and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.
4. It's a hydraulic rotary drilling rig with directional circulation. It is equipped with BW450/2A mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
5. The power of drilling rig comes from a CMS engine,132kw CMS engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.

6. The rotary head, have two gear, rotation speed is 0-80 and160rpm stepless adjustment and the rotary torque is 6500-13000Nm.



Specification



General

1

Geology drilled



All kinds

2

Drilling Type



DTH & Mud Rotary

3

Drill system and operation



Hydraulic

4

Hole Diameter

mm

Φ140—Φ450

5

Hole Depth

m

600

6

Rotation Torque

Nm

6500    1st Gear

13000   2nd Gear

7

Rotation Speed

rpm

0-80    1st Gear

0-160   2nd Gear

8

Drill pipe diameter

mm

89/114

9

Drill pipe length

mm

4000/4500

10

Axial pressure

T

10

Winch

11

 most. Lifting force

T

32

12

Lifting force of Main winch(Optional)

T

4

13

Lifting force of hoist

T

1.5

14

Length of steel wire rope(tool winch)

m

100

15

Lifting height of tool winch

m

8

Engine

16

Diesel Engine type

CMS

17

Rated Horse power

 Kw

132

18

 Electrical System

24

Volt

Compressor required

19

 Compressor Type

Rotary Screw/Movable

20

Pressure Required

Mpa

1.05—6.9

21

Air consumption

m³/min

16—96

Truck

22

Manufacturer



SINOTRUCK HOWO

23

Model



ZZ1257M5841W

24

Engine



WD615.62

25

Rated Horse power

kw

196

26

Discharge Standard



EU-2

27

Drive type



6*4

28

most.Speed

Km/h

102.9

29

Steering wheel



left/right(Optional)

Mud Pump

30

Type



Hydrulic

31

Model



BW450

32

Stroke

mm

110

33

Displacement

L/Min

450

34

Discharge pressure (Mpa)

Mpa

2-3

35

Suction tube diameter

mm

89

36

Discharge pipe diameter

mm

51

37

Liner Diameter

mm

80

Generator

38

Generator



Optional

Dimension

39

Net Weight

T

22

40

 Shipping Length

mm

10500

41

Shipping Width

mm

2480

42

Shipping Height

mm

3650

43

 Working size(L*W*H)

mm

11000*2480*7147
