Hydraulic 250m Percussive Ground Anchor Drilling Machine

I'm Online Chat Now

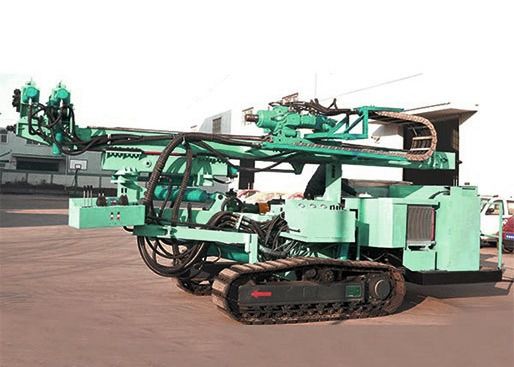

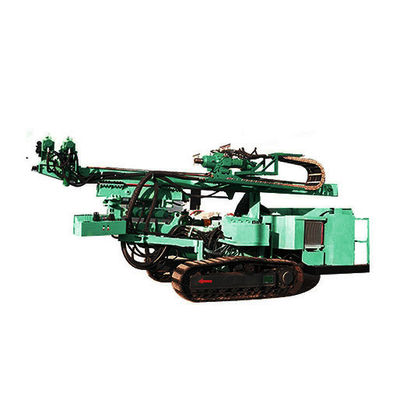

Hydraulic 250m Percussive Ground Anchor Drilling Machine

Hydraulic 250m Percussive Ground Anchor Drilling Machine
Hydraulic 250m Percussive Ground Anchor Drilling Machine Hydraulic 250m Percussive Ground Anchor Drilling Machine

Large Image :  Hydraulic 250m Percussive Ground Anchor Drilling Machine

Product Details:

Place of Origin: CHINA
Brand Name: OEM
Certification: ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden cases standard export package
Delivery Time: 10-20 days working days
Payment Terms: T/T, L/C, T/T, Western Union
Supply Ability: Based on the detailed quotation
Detailed Product Description
Applicable Industries: Farms, Home Use, Construction Works , Energy & Mining Local Service Location: Egypt, Canada, Turkey, United States, Italy, France, Viet Nam, Philippines, Brazil, Peru, Indonesia, Pakistan, India, Mexico, Spain, Thailand, Japan, Morocco, Kenya, Argentina, South Korea, UAE, Algeria, Sri Lanka, Romania, Kyrgyzstan, Nigeria
Showroom Location: None Condition: New
Type: Multi-function Power Type: Electric Motor And Diesel Engine
Usage: Multi-function Voltage: 220V/380V
Dimension(L*W*H): 6500*2200*2650mm Weight: 10.5T
Core Components: Motor, Pump, Bearing Key Selling Points: Easy To Operate
Drilling Depth: 140-250m Drilling Diameter: 89/102./114mm
Final Hole Diameter: 150-350mm Drilling Angle: 0-360°
Maximum Toque: 10000N.m Feed Travel: 3500mm
Output Torque: 1400N.m Diesel Engine: Electric Motor
Capacity Of Bearing: 11T Port: QingDao
High Light:

250m Hydraulic Drilling Machine

,

Anchor Drilling Rig Equipment

,

Hydraulic Drilling Rig Machine

Hydraulic 250m Percussive Ground Anchor Drilling Machine





Product Description





The rig is the overall structure, can be adjusted in three dimensions, achieve 360 ° construction, and is equipped with steel
crawler walking chassis, the machine moving quickly and convenience of construction in different environment, gripper adopts double clamping, can be achieved remove the drill pipe and casing automatically. The device uses high pressure circulating water, and using dynamic impact on double tube rotary drilling construction in sandy pebble formation or unstable fracture formation construction. The efficiency is higher than in the past conventional methods of construction.



Full hydraulic pressure control, solid fuselage structure. Advanced design concepts, monitoring instrument, convenient to
operation, ensure the practical performance. The equipment adopts motor as the main source of power, And equipped with a 18 kw of small diesel engine as power when walking , getting on and off. Total power of 90 kw motor, power of head rotation is 65 kw, so the drilling rig rotary torque is twice as large as the same type, impact and the lifting force is very strong, high working efficiency, and can be multi-usage, give priority to with slope anchoring engineering construction, can also be widely used in construction of deep foundation pit, subway, tunnel, railway and the anchor construction of highway, geological disaster management and a small pile of construction.



The Innovation Points



1. Use chassis of floating structure, can be change Angle of departure of drilling rig and approach angle in a certain range;
2. Using large torque and hydraulic impact rotary power head, can adapt to more than 95% of the formation of construction;
3. The structure of multidimensional connecting rod Angle changed, can make the rig 360 ° in three-dimensional space arbitrarily change the Angle of the borehole;
4. Using electric motor and diesel engine can cope with different construction environment and construction conditions;
5. With double gripper can complete automatic shackle function;
6. Use chain times speed, large hydraulic feed, feed stable and reliable, which can realize double pipe drilling, and following pipe drilling.



Drilling Capacity

drilling angle

drilling diameter

Final hole diameter

drilling depth

Remark

0-360º

dia.89 102 114

dia.150-350mm

140-250m

Clay layer,sand bed,Pebble bed

Drive Rotation Head

Rotation speed

Forward rotation

29r/min

63r/min

58r/min

126r/min



Reverse rotation

29r/min

63r/min

58r/min

126r/min

Strike

Strike pressure

Flow

Frequency

Impact energy



15Mpa

117L/min

1300 times

450j

Maximum Torque

10000N.m

Feed Mechanism

Feed travel

Maximum thrust

Maximum pull

Speed

Pull speed

3500mm

62kn

94kn

4/16.8m/min

6/24m/min

Crawler Chassis

Tractive effort

100KN

Ground bearing

0.068Mpa

Traveling speed

1.5km/h

Climb ability

20º

Capacity of bearing

11t

Crawler specification

450*135*37

Chassis height from the ground

400mm

Crawler length

3965mm

Output torque

1400N.m

Power Machine

Diesel engine

CHANHCHAI Diesel

18kw

2200r/min

walking and transport

Electric Motor

Y160M-4

45+45kw

1480r/min

Normal Construction

Diemension And Weight

Dimensions And Size

6500*2200*2650mm

Weight

10.5t
