Construction Machinery Crawler Mining Core Drilling Machine

I'm Online Chat Now

Construction Machinery Crawler Mining Core Drilling Machine

Construction Machinery Crawler Mining Core Drilling Machine
Construction Machinery Crawler Mining Core Drilling Machine Construction Machinery Crawler Mining Core Drilling Machine Construction Machinery Crawler Mining Core Drilling Machine Construction Machinery Crawler Mining Core Drilling Machine

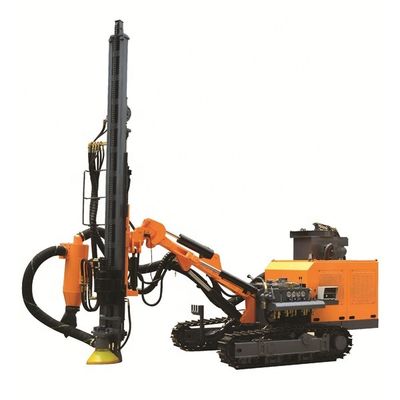

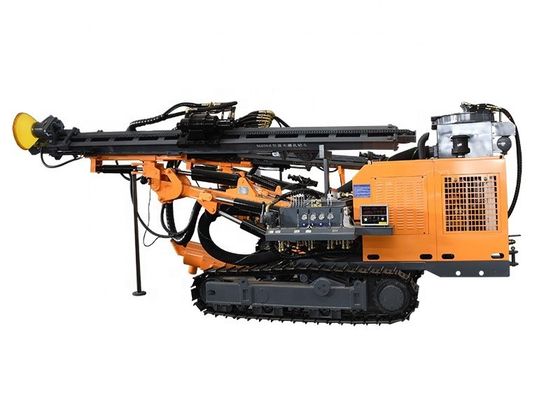

Large Image :  Construction Machinery Crawler Mining Core Drilling Machine

Product Details:

Place of Origin: CHINA
Brand Name: OEM
Certification: ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden cases standard export package
Delivery Time: 10-20 days working days
Payment Terms: T/T, L/C, T/T, Western Union
Supply Ability: Based on the detailed quotation
Detailed Product Description
Applicable Industries: Construction Works, Energy & Mining Condition: New
Power Type: Diesel Usage: Ore
Voltage: 24V Dimension(L*W*H): 6800*2200*2850mm
Weight: 6800kg Dia. Of Hole: 105-152mm
Optium Drilling Depth: 25m Air Consumption: 15-22m3/min
Rotating Speed: 0-100r/min Rotation Torque: 3500N.m
Advance Way: Motor-roller Chain Climbing Ability: 30°
Remarks: Pneumatic & Hydraulic Diesel Engine: 4DKC4G3-100
High Light:

Blast Hole Drilling Machine

,

Crawler Mining Core Drilling Machine

,

Hydraulic Mining Core Drilling Machine

Construction Machinery Crawler Mining Core Drilling Machine



Product Description



Advantage of mine core drill rig

1. Powerful rotating system

2. Stable travelling system

3. famous diesel engine with emission standard national III

4. Blast hole machine

5. Rock hardness : f= 6-20


Usage of mine core drill rig



DTH drilling rig for blast hole drilling ;

This machine for blast hole can used for mine core, Granite,Basalt ,Marble,Quartz or other rocks and stones.



Technical Details Of mine drill rig



Model

KG520 mine core drill rig

KG520H mine core drill rig

Rock rigidity

f=8-12

f=8-12

Dia. Of Hole

φ105-152mm

φ105-152mm

Drilling depth

25m

25m

Rotation speed

0-100RPM

0-100RPM

Rotation torque

3500N.m

3500N.m

Lifting capacity

25000N

25000N

Feeding method

Motor-roller chain

Motor-roller chain

Feeding distance

4150mm

4150mm

Traveling speed

0-4KM/H

0-4KM/H

Climb ability

30°

30°

Ground clearance

440mm

440mm

Total Weight

6800KG

7200KG

Dimension (mm)

6800*2200*2850

6800*2250*2850

Sliding carriage pitch angle

Up:50° Down:135°

Up:50° Down:135°

Sliding carriage swing angle

L.:50°      R.:50°

L.:50°      R.:50°

Drill boom(arm) pitch angle

UP:25°    DOWN:50°

UP:25°    DOWN:50°

Drill boom(arm) swing angle

L:45°     R:45°

L:45°     R:45°

Levelling angle of track

±10°

±10°

Carriage Compensation

900mm

900mm

Power

Diesel engine:4DKC4G3-100
(70KW 2200r/min)

Diesel engine:4DKC4G3-100
(70KW 2200r/min)

Drill rod specification

φ76/φ89*3000mm

φ76/φ89*3000mm

Air consumption

15-22m3/min

15-22m3/min

Max.height of horizontal hole

2850mm

2850mm

Min. height of horizontal hole

350mm

350mm

Dust collector

No

Yes

Suitable air compressor

LGCY-19.5/19

LGCY-19.5/19
