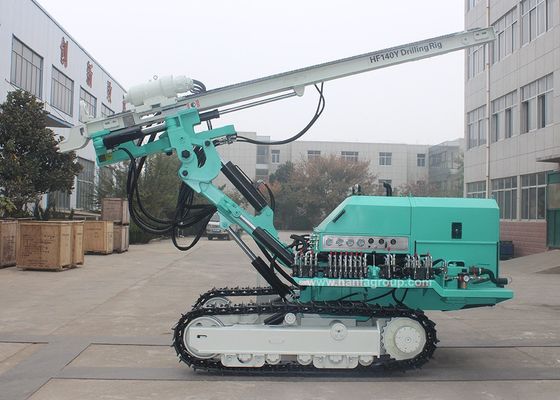

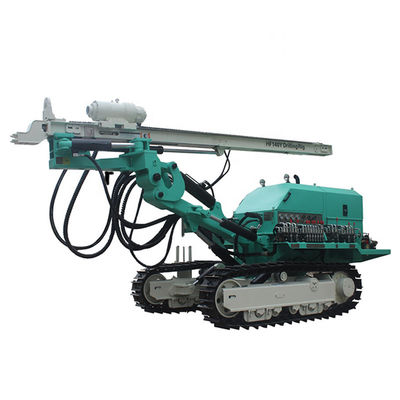

Construction Crawler Blasting Hole Anchor Drilling Machine

Brand Name:	OEM
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	Based on the detailed quotation

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,CE

Type:

DTH Drilling Or Auger Drilling

Power Type:

Diesel

Usage:

Open Mining Or Construction

Voltage:

Production Machine Work

Dimension(L*W*H):

5270*1950*2300(mm)

Weight:

4800kg

Hydraulic Blasting Drilling Rig:

HF140Y

Max Drilling Depth:

60m

Hole Diameter:

115~140mm

Air Pressure:

1.05-2.46Mpa

Air Consumption:

10-20m^3/min

Once Promotion:

3000mm

Rotation Speed:

0-126/min

Working Method:

DTH Drilling Or Auger Drilling

Packaging Details:

Wooden cases standard export package

Supply Ability:

Based on the detailed quotation

Highlight:

Crawler Blast Hole Drilling Machine

Construction Blast Hole Drilling Rig

60m Anchor Drilling Machine

Product Description

Construction Crawler Blasting Hole Anchor Drilling Machine

Product Description

HF140Y High Air Pressure DTH Drill Crawler open with a low energy consumption, high efficiency, easy to transport and field construction superior technical performance, vehicle movement organizations from the hydraulic system to achieve, and only washed the source of the wind machine consumption, resulting in Air Machine Matching saves in a complete set of equipment procurement costs.

Rotary organizations to adopt a new dual-motor turret to make it to the open-air blast drilling operations when drilling large
holes to maintain a strong rotary torque output, dragging air compressor, it has the mobile and flexible and climbing ability,
suitable for rugged venue operations, perforation shift convenience features.
Whole diameter 115~150mm, with a piercing, high efficiency, Maintenance is simple, high reliability, is a mining, highway, water conservancy, power station construction and other construction ideal for drilling rig operations.

Bore diameter	115-140mm
Bore depth	60m
Walk speed	0-2.5kw/h
For rock	F=6-20
Air pressure	1.05-2.46Mpa
Air consumption	10-20m³/min
Once promotion	3000mm
Skid pitch	Up and down total100°
Skid swing angle	Up and down total100°
Boom swing angle	Left and right total 70°
Boom pitch	Up and down total 60°
Host power	56Kw
Rotation speed	0-126/min
Dimension(LWH)	527019502300(mm)
weight	4800Kg

Construction Site

Construction Crawler Blasting Hole Anchor Drilling Machine 0

Construction Crawler Blasting Hole Anchor Drilling Machine 1

Packing&Shipping

Construction Crawler Blasting Hole Anchor Drilling Machine 2
