Anchor Drilling Machine
Created with Pixso.

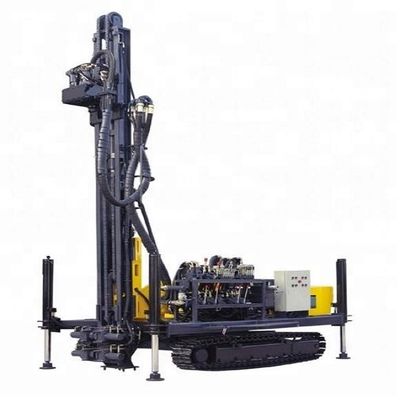

120m Anchor Drilling Machine

120m Anchor Drilling Machine

120m Anchor Drilling Machine

Brand Name: OEM
MOQ: 1 set
Price: Negotiation
Payment Terms: T/T, L/C, T/T, Western Union
Supply Ability: Based on the detailed quotation
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO,CE
Type:
Rotary Drilling Rig
Condition:
New
Power Type:
Electric
Usage:
Construction
Power:
45 Kw
Dimension(L*W*H):
5700 X 2300 X 2300mm
Weight:
7000 Kg
Name:
KMD 120
Packaging Details:
Wooden cases standard export package
Supply Ability:
Based on the detailed quotation
Highlight:

120m Construction Drill Rigs

,

Anchor Drilling Rig Machine

,

Anchor Construction Drilling Equipment

Product Description

120m Anchor Drilling Machine



Products description



This KMD 120 anchor drilling rig is kind of electric crawler type self-guided driller, As light duty ,high efficent , and mutilfucntion

drilling machine, it can be used for the hole drilling in various projects like construction of subway, high building and airport, and

installation of ground source heat pump,This anchor drilling rig can use drill rod,drill rod combination and mud pump/clear water

pump,or drill rod and casting pipe for various kind of hole drilling.



Specification



Walking speed 0~2.5km/h
Electromotor 45kw + 15kw
Ground clearance 245mm
Foreleg cylinder stroke 1000mm
Hole depth 120m
Air pressure 1.05~2.46Mpa
Air consumption 16~30m3/min
Drill rod diameter Φ89mm
drill rod length 3000mm
Hole diameter Φ105~190mm
Pitch diameter 0~93º
Propulsion oil cylinder stroke 1750mm
Rotating speed 100 rpm
Rotation torque 100N¤m
Total weight 7000 kg
Dimension 5700 x 2300 x 2300mm



120m Anchor Drilling Machine 0

 120m Anchor Drilling Machine 1
