600m Borehole Drilling Machine

I'm Online Chat Now

600m Borehole Drilling Machine

600m Borehole Drilling Machine
600m Borehole Drilling Machine 600m Borehole Drilling Machine 600m Borehole Drilling Machine 600m Borehole Drilling Machine

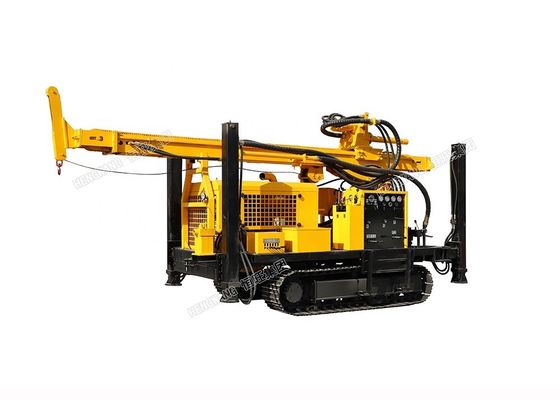

Large Image :  600m Borehole Drilling Machine

Product Details:

Place of Origin: CHINA
Brand Name: OEM
Certification: ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden cases standard export package
Delivery Time: 10-20 days working days
Payment Terms: T/T, L/C, T/T, Western Union
Supply Ability: Based on the detailed quotation
Detailed Product Description
Type: Water Borehole Drilling Machine Power Type: Diesel
Usage: Water Well Voltage: 380V Or Diesel Engine
Dimension(L*W*H): 4100*1800*2400 Mm Weight: 5800kg
Core Components: Engine Application: Water Well Drilling
Drilling Depth: 150-300m Drilling Diameter: 90-273mm
Drill Inclination: 90° Rotator Output Speed: 14-500r/min
Rotary Output Torque: 13428-250N.m Revolver Lift Force: 80KN
Climbing Angle: 15° Input Power: 73kw
Single Package Size : 410X280X240 Cm
High Light:

Hydraulic Borehole Drilling Machine

,

Rotary Borehole Drilling Machine

,

600m Borehole Drilling Rig

Used 600m truck mounted deep borehole water well drilling rig machine for sale





600m Borehole Drilling Machine



Product Description



LH300L series drilling rig is an efficient and versatile drilling and drilling equipment. It is mainly used for drilling wells,agricultural irrigation wells, geothermal air-conditioning holes and other wells. It is especially suitable for water intake projects in mountainous and rock formations. . The efficiency is ten times higher than that of the traditional rotary drilling rig, and the economic benefits created for the users are extremely impressive. In particular, it solves the difficulty of drilling the soil air DTH hammer, the construction problem of the rotary rock drill with hard rock layer, gravel and pebble layer, and can work efficiently under various geological structures, achieving the perfect combination of rhinestone and air drilling.

Main Feature:
1. The pneumatic water well drilling rig is mechanical transmission, the other is hydraulic transmission, and the power is effectively utilized. The overall power loss is small and the drilling cost is low.
2. The water well drilling rig has more positive speed series and 14-500r/min speed range, and the output torque is 13428-250N.m.
3, the rig has a 2 speed reverse speed, easy to deal with accidents.
4. The water well drilling rig adopts long-stroke double-speed mechanism and mechanical power head, and the power head stroke is 3800MM, which is used to improve drilling efficiency and reduce the occurrence of blockage and burning drill accidents.
5. The water well drilling rig adopts double oil pump for oil supply. When drilling, it uses single pump. When lifting the drill,it uses two pumps to merge; the power loss is small and the auxiliary time is short.
6. The rig has advanced structure and reasonable layout, which is convenient for maintenance, maintenance and repair.
7, using the crawler chassis, the leg cylinder stroke 1.5m can be automatically loaded, easy to move and transport.
8. The water well drilling rig is in machinery. Some functional interfaces are reserved in the hydraulic system, and the functions
can be expanded according to the process requirements of different users.



Product Paramenters



Drilling diameter

Ø140- Ø300mm

Drilling depth

150-300m

Drill rod diameter

Ø76,Ø89, Ø102mm

Drill inclination

90°

Rotator output speed

14-500r/min

rotator output torque

7000-9000N.m

Rotator feeding stroke

3600mm

Gyrator pressure

35KN

Revolver lift

80KN

Revolver to increase speed

0-12m/min

walking way/climbing angle

crawler walk/15°

Input power(diesel engine)

73kw

Rated speed

2400r/min

Oil pump flow/pressure

Main pump60/20 Auxiliary pump 60/20

Dimension

4100*1800*2400mm

weight

5800kg

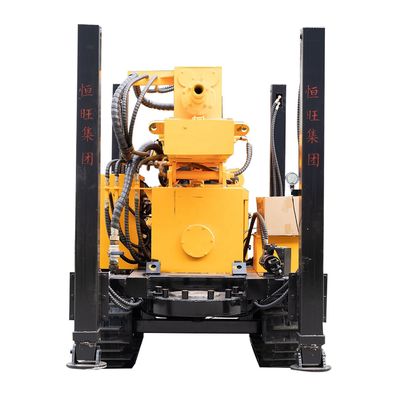

600m Borehole Drilling Machine 0

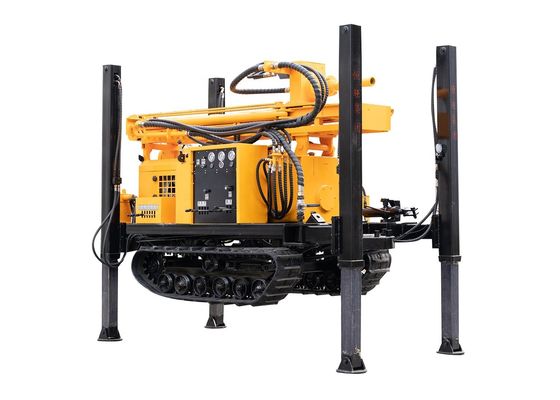

600m Borehole Drilling Machine 1

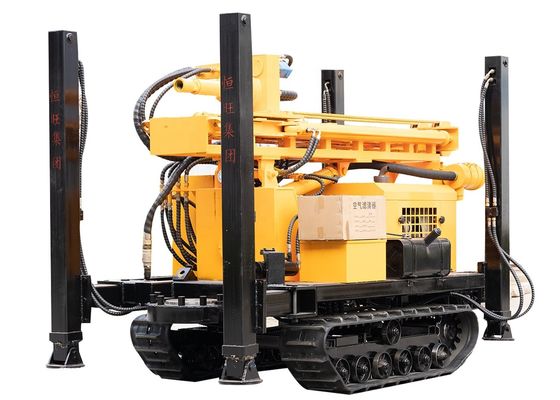

600m Borehole Drilling Machine 2
